dc803 dispenser cell

DC803 feed cell

Automatic dosing cell

The DC803 is the flagship model of Scheugenpflug's portfolio. This automatic dosing machine is capable of high capacity with high quality, even in case of high-mix production requirements. The equipment is available either as a stand alone, inline or rotary table design. Many extra options can be selected, such as a camera recognition and inspection system, code reading, plasma cleaning, implantation, screwing or even marking. We can also offer several types of heat convection or UV curing ovens as a complement to the automatic dosing machine.


  • Easy to use and program
  • Precise 3- or 4-axis CNC system (20 micron setting accuracy - measured on X; Y axis)
  • Speed from 160 to 800 mm/sec
  • Stepper or servo motor
  • Beckhoff Industrial PC-based control
  • Optional material handling solutions: one or two drawers or inline, rotating table design
  • DosP and DosGP dispensing heads can be integrated
  • Scheugenpflug material preparers (A90; A280; A310; LP804) can be connected
  • Needle gauge unit - needle deflection compensation
  • Joystick - for easy manual control
  • Parking glass - needle asphyxiation prevention
  • Needle wiper unit - for sealants
  • Pot life calculation - Mixing stems against stemming
  • Built-in weight measurement - scheduled control of the dosage quantity
  • Work spaces can be designed in different sizes (from 1000 x 8000 mm to 1400 x 1200 mm)
  • Heating of product, pallet, dispensing head or mixing stem
  • Product position or type sensor
  • Camera system for product recognition or batch quality control

Dimensions W × D × W × D:

  • 800 x 800 x 2160 mm
  • 1000 x 800 x 2160 mm
  • 1000 x 1000 x 2160 mm
  • 1200 x 1000 x 2160 mm
  • 1200 x 1200 x 2160 mm
  • 1400 x 1200 x 2160 mm

Power supply: 3 x 400 V~, 50/60 Hz, CEE 16 A

Additional dosing, support functions are available:

  • Convection or UV curing ovens
  • Assembling, inserting or screwing modules
  • Camera inspection
  • Plasma cleaning, surface treatment
  • In combination with material preparation LP804

    An excellent solution for self-leveling materials, such as resin casting

  • Plasma

    Multiple plasma surface pretreatment options can be integrated into the machine

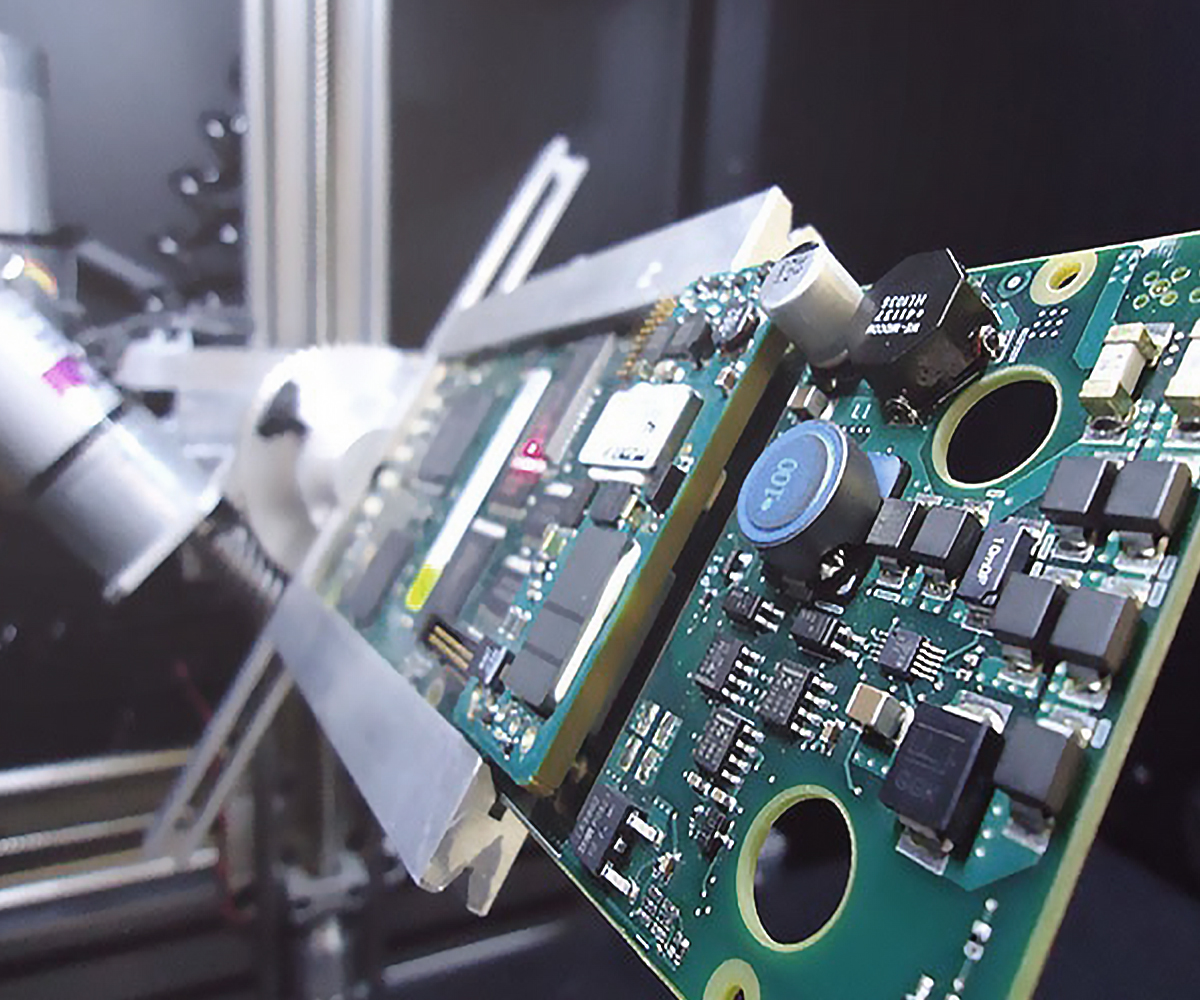

  • Camera

    Built-in visualisation for location point detection or inspection.

  • Gripper

    Custom designed component insertion can be done inside the dosing machine!

  • Curing

    UV and convection ovens for proper curing


Videos

Also for DC803 self-spreading materials

The automatic dispenser cell is an excellent turnkey solution for dispensing self-spreading synthetic resins and glue!

Sealing dosing with CNCell

High-capacity fully automatic dispensing system with individually expandable options.
