LeanCNCell

Stand-alone automatic dosing station

This equipment provides a cost-effective solution for any dispensing task, be it 1D dots, 2D lines or 3D seal contour dispensing, thermal paste application or even atmospheric filling. The unit uses a CNC-controlled axis system to ensure accurate dispensing location. High process safety is ensured by accessories such as a needle weighing station, automatic mixing stem flushing, dispensed quantity weight measurement or heating of the dispensing head and mixing stem.


  • Easy to use and program
  • Precise CNC system for up to 3D dispensing tasks
  • Compact design
  • Joystick
  • Tachymeter unit
  • Parking glass for protection against leaking
  • Automatic pot life calculation
  • Built-in weight measurement
  • Different sizes of working space
  • Product tray, dispensing head and mixing stem heating
  • Product detection sensor for the production of various products
  • DosP and DosGP can be fitted with dispensing heads
  • A90, A220/A280, A310 and LP804 preparation units can be connected

Dimensions (W × D × W × D):

  • From 800 x 800 x 2130 mm,
  • 1200 x 1200 x 2130 mm -ig

Power supply: 3 x 400 V~, 50/60 Hz, CEE 16 A

  • Fire detection unit

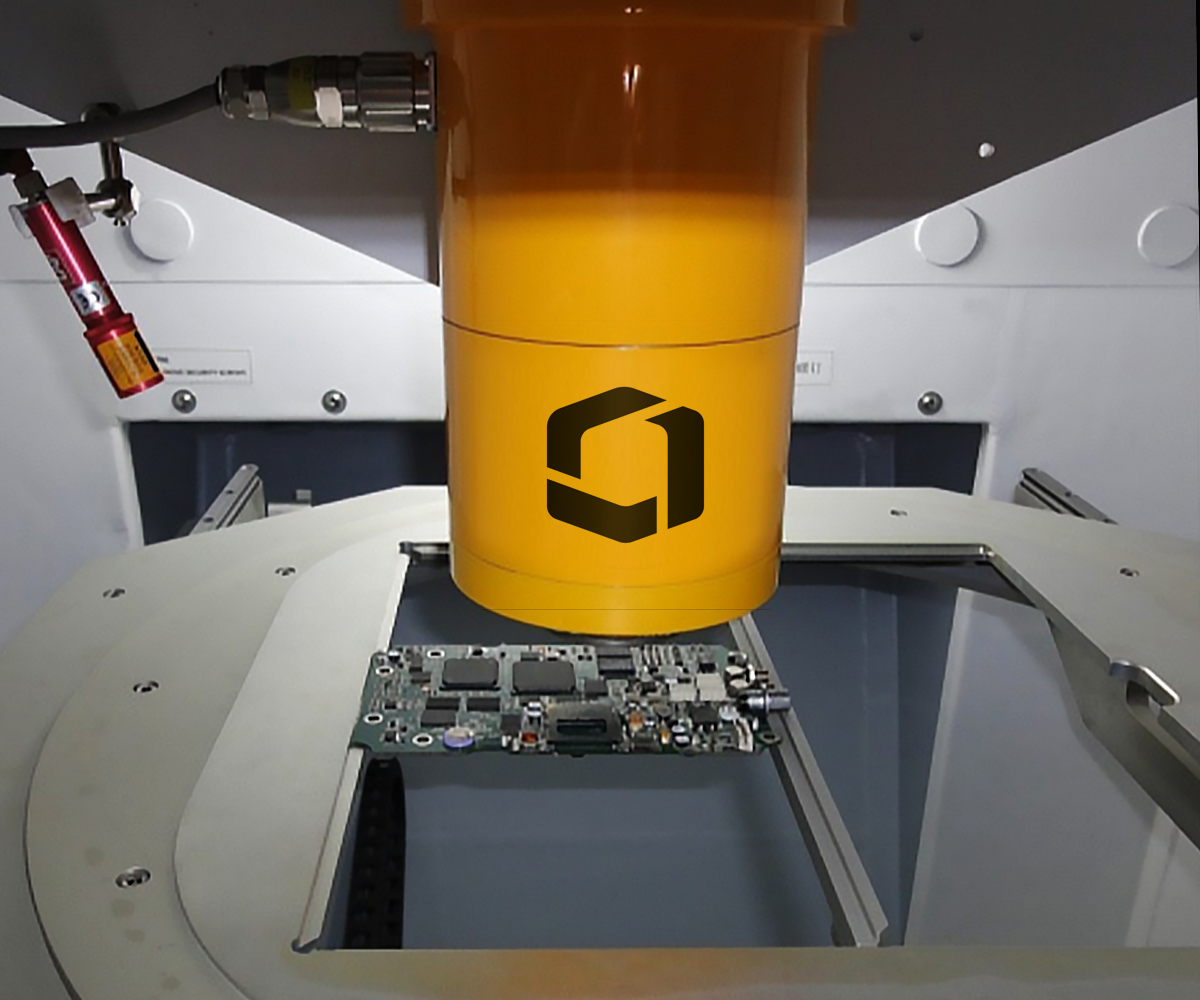

    Laser positioning of the needle and correction of the robot's movement to ensure accurate feeding at all times

  • Product sensors

    Product position detection solutions

  • Joystick

    Easy movement and writing of dispensing programs

  • Balance

    Automatic weighing, to always achieve the exact amount dispensed
