DesktopCell

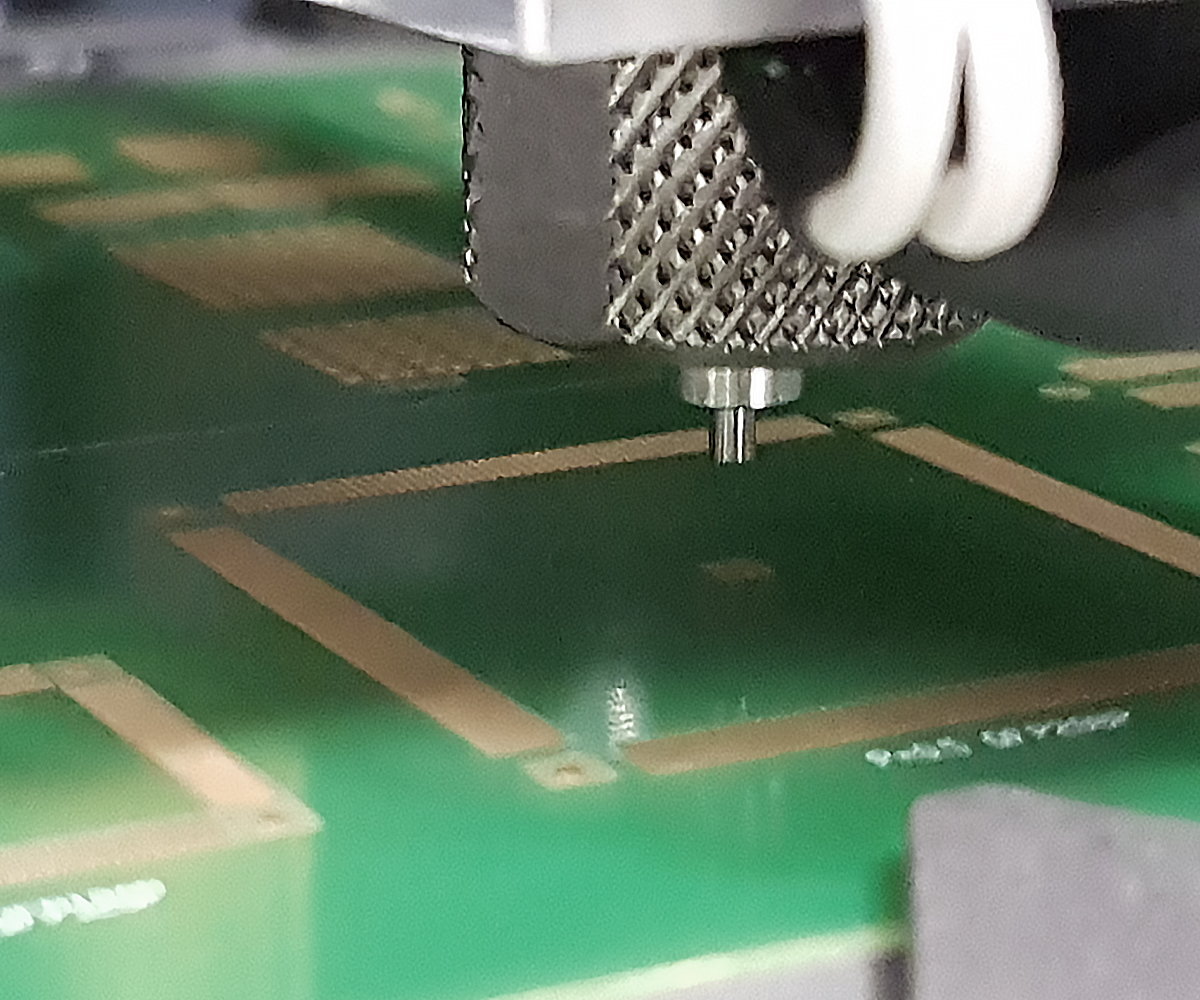

This model integrates Scheugenpflug's dispensing head and control system in a benchtop unit for small to medium series or prototype production tasks. The DesktopCell is suitable for point, line or filling tasks. The control unit of the SCP200+ is capable of controlling the cell, the feeder and the dispensing head.
- Details
- Parameters
- Small and lightweight desktop solution
- Plug & Work (easy to set up)
- Reliable dosing for technology requiring high process stability
- Easy to use touch screen interface
- Short delivery time, low cost
- High precision axes matching CNC systems
- DosP and DosGP dosing heads can be connected
- Materials can be dispensed from tubes or from any Scheugenpflug material feeder
- Dimensions: l × w × h:
- 880 x 1165 x 1400 mm
- Power supply: 3~ 400 V, 50/60 Hz, CEE 16 A
- Active workspace:
- X-axis 500 mm
Y-axis 500 mm
Z-axis 300 mm
-
dosgp
-
dosp
