CompaClean

This equipment is the ideal solution for high-capacity washing of implanted products and solder frames. Thanks to the innovative water treatment, detergent consumption is minimised. The wash baskets move over 68 high-pressure nozzles on the top and bottom to ensure that the products do not overshadow each other, i.e. the detergent reaches all points of the products.

Washing tasks: assembled PCB and solder frame

pbt-works_official_logo

Key features:

  • Multiple configurations (washer-rinse and washer-pre-rinse-rinse)
  • Central swivel arm positioning for double deck wash baskets
  • Connectivity to an external water source
  • Zero Drain, no run-off operability in the production area
  • Detergent concentration measurement - Zestron eye
  • Lighting tower
  • Product and solder frame barcode scanning, traceability

Typical cycle times:

  • Stencil 10-15 minutes
  • Cooking frame 20-30 minutes
compaclean-pcb-cleaning-uniform-spray-in-air-420

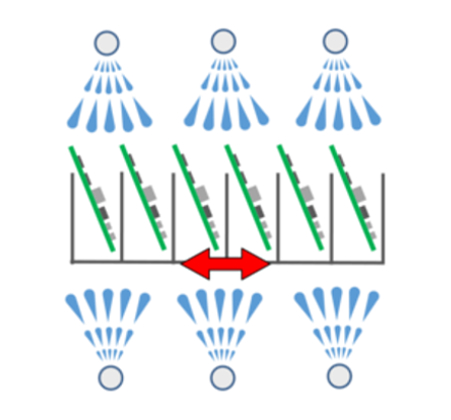

66 high-pressure washing nozzle and oscillating wash basket with minimal shadow effect

compaclean-double-basket-for-cleaning-of-pcb-420

Large capacity wash basket, with capacity for up to 140 panels (eurocard 100x160mm)

Compaclean PCB defluxing machine 840

Available configurations:

Washing circlePre-flushing circuit ; Optional Final rinse cycle

Options:

  • Multiple configurations (washer-rinse and washer-pre-rinse-rinse)
  • Central swivel arm positioning for double deck wash baskets
  • Connectivity to an external water source
  • Zero Drain, no run-off operability in the production area
  • Detergent concentration measurement - Zestron eye
  • Lighting tower
  • Product and solder frame barcode scanning, traceability
