Nutek NTA Board handling machines
Advanced series board handling units for electronics industry
Introduction
The latest NTA range of Nutek panel handling equipment is designed to meet the requirements of Industry 4.0. This series is capable of fast automatic changeovers, integration of any manufacturing execution system (MES), handling large product databases and multiple machine-to-machine (M2M, IPC Hermes-9852) communication. At the same time the user has not been forgotten, the NTA series is now equipped with an intuitive graphical touch screen.
Details
- Stationary magazine platform prepared for loading with AGV/AIV
- AGV top-section conveyor for the AGV compatible loaders and unloaders
- Belt or chain drive
- Remotely accessible high performance PLC
- Manual or automatic width adjustment
- Dual lane option
- Linking conveyors
- Inspection workstations
- Wave soldering inlet, connecting, outlet and return conveyor lines (top or bottom)

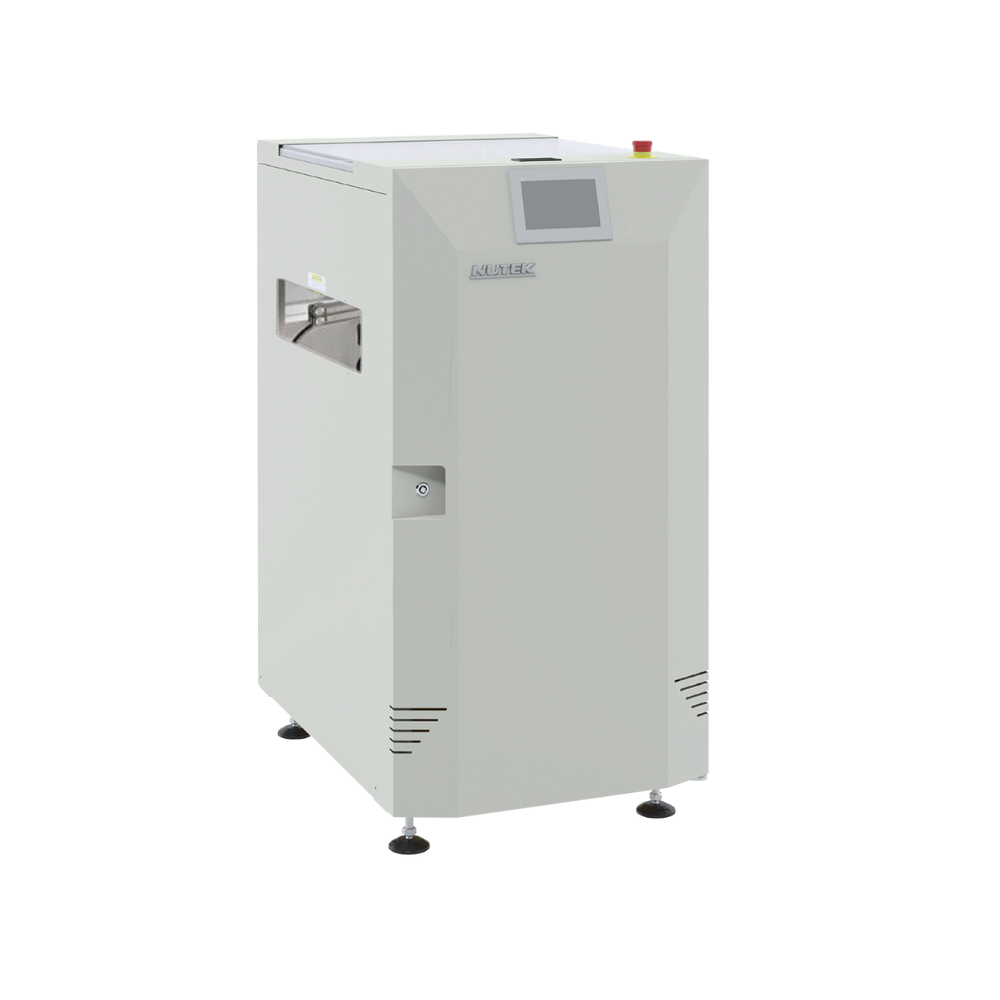

- Coating conveyor tracks with either bottom or top palette return
- Manual gates and telescopic conveyors
- Reject conveyors
- Bare board cleaning conveyor
Product options
Loaders and unloaders
- Single, Dual, Triple or Multi magazine chargers
- Empty panel stacker and destacker
- By pass empty panel dispenser
- More sizes
- AGV compatible models (NTA721; NTA731)
Traffic controllers
- Shuttle units

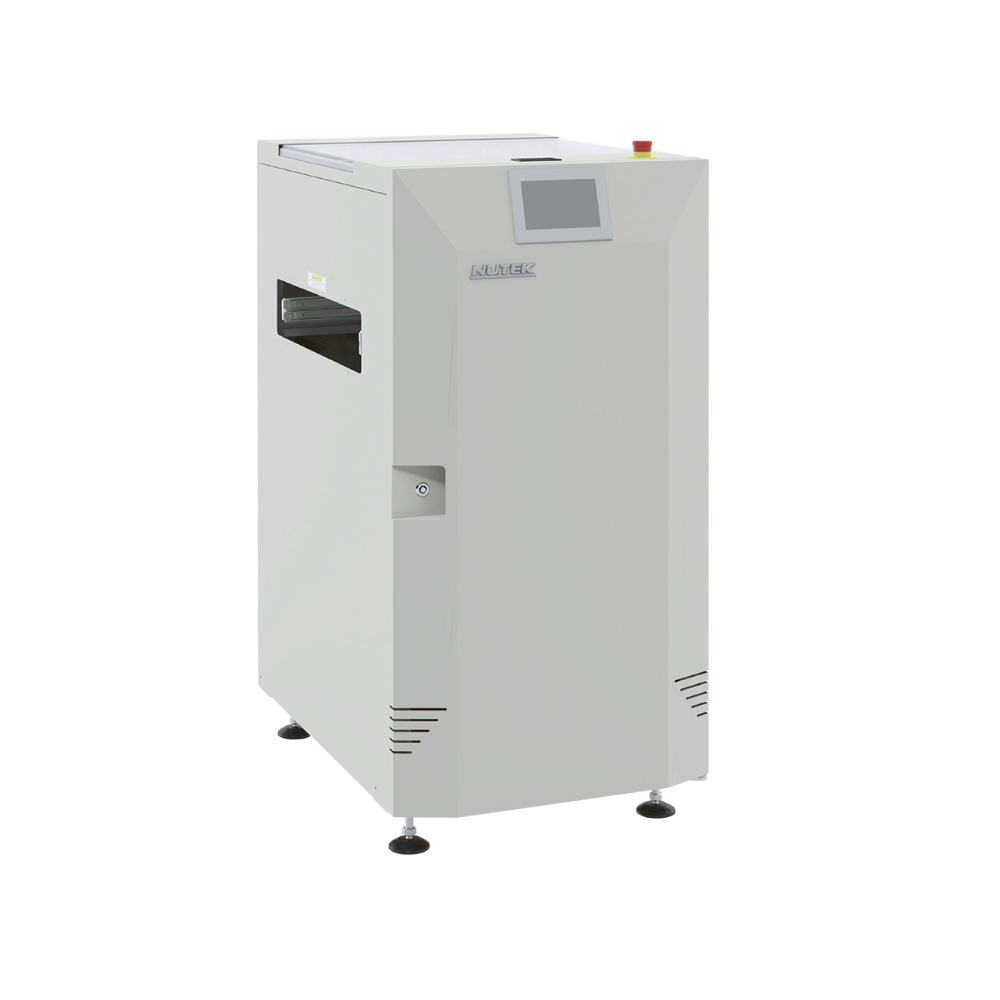

- Inverters
- Rotation conveyor (90 or 180 degrees)
- Lifts
- More sizes
Storage
- FIFO
- LIFO
- Loading and filling in the magazine in the queue
