Musashi dispensing heads and controllers
Musashi heads and controllers can be integrated into any customized production equipment
Introduction
With the different dispensing principles of Musashi Engineering in Japan, any precision fluid dispensing task can be solved, be it bonding, coating, sealing, dispensing solder paste or even greasing. Musashi can dispense materials of any viscosity and properties with extremely high accuracy in the sub-microliter range. Musashi dispensing heads and controllers are available for desktop robot or into automatic dispensing cell mounted. In addition, each dispenser can be integrated into any custom-built customized production equipment.
From ELAS ELAB demoroom on the Musashi ImageMaster machine, you can test any dispensing head on a real application and material to make sure it is suitable for your production task!
Details
- Dispensing heads for any product
- Suited for wide range of applications: precision bonding, sealing, greasing, lacquering, silicone dispensing, SMT bonding, underfill, conductive adhesive, microfilling, thermal paste, solder paste
- Different dosing principles: time-pressure, non-contact jet, eccentric pump, piston or Auger screw.
- Plug & Work dispensing heads and controls
- Musashi table-top robots and automatic dispensing cells
- Solutions that can be integrated into any custom manufacturing equipment
- Multi-channel digital I/O connection
Product Options
Dispensing heads:
- Time-press based dispensing valves
- Programmable pressure correction as the amount of material decreases, ensuring even dosing
- Vacuum material suckback for accurate separation
- Maintenance-free operation
- 999 feeder programs can be stored
- Jet non-contact dispensing heads
- Pneumatic and piezo actuators
- Up to 1000 dot /sec speed
- Low cycle time
- Dosing of uneven surfaces
- Lacquering, gluing, greasing

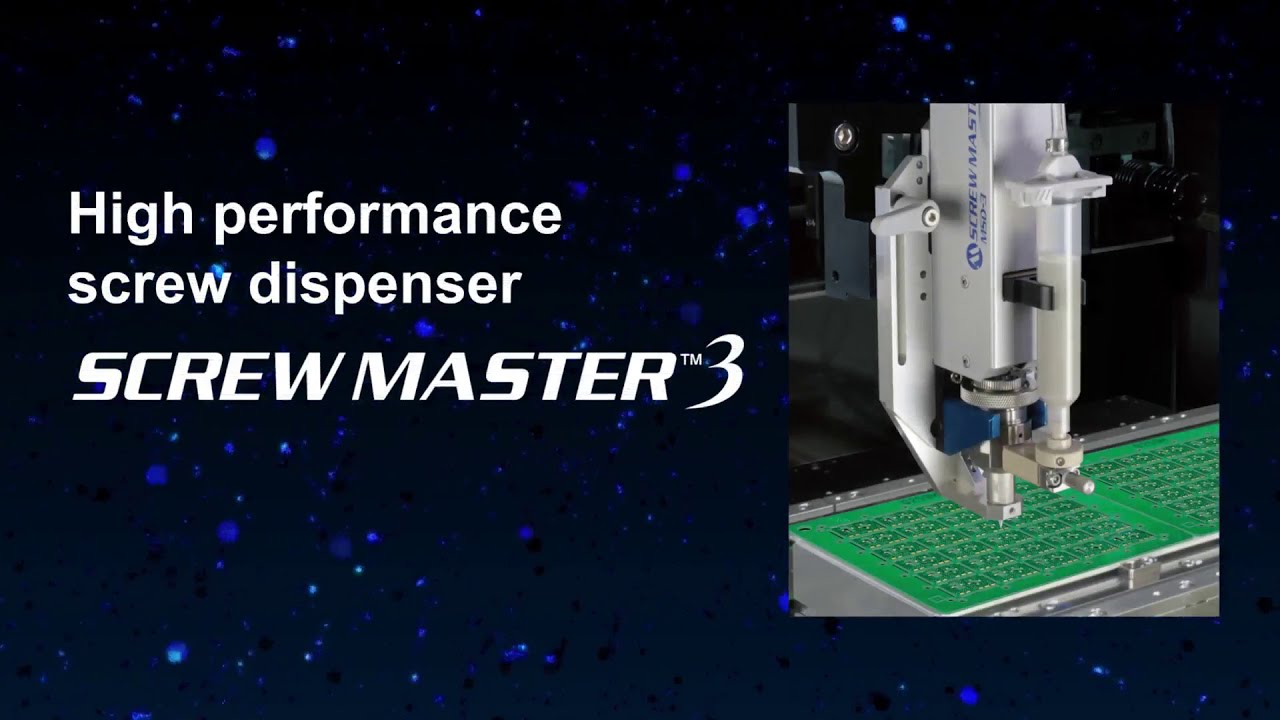

- ScrewMaster Auger screw feeders
- For accurate, uniform and fast dispensing of abrasive materials
- Hot-melt pastes and conductive adhesives
- Measuring master MPP, piston dispensers
- Highly accurate volumetric dosing of quantities
- Multiple sizes from submicron to milliliter range.
- Also for 2 component materials
- MohnoMaster progressive cavitation dispensing head
- Fast and even dispensing of contours
- For both 1 and 2 component materials
- Silicone gasket
- Component fixing silicones
- Dispensing valves
- For low viscosity materials
- Needle, piston and spray valves
- Low investment need
- Dispensing from different sized containers
- Dispensing consumables
- Precision dispensing needles up to 0.01 mm inner diameter
- Metal or plastic
- Inside straight or tapered design
- Straight or curved
- Footed needles
- Multinozzle
- Brushes
- Polished syringes on the inside (even UV protected)
- Plungers
- Tips and headcaps
Image gallery
Product showcase videos
AeroJet
Dispensing varnishes, greases, adhesives in a wide viscosity range.
SuperhiJet
For high-speed, non-contact dispensing of higher viscosity materials (underfill, adhesives, gel varnishes).
MPP-1 piston dispenser
Volume-based dispensing for accurate and repeatable volumes from microlitres.
Mohnomaster
Continuous and even dispensing for sealing, gluing.
MPP3 Duo
Dosing of two-component abrasive thermal conductive pastes in both large and small quantities.
CyberJet
Low viscosity fluids, for example, for flux application. For biotechnological use in immunochromatography.
SV and SVM Sepels
For lubrication and greasing of internal surfaces.
