Totech MSD series
Modular dry cabinet that can be expanded
Introduction

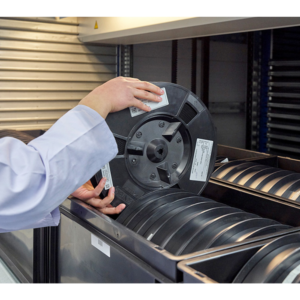

Members of the MSD drying cabinet range are Totech’s most popular models thanks to their powerful U-5000 unit and modularity. The central cabinet can be expanded with extension units as required, doubling or even tripling its dry storage capacity. The Totech MSD series cabinet is ideal for software-traceable storage of reels, trays, stick feeders or even semi-finished and finished products.
Details
- Reels, trays, stick feeders, finished and semi-finished products up to entire magazines can be stored
- Totech patented drying unit U-5000 for setting relative humidity (RH) 0,5%
- Expandability with additional MSD-1223 extension units
- Sensor humidity and temperature measurement (±0.8 RH%)
- Dynamic regeneration
- Digital display
- Light and sound signals
- Economic consumption
- Adjustable polck distribution
- ESD design
- Totech Monitor software for constant cabinet status monitoring and data collection up to simultaneous monitoring of multiple cabinets
- MSL 2.0 full-featured parts tracking software
- Optional heating up to 40C°
- Optional nitrogen atmosphere
Product Options
Integrated MSL parts register system
Parameters
- Capacity: 1200 L per module
- External dimensions: 840 x 2040 x 900 mm (W x D x W x D)
Internal dimensions: - MSD1222 central unit: 830 x 1780 x 730 mm (W x D x W)
- MSD 1223 extension unit: 830 x 1780 x 850 mm (W x D x W)
Weight: 130 kg per module - Shelf load capacity: 50 kg
