Scheugenpflug DosDP(L)2001

New generation dispensing head family

Manufacturers Website Add to info request

Introduction

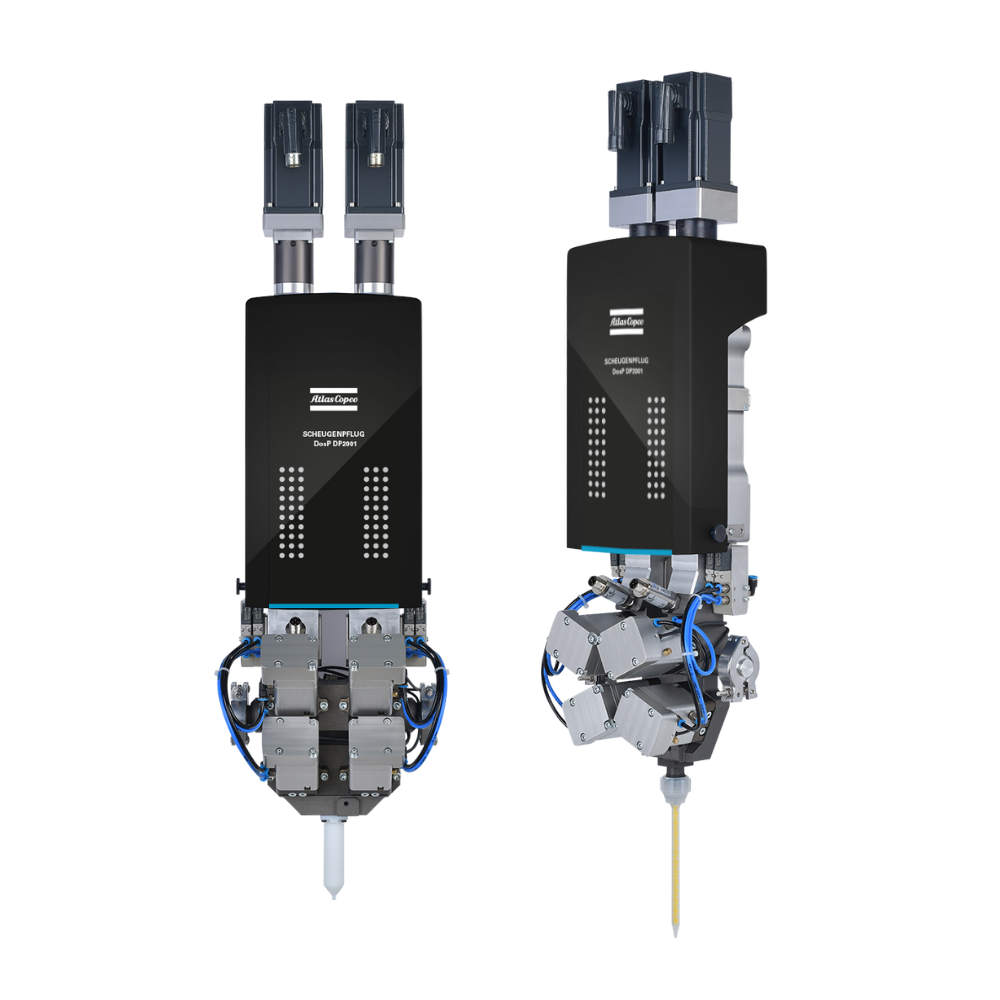

The new Scheugenpflug DosDP(L)2001 dispensing family consists of two models, the DPL2001 optimized for small quantities and the DP2001 developed for high-speed dispensing.

DosP-DPL2001 for small quantities

The DosP-DPL2001 can dispense as small as 3 µl of 1-component materials and 6 µl of two-component materials according to the volumetric piston dosing principle. Thus, the dispensing head is capable of dispensing even small amounts of adhesives, thermal pastes or synthetic resins, meeting the miniaturization requirements of modern electronic assemblies. Furthermore, the new non-displacement valve system is characterized by high reliability and enables the shortest valve switching time. The head is particularly robust, so abrasive materials, e.g. also suitable for dispensing thermal pastes.

DosP-DP2001 for high speed dosing

The DosP-DP2001 dispenser dispenses 1-component substances from 0.06 ml to 20 ml, and 2-component substances from 0.1 to 40 ml. The higher dosing speed is made possible by the new valve system, the shortest valve switching times and the renewed servo drive. The membrane-free dispenser requires low maintenance and is particularly pressure-resistant.

New pressure monitoring, valve position control and software functions further contribute to the system’s individual performance.

Details

For thermal pastes, adhesives, potting materials
Volumetric dosing principle always stable dispensed quantity and mixing ratio
Fast valve opening and closing for shorter cycle times
Valve solutions that are easy to replace and maintain
Head design resistant to heavily charged abrasive material
Continuous process monitoring – dosing pressure measurement: Reliable process monitoring ensures traceability and a high degree of transparency of the dosing process. With the help of new sensors and software, the system constantly monitors the dosing pressure. Deviations of mixing tubes or material viscosity can be detected in the future. In addition, the material-specific metering head pressure is taken into account when developing the dispensing programs, and this can contribute to better start/stop behavior and more accurate contours – a significant advantage, especially in the smallest volume range.
Adjustable mixing ratio

DPL2001

Dispense smaller volumes than ever before
Valve technology without positive displacement
Not only microdots and lines can be dispensed, but the system offers maximum flexibility in terms of dispensing volumes and quantities, even larger quantities can be dispensed with the same configuration

DP2001

10 times faster dosing time, even in the case of highly filled heat-conducting materials, thanks to a renewed, stronger drive system and head design
Dosable quantities between 0.1 ml and 40 ml with the same dosing head design. The new technology is particularly advantageous in combination with the proven piston dosing principle

Product Options

Can be integrated for:
- Metering head with DS803 controller
- Process Module ready to be integrated as part of an integrable axis system as a complete dosing solution that includes both movement and process support functions
- DC803 as part of a complete dosing cell
The following can be connected to the dosing head:
- A90 cartridge feeder
- LP804 preparation trolley for self-spreading materials
- PF(A)803; PFA2001; pail feeding units for pastes and adhesives with high viscosity
- Barrel Agitator Station Materials arriving in 200 liter barrels
