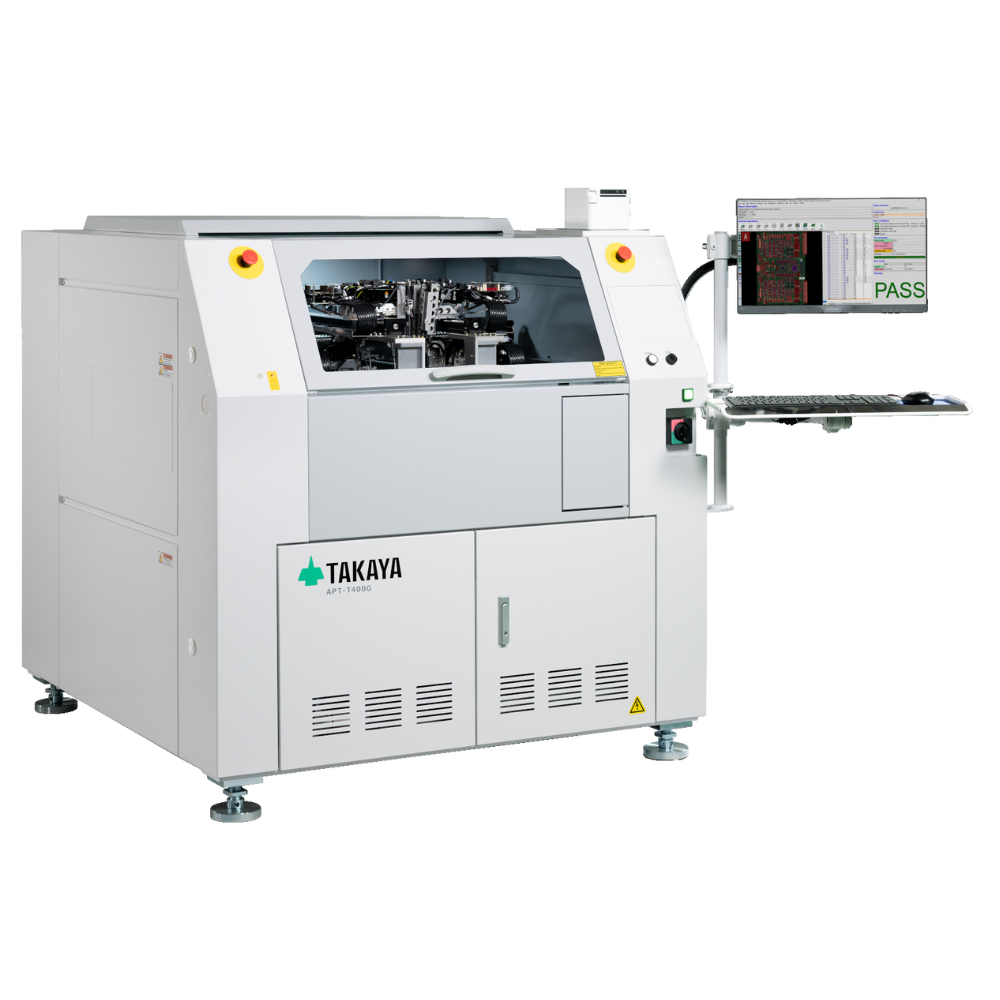

Takaya APT-T400G
Standard Single-sided flying probe
Introduction
This test system has been specifically developed for EMS companies seeking a flexible and cost-effective solution to support prototypes, small production runs, or debugging tasks. It is also an ideal choice for ICT users who are considering a transition to Flying Probe technology but would like to try its advantages with a more accessible investment.
We recommend this type for customers whose products are not classified as critical, yet who still require a reliable, stable, and transparent measurement environment. Its operation and structure follow the logic of high-end machines, and its accuracy falls only slightly short of top-tier systems.
This is an affordable, easy-to-use, and quickly integrable test platform that provides a perfect entry-level solution to the world of Flying Probe technology.
Details
- Flying probe system with 4 moving heads and 6 needles
- 0.05～0.06 sec/measurement speed
- Smallest component PAD to measure on 0402 mil
- Standard RLCD, measurement
- ICOPEN (Capacitive Non-Contact Pin Testing)
- Simple active component test
- Standard CCD camera
- Built-in basic AOI functions
Product options
- Top side single vertical Z-axis
- Top side IC-OPEN sensor
- Marking unit
- Vacuum unit
- XML test log output
- Inline version with automated conveyor system
Parameters
- Maximum size of scalable panel: 540 x 483 mm
- Equipment dimensions: 1400 x 1500 x 1450 mm (W x H x D)
- Weight: 1400 kg
Product showcase videos

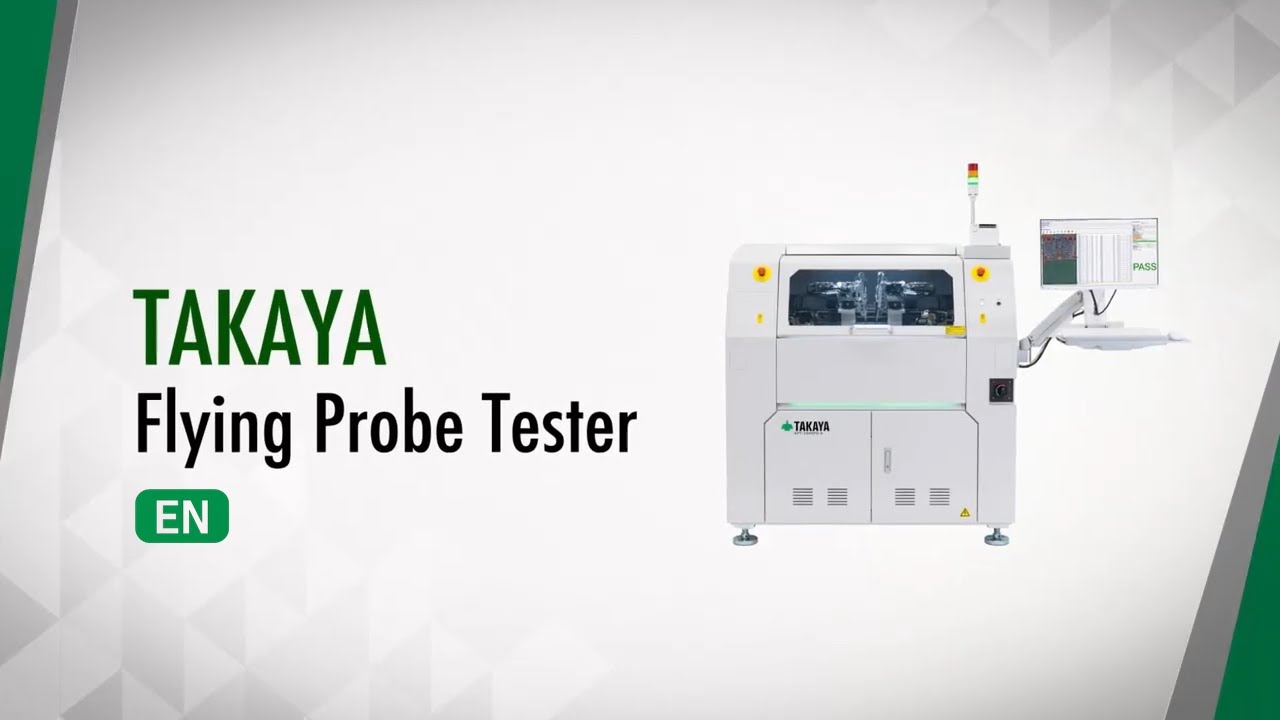

Takaya Flying probe tester (APT series)
APT series reduces testing costs from prototyping to mass production while enhancing assembly quality
