Scheugenpflug Pailfeed

Automatized material feeding for pails

Manufacturers Website Add to info request

Introduction

Scheugenpflug Pailfeed has a patent pending technology for automated bubble free barrel docking for the most common 20 liter pails. Docking is possible with a disposable vacuum follower plate, or with it’s expansion ring equipped variant. (Rare or unusual barrel types can be used with rubber plate docking.) Proper material pressure generated by pneumatically driven pumps. The material feeding distance, between feeding unit and metering head, is doubled compared to the previous model.

Details

For pails (hobbocks)
One or two components versions
Automatic docking and bubble removal without operator interaction
Continuous material supply and pressure control
Material level monitoring
Intuitive, widget-based user interface

There are different types for different media:

PF803: for high viscosity, but non-abrasive media like sealants
PFA803: for high viscosity and abrasive media like thermal gapfillers
PFA2001: for high value, high viscosity, even abrasive media

Product Options

Interruption free, redundant design
Air conditioning
Barcode scanner (1D or 2D) for material management
Audible element for signal tower
ESD safe housing

Parameters

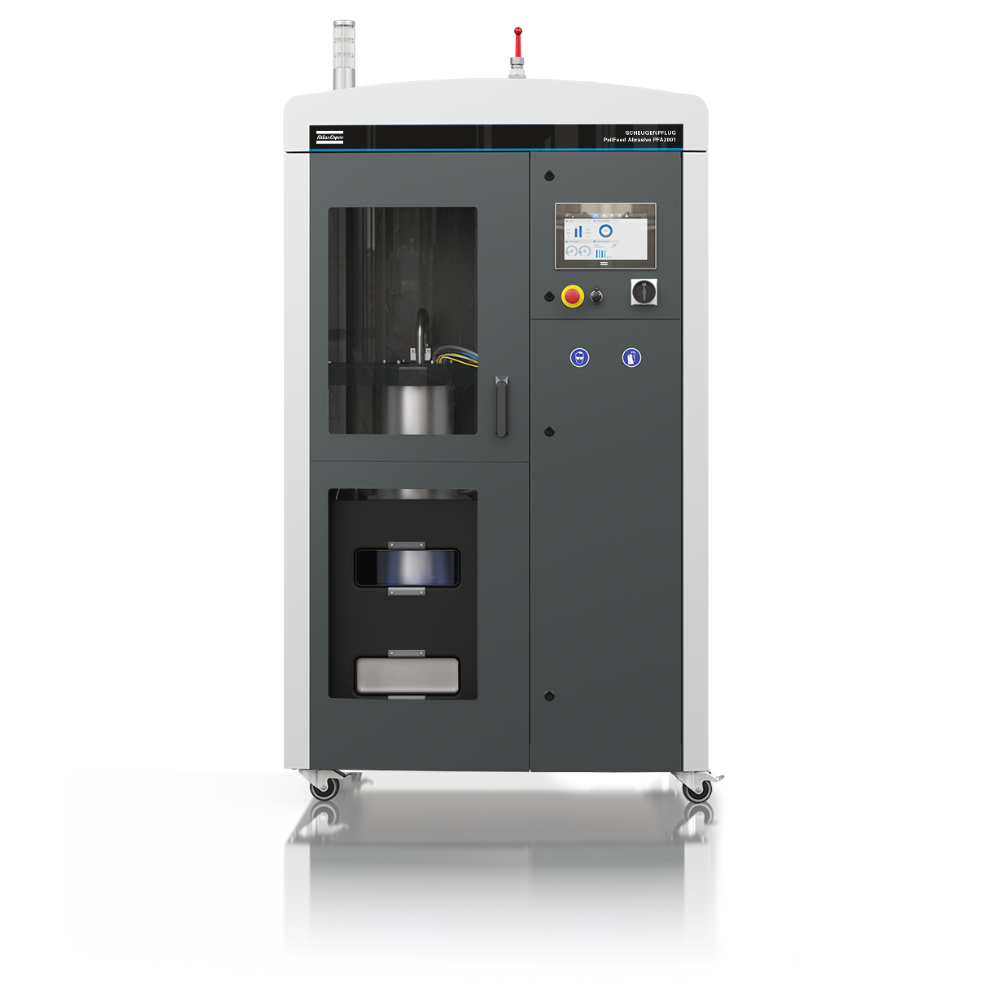

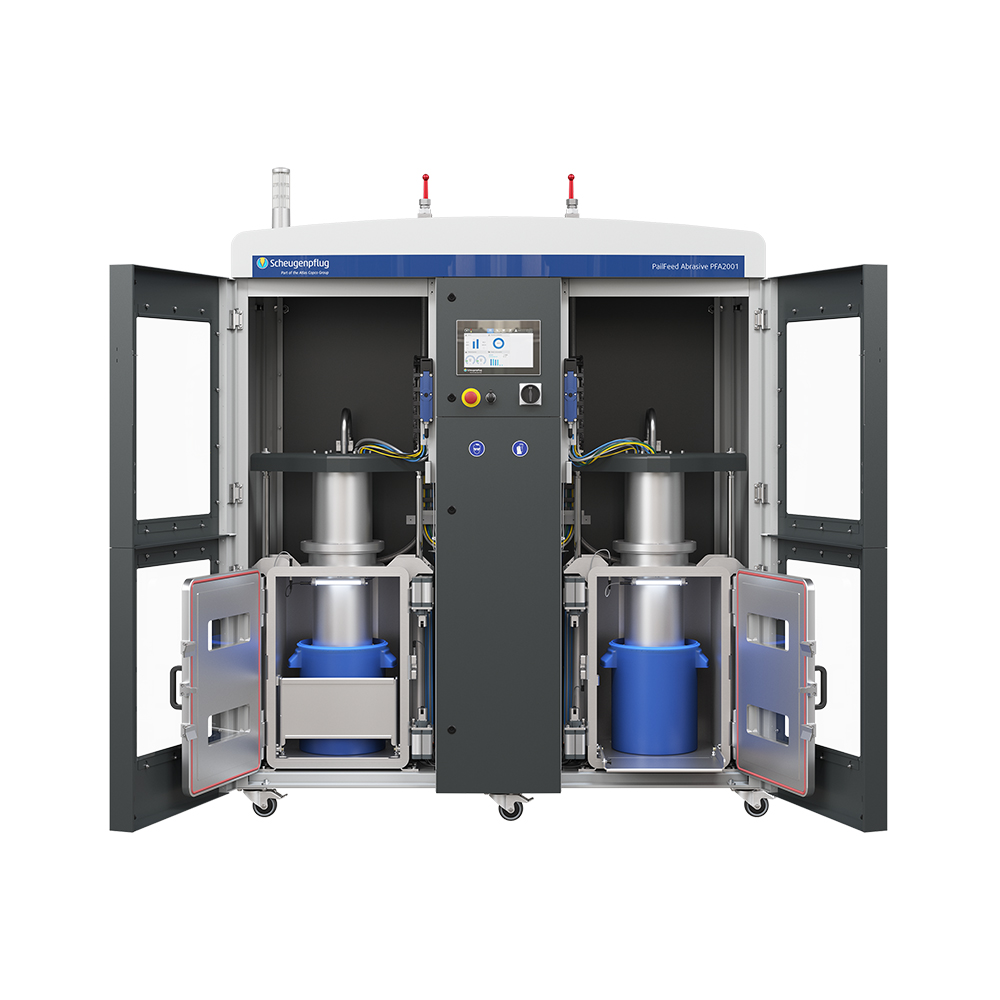

One (1C) or two (2C) component design
- Dimension 1C variant (W x H x D): 1131 x 2116 x 742 mm
- Dimension 2C variant (W x H x D): 1720 x 2116 x 742 mm
Continuous material pressure control
Material level monitoring
Intuitive, widget-based user interface
Flow rate of piston pump per double stroke: 35ml
Pressure ranges:
- L(ow): 7…22 bar
- M(edium): 30-95 bar (Not available for PFA2001.)
- H(igh): 60…150 bar
Standard material line lengths: 3000, 4000, 5000, 6000, 8000, 10000 mm
Viscosity range of dispensing media: 500…3500 Pa·s (10-fold increase compared to the predecessors.)
