Pinnacle Custom systems
customized industrial X-Ray systems
Introduction
About Pinnacle X-Ray Solutions
Pinnacle X-Ray Solutions delivers advanced 2D X-ray and CT technologies designed for maximum flexibility and performance. Their X-ray cabinets are engineered to integrate seamlessly with a wide range of detectors and X-ray tubes, covering energies from 160 kV up to 15 MeV.
A key advantage of their systems is the high-precision CNC-driven motion architecture, which provides extensive freedom of movement for the sample, detector, and X-ray tube. This enables optimal imaging geometry for complex inspection tasks.

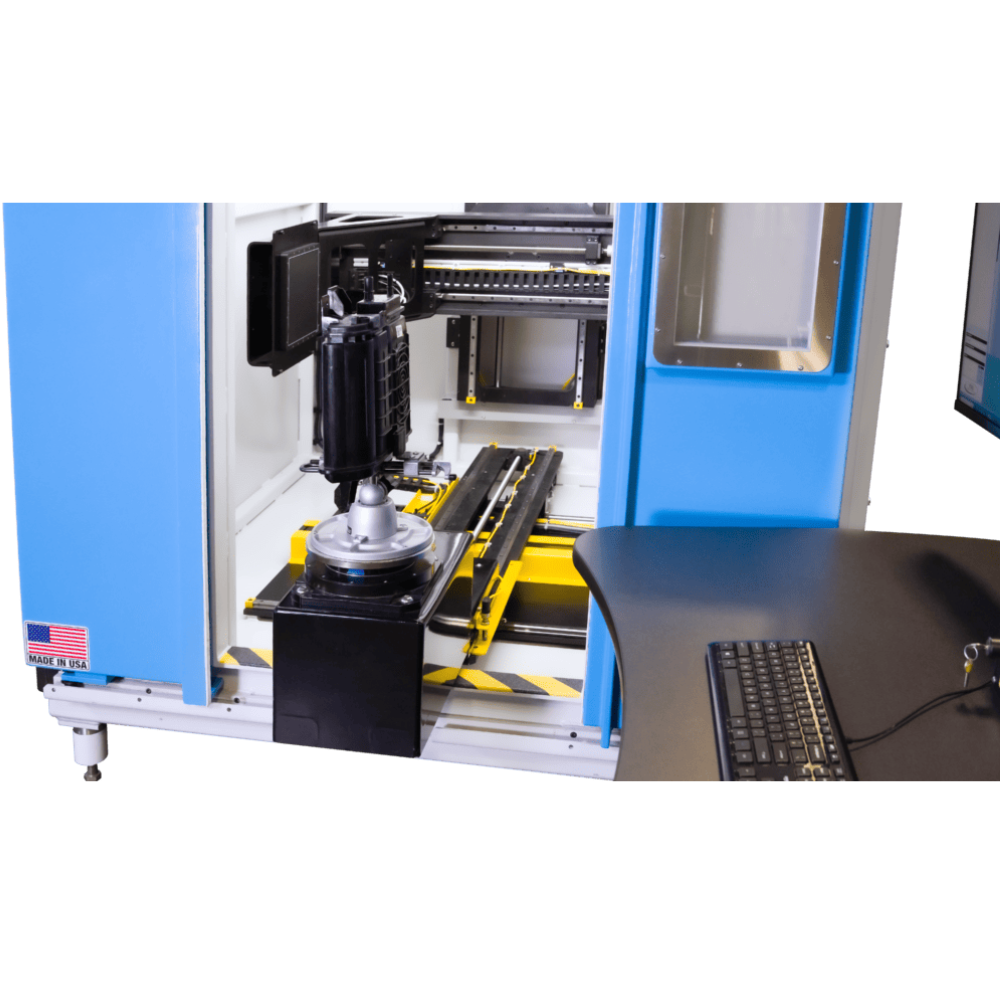

Pinnacle’s unique C-arm solution further expands capability by allowing the inspection of long samples without compromising image quality. For applications with unusual or demanding requirements, the company also offers fully custom-designed X-ray cabins tailored to specific industrial needs.
Because of this exceptional flexibility, Pinnacle X-Ray Solutions’ equipment is deployed across a wide range of industries—including foundry operations, aerospace quality assurance—supporting critical inspection and evaluation processes.
Details
Gantrys

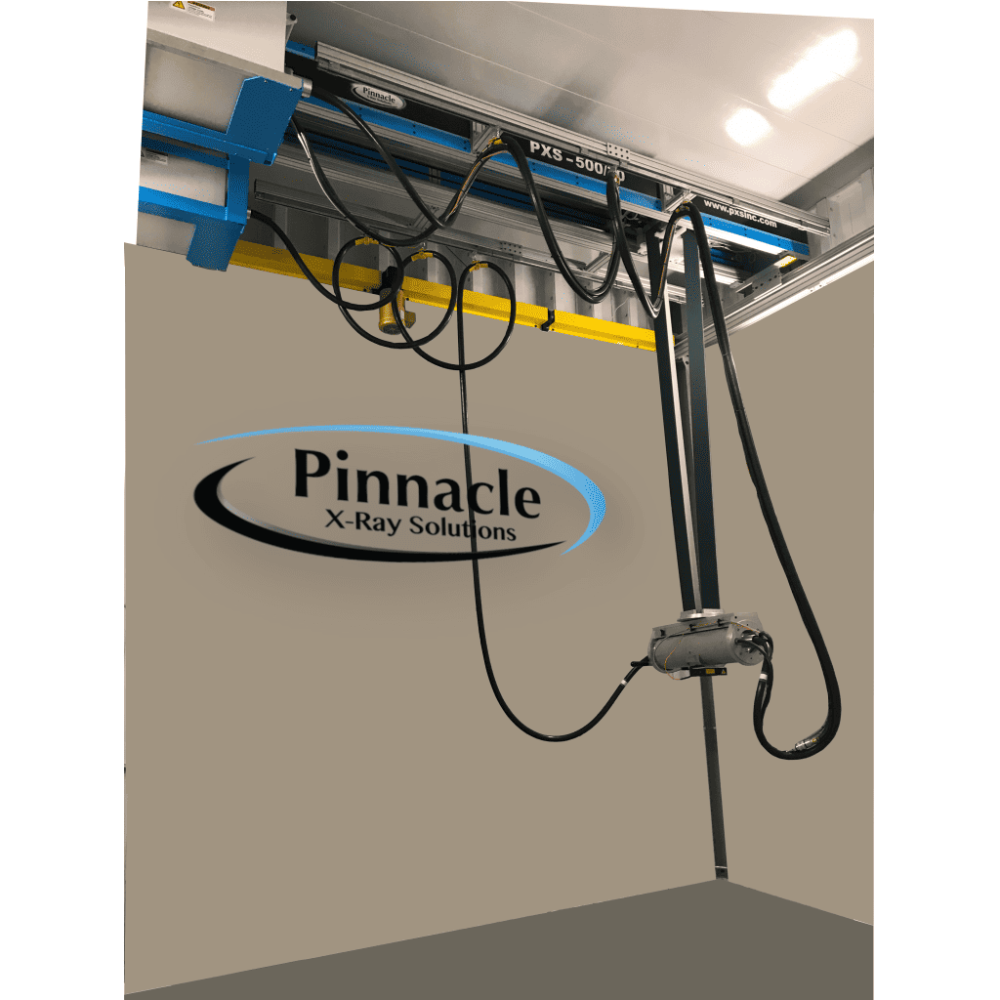

- Belt Gantry

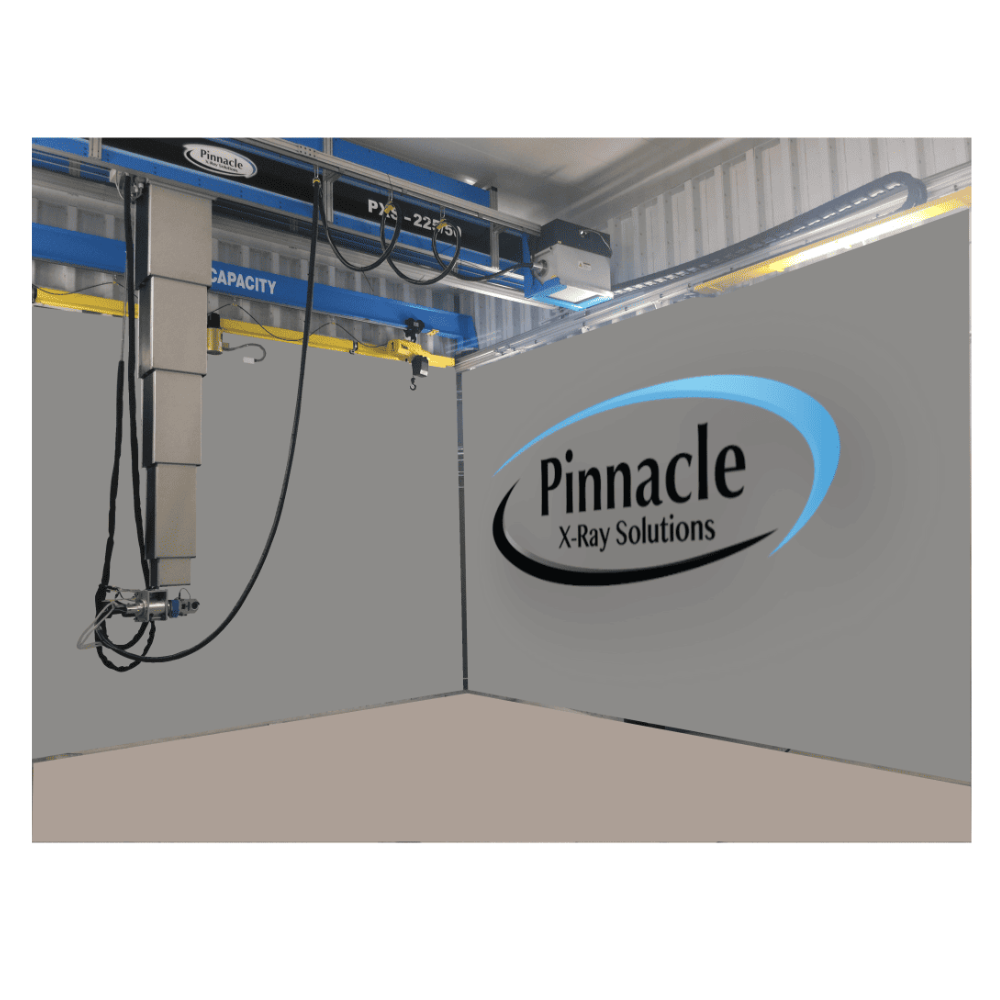

- Telescopic Gantry

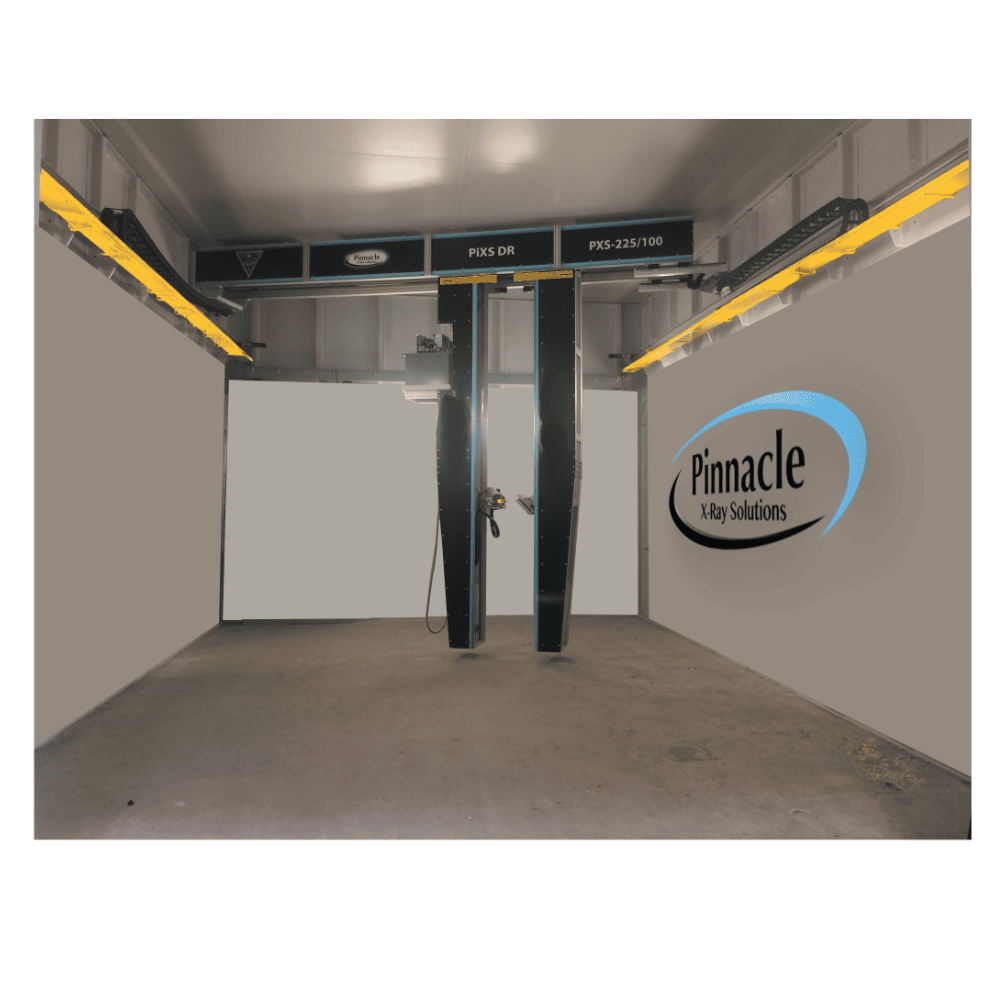

- Tower Gantry
Pinnacle offers gantry systems with new of for existing vaults.
Robotic
- PXS-RPL
- PXS-RBM
- PXS-RPM
- PXS-RCM
- PXS-RDM
Pinnacle offers 2D and 3D systems with robots in various configurations.
Inline systems

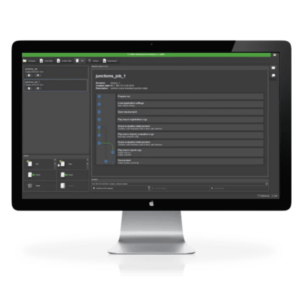

Pinnacle can provide custom solutions to interface with existing or new production systems. Whatever the solution might be, 2D X-ray or CT our systems can be integrated in the production flow.
Clean Sheet Product
Pinnacle is your #1 provider when is comes to customized industrial X-Ray system. If you can’t find a product listed under the product section Pinnacle can make it happen. With the mechanical, electrical and application team Pinnacle has the ability to design, manufacture, deliver and service equipment that does exactly what your application requires.
Talk to us about your application.
Image gallery
