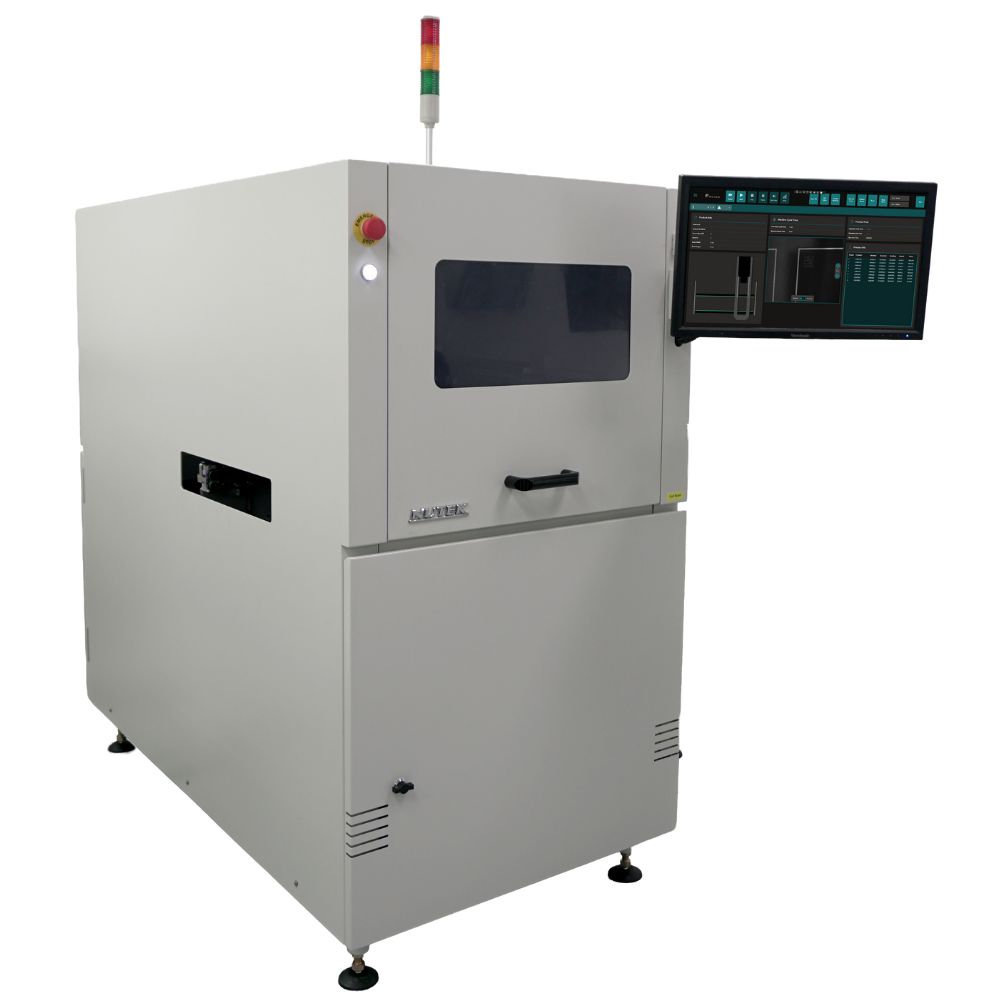

Nutek Laser Marking System S7
New, more accurate and fast laser marking system

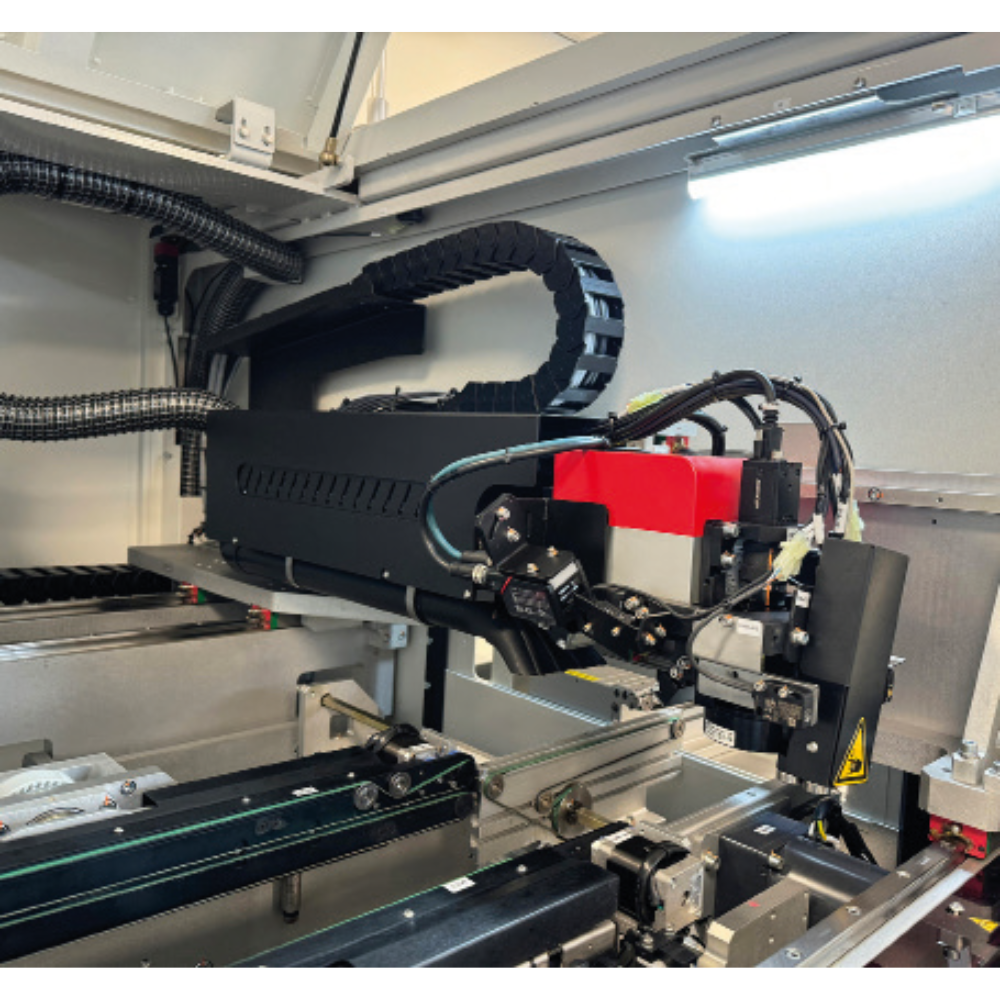

Introduction
The Nutek laser marking system S7 unit is designed to accurately mark PCB’s within a production line or SERIES
can be used as a stand alone cell. A “flying laser” concept is used which
means that the PCB is locked in the marking position while the CO2 laser is
moved using servo controlled X-Y axis. The number of markings and their
positions are easily programmed in WindowsTM based software.
An optional integrated inverter is available for double sided marking.
Details
- Variable position PCB stopper. (mounted on X-Y gantry)
- Scanner Decoding after mark (Keyence SR-X300W)
- Synchronous PCB transfer in/out
- Capability to mark text, barcodes, 2D codes and graphics
- Conveyor width adjustment using hand crank
- Rigid machine structure with large access doors
- PCB side clamping
- Mechanical PCB lift for constant focal point
- Quick product change-over
- Selectable by-pass operation
- Uninterruptible power supply (UPS)
- Led-towerlight display for machine status
- Renewed Human Machine Interface (HMI – 2025)
- CE certified
- Area marking & Decoding
Options
- Program controlled conveyor width adjustment
- PCB orientation check
- Fiducial recognition and position alignment.
- Double-sided marking using integrated inverter
- High speed inverter
- Bad marking recognition. (x-out)
- Database- and network connection
- Fiber laser
- Fume extraction unit. (external, 1000 VA max.)

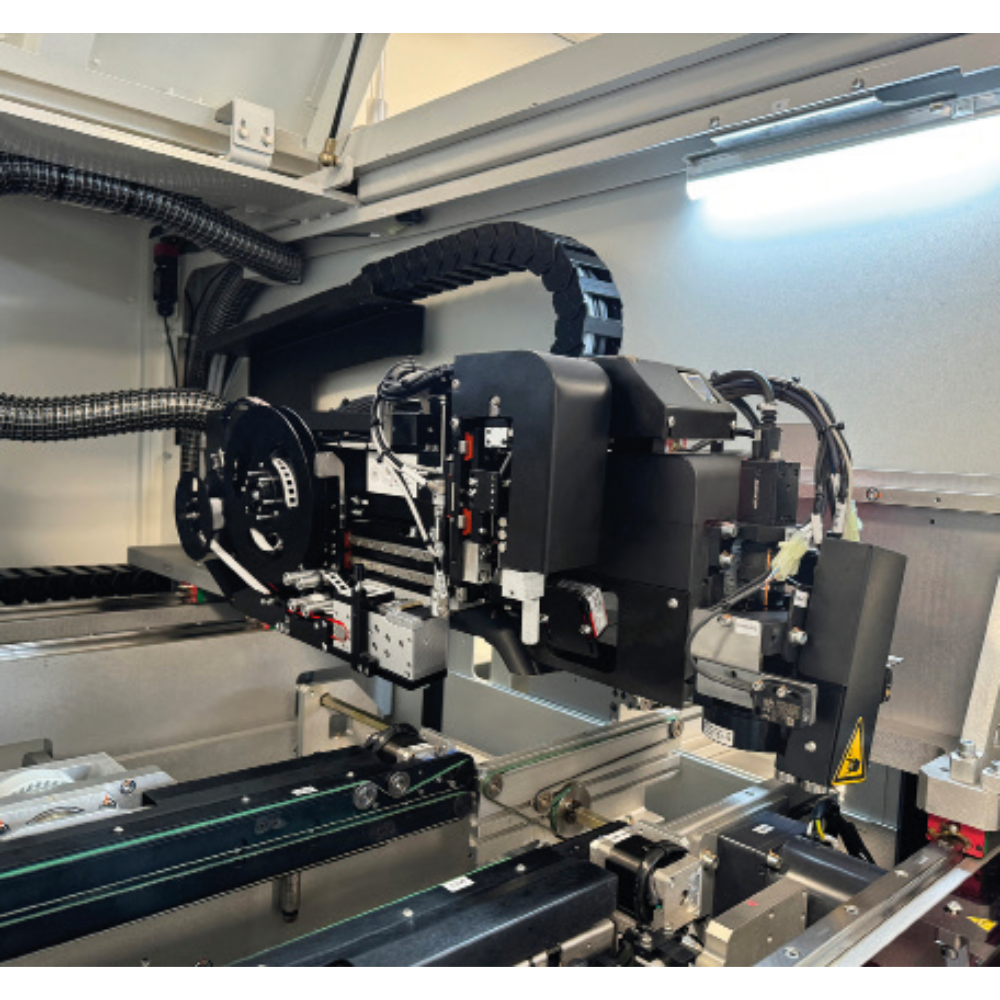

- Label feeder module
- 2D Grading
- Offline Programming
Other options are available on request
Parameters
- Laser type CO2, 10 Watt, air cooled
- Wave length 10.63 μm
- Laser class Class 4
- Housing class Class 1
- Marking area 98 x 98 mm per position,
- 460 x 460 mm total coverage*
- Cell size ≥ 0,127 mm (5 mil)
- Conveyor type 3 mm ESD edge belt
- Conveyor speed 24 m/min
- System software Windows
- Network interface Ethernet
- Monitor 21” touchscreen monitor
- PCB transfer height 950 mm ± 25 mm*
- Component clearance Top 50 mm, bottom 30 mm*
- Conveyor flow direction Left to right*
- Conveyor interface SMEMA*
- Colour RAL9002*
- Power supply 230 VAC/50 Hz/1 Ph
- Power consumption 1610 VA max.
- (fume extraction included)
- Air supply 5 bar
- Air consumption 20 ltr/min max.
- Noise level Max. 65 dB

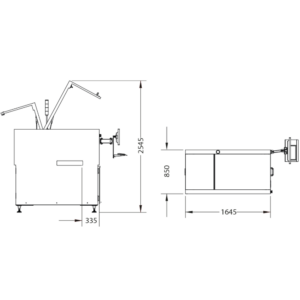

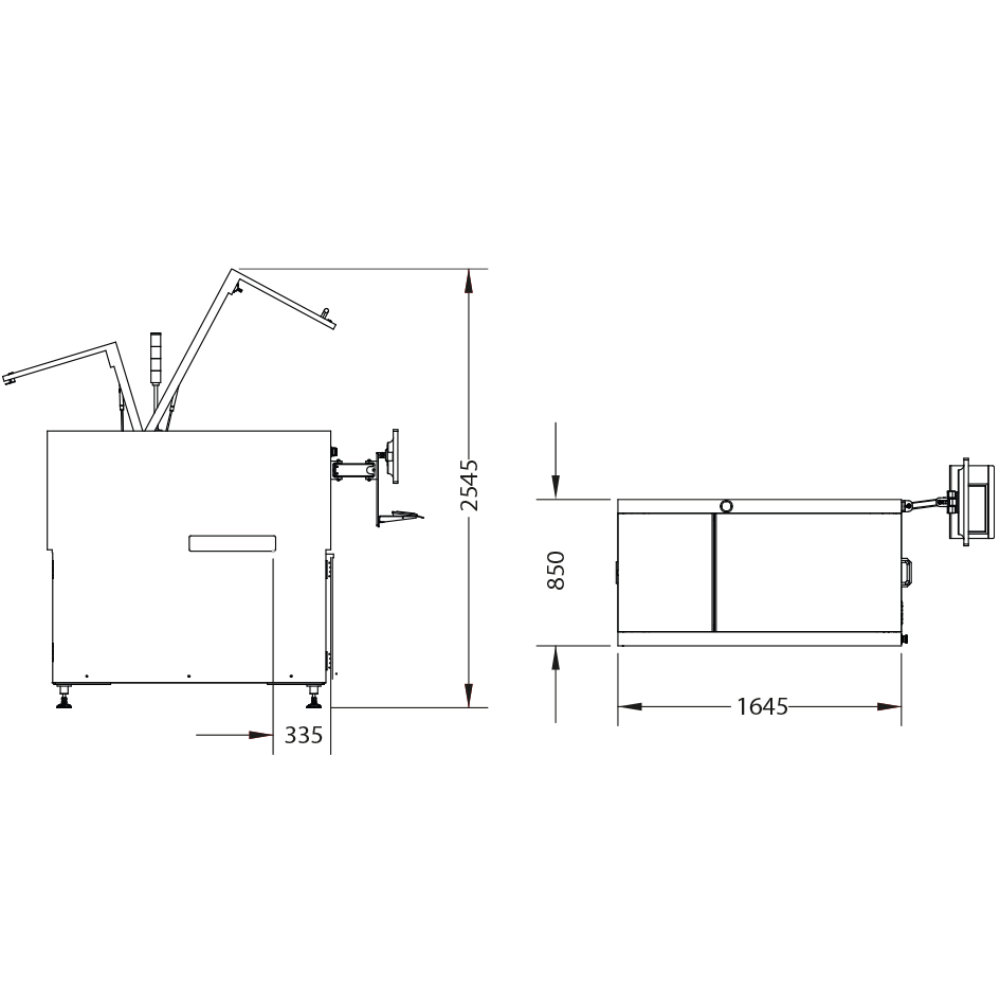

Machine sizes:
- Machine L x W x H (mm) 850 x 1645 x 1600
- Weight (Kg) 800
- Applicable PCB Length (mm) 80 – 508
- Applicable PCB Width (mm) 65 – 460
- PCB thickness (mm) 0.6 – 4
- Fixed rail to front (A) (mm) 335
Image gallery
Product showcase videos

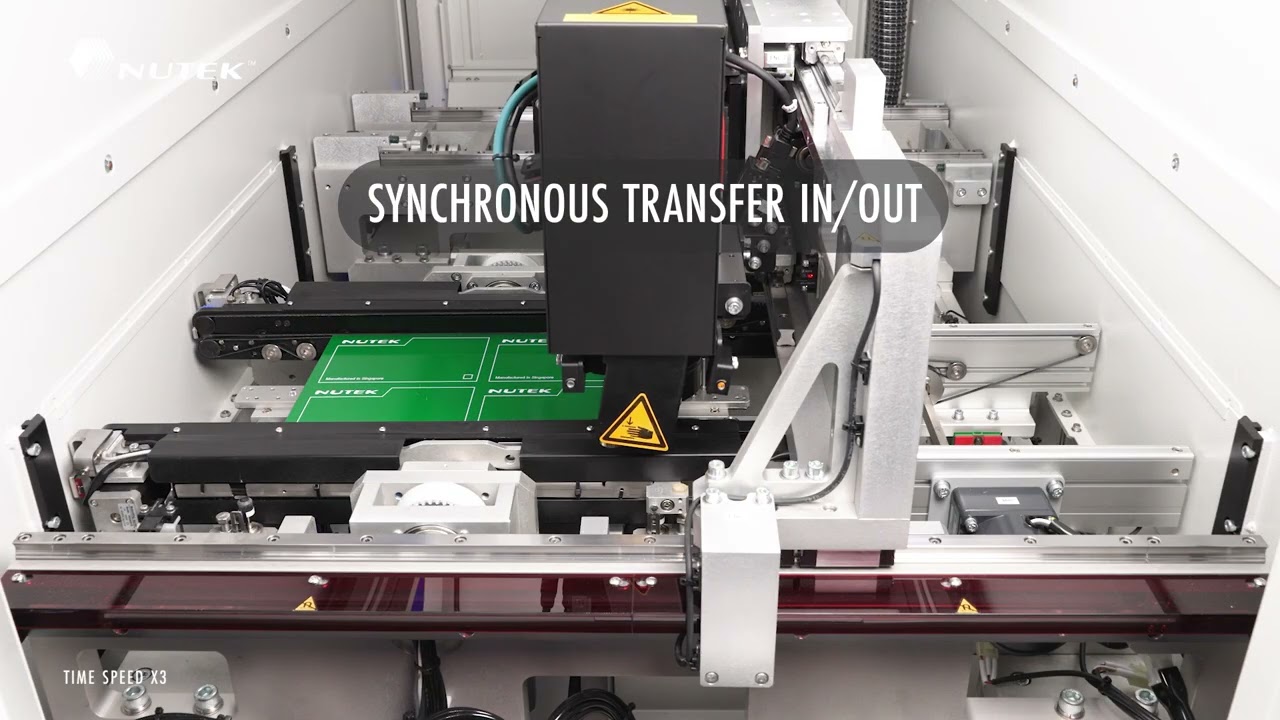

Nutek new laser marking system LMC-S7
New LMC-S7 with variable position PCB stopper, synchronous PCB transfer in/out and Renewed Human Machine Interface (HMI - 2025)
