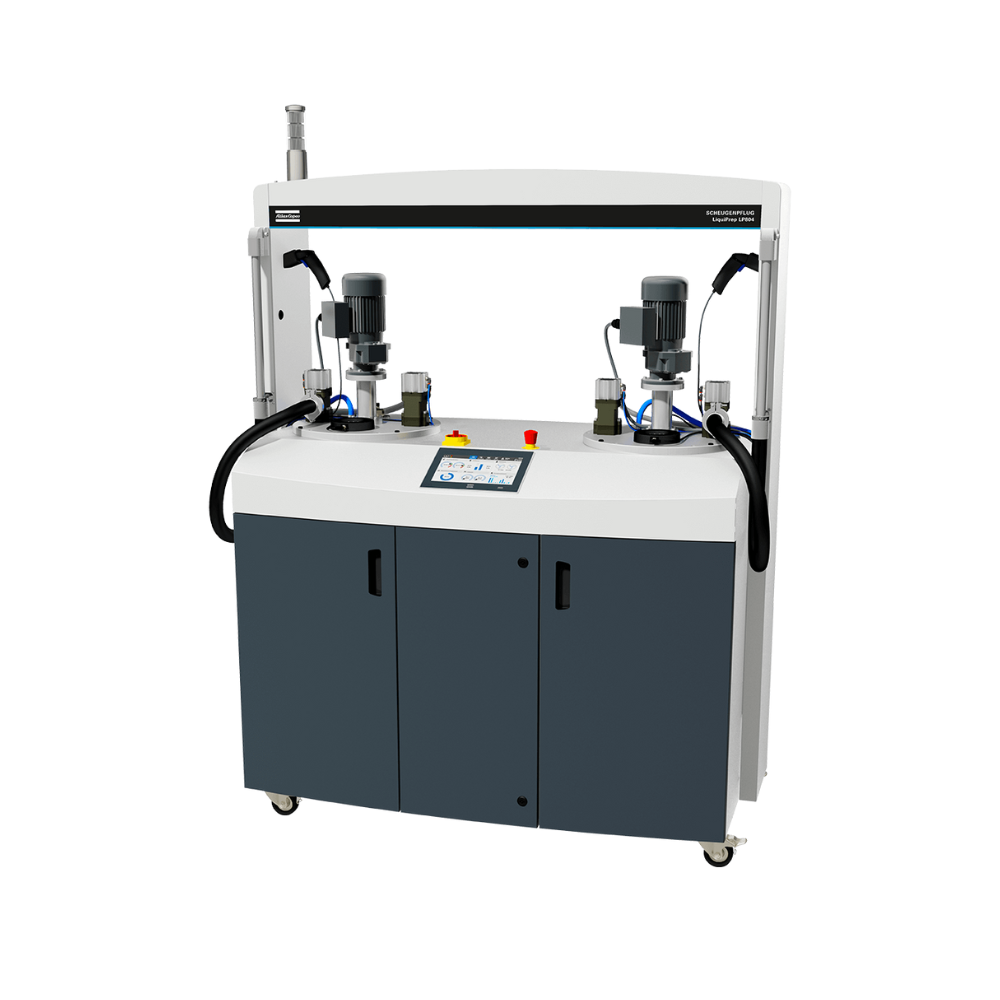

Scheugenpflug Liquiprep LP804
Material preparation unit
Introduction
Scheugenpflug LiquiPrep (LP804) is a material preparation unit what is suitable for low viscosity, self-leveling and potting materials, completely homogeneous and bubble-free. This unit is the improved successor of A310. The diaphragm feed pumps ensure consistent material feeding with even less maintenance than before. The new EViS touchscreen interface is easy to understand and can be quickly and easily customised to suit different needs.
Details
- 50L material containers
- For 1 or 2 component self-leveling material (polyurethane, epoxy or silicone resins)
- min. 2 mbar vacuum preparation for completely bubble-free material preparation
- Redundant pump design for continuous material supply
- Built-in agitator to prevent separation of filled materials
- Circulation between the dispensing head and the tank
- Tank and tube heating
- Can be connected to atmospheric or vacuum dispensing equipment
Parameters
- Dimensions:
- W × D × H: 1000 × 2050 × 770 mm (1K-50l)
- W × D × H: 1500 × 2050 × 770 mm (2K 60/60l)
- Weight:
- approx. 280 kg (1K 50 l)
- approx. 430 kg (2K 50/50 l)
- Capacity: 100 ml per stroke
- Power supply: 3 x 400 V~, 50/60 Hz, CEE 16 A
- Vacuum pump: up to 2 mbar
- Heating: max 80 °C
- Viscosity range: up to 70 Pa·s
- Mixing speed: 39 rpm
Image gallery
Product showcase videos
Material preparation unit LP804
Preparation trolley for airtight preparation and application of self-leveling and potting materials.
