Introduction

The Pillarhouse Jade offline selective soldering system is designed for small batch production units where flexibility is the most important factor. While the JADE Pro is equipped with one soldering bath, the Duplex version is equipped with two independent Z-axis moving baths. Duplex thus allows the different solder alloys required for different makes to be changed without expensive and long changeover times. The equipment can be fitted with a small soldering nozzle of 1.5 mm diameter, unique on the market, which allows even the most difficult soldering tasks to be carried out.

Thanks to its easy programmability and simple operation, it is the world’s most popular offline soldering system.

Details

Offline design
1,5 – 25 mm soldering nozzles
Single (Jade Pro) or two independent z-axis hot tub (Duplex) designs
Automatic solder bath replacement (max 4 baths!)
Visual teaching system based on panel image (Jpeg or Gerber)
Adjustable size PCB frame holder
Dropjet or ultrasonic fluxer
Manual or automatic fiducial correction system
Solder wave height measurement and correction
Flux presence check (against clogging, running out)
Integrated nitrogen purity measurement
Leaded or lead-free design
PillarPAD offline programming software

Product Options

Rotary table design for fast product changeover even during the process
Dual dropjet and ultrasonic flux application unit
Top side & bottom side slide In/Out Instant IR Pre-Heat
Bottom-side hot nitrogen selective preheat
Closed loop pyrometer temperature control
Encoders on X, Y and Z axes
Laser PCB warp correction
N² flow measurement unit
Flux flow rate measuring unit
Automatic solder wire feeder
Solder bath quick change trolley with independent preheating
Pump RPM monitoring
Nitrogen Generator – Pillargen

Parameters

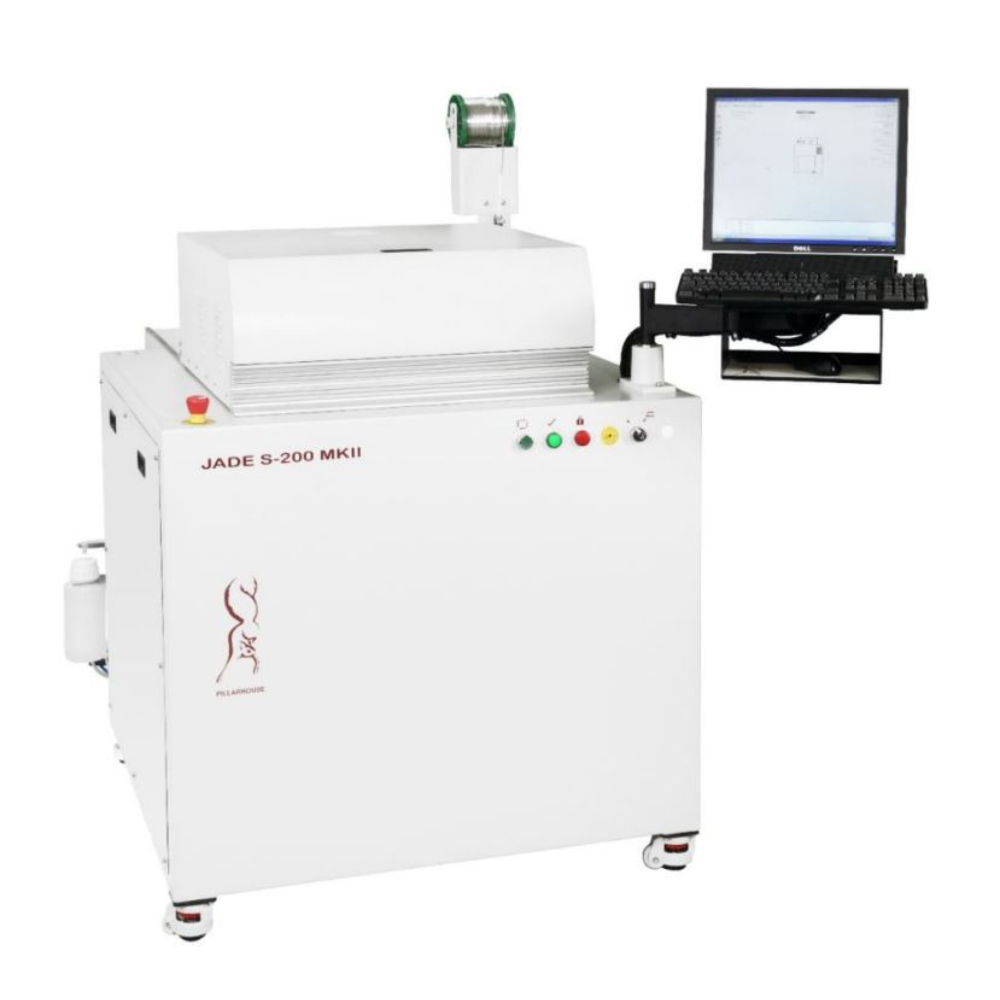

JADE MKII

Equipment dimensions: 1403 x 1000 x 1351 mm (M x W x H)
Max. panel size: 457mm x 508mm
Solder bath capacity: 8 kg
Nitrogen consumption: 35 litres/minute
Required Nitrogen purity: 99.995% or cleaner
Required Nitrogen pressure: 5 bar
Required air pressure: 5 bar
Mains supply: 208 – 250 V, 50/60 Hz, 6.5 kVA (with top-side preheater), 8kVA (with top-side preheater and bottom-side ring preheater)

JADE PRO

Equipment dimensions: 1230 x 1250 x 1495 mm (M x W x H)
Max. panel size: 457mm x 508mm
Solder bath capacity: 20 kg (standard) / 30 kg (large)
Nitrogen consumption: 40 litres/min (single hot tub design) / 80 litres/min (Duplex design)
Required Nitrogen purity: 99.995% or cleaner
Required Nitrogen pressure: 5 bar
Power supply: 230/400 V, 50/60 Hz, up to 9kVA (depending on configuration)
