Pillarhouse Pilot

Entry-level benchtop selective soldering

Introduction

Pillarhouse’s entry-level equipment Pillarhouse Pilot is a compact benchtop selective soldering machine what is recommended for prototyping, repair and small batch production. The machine offers high flexibility and low investment and running costs.

Details

  • Compact desktop design
  • Drop Jet fluxer
  • Inerted nitrogen system
  • Adjustable size PCB frame holder
  • Teaching camera
  • Offline soldering program editing software – PillarPAD
  • Solder wave height measurement & correction
  • Nitrogen Generator – Pillargen

Product Options

  • Manual fiducial correction system
  • Optional bottom IR preheating
  • 1,5 mm micro nozzle can be used

Parameters

  • Max. panel size: 330mm x 250mm
  • Solder bath capacity: 6 kg
  • Nitrogen consumption: 30 litres/minute
  • Required Nitrogen purity: 99.99% or cleaner
  • Required Nitrogen pressure: 5 bar
  • Mains supply: 208-250V, 50/60 Hz, up to 4kVA (with bottom-side infrared preheater)

Image gallery

Product showcase videos

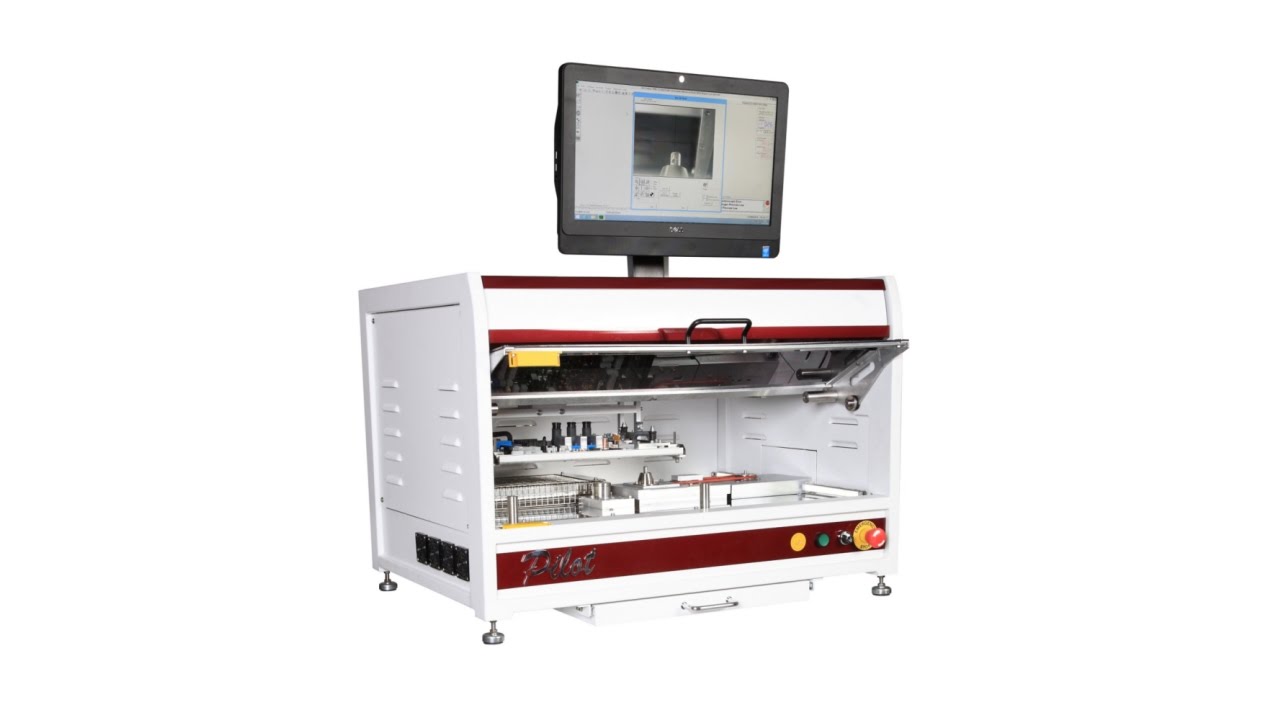

Pilot

Pilot

Entry-level, economical, desktop selective soldering machine.
