Scheugenpflug DosP
Precise dispensed quantity and fixed mixing ratio
Introduction

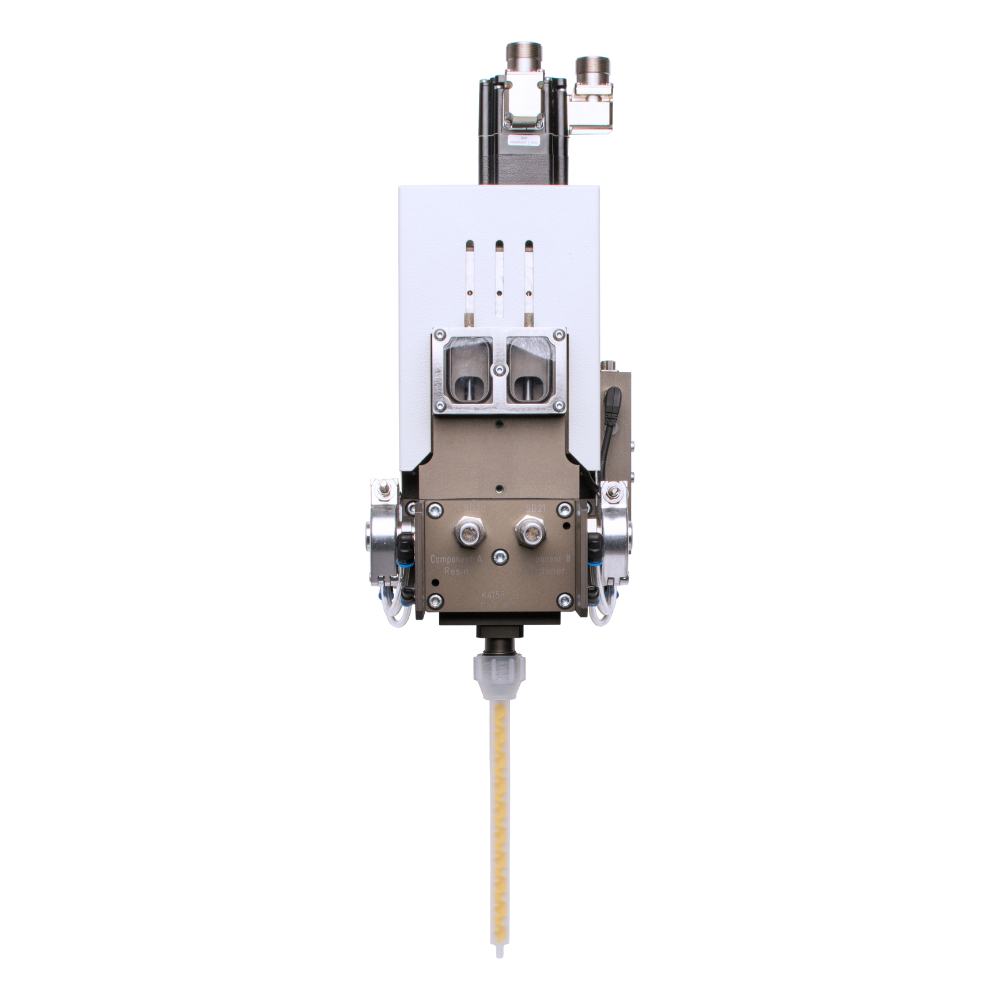

Scheugenpflug DosP dispensing head series are for precise volume. The DosP piston volumetric dosing heads are capable of handling both 1 and 2 component materials. Accurate mixing ratio and dispensed volume are ensured, as the pistons are driven by a common pressure segment plate and the mixing ratio is determined by the piston diameter. The two components meet only in a static mixing tube, thus minimising unwanted material reaction and the amount of consumable wear parts. An additional advantage of DosP is that a washing fluid cleans pistons and the walls of the cylinders of any residual deposited material after each dosing cycle, thus extending the life of the pistons and cylinders and protecting the dosed material from moisture or contamination.
Details
- Dispensing nozzles for any material such as sealings, thermal conductive pastes, adhesives or potting materials
- Can be built into any Scheugenpflug device or integrated into custom machines
- Due to the volumetric principle, the exact amount of material can be dispensed regardless of temperature, pressure or viscosity changes
- Constant mixing ratio for 2-component materials, thanks to the common drive of all pistons
- The two components can not react in the dispensing head, only in the static mixing tube
- Washing fluid ensures cleaning of the piston rod and cylinder and protecting the material from moisture or external contamination
- Pneumatically controlled valves
- Simple and easy maintenance
- Ready for filled, abrasive materials too
Product Options
- Multiple 2-12 mixing tube design for higher capacity
- Separately controllable outputs
- Heatable head and mixing tubes
- Different head sizes for different dispensing volumes
- Circulation of material through the head for materials that are prone to separation and sedimentation
- DosPA alternating double dispensing axis design for continuous dosing
- DosP TCA for dispensing high viscosity thermal pastes
- Connected with A90, Pailfeed and LP804 Scheugenpflug preparation and feeding units
Parameters
Model P016 P050 P100 P300
- Weight (kg): 13 – 19.5 – 33 – 48.5
- Width (mm): 290 – 335 – 350 – 350
- Height (mm): – 350 – 550 – 600 – 670
- Depth (mm): – 230 – 240 – 240 – 240
- Heating (°C): max. 80
- Maximum quantity released
- 2K at 1:1 mixing ratio (ml): 35 – 90 – 229 – 318
