Scheugenpflug DC803
Flagship dispensing cell model
Introduction

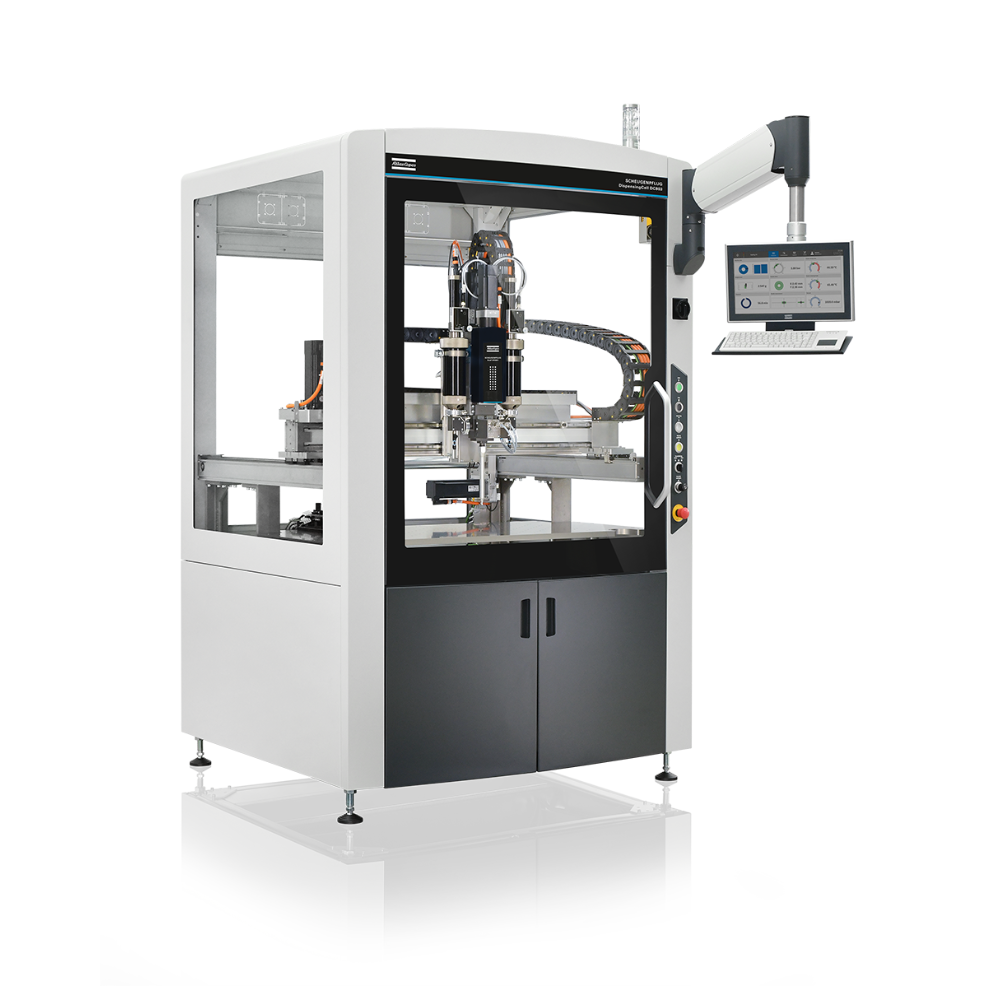

The Scheugenpflug DC803 dispensing cell is the flagship model of Scheugenpflug portfolio. This automatic dosing machine is capable of high capacity with high quality, even in case of high-mix production requirements. The equipment is available either as a stand alone, inline or rotary table design. Many extra options can be selected, such as a camera recognition and inspection system, code reading, plasma cleaning, assembling, screwing or even marking. We can also offer several types of heat convection or UV curing ovens as a complement to the automatic dosing machine.
Details
- Easy to use and program
- Precise 3- or 4-axis CNC system (20 micron setting accuracy – measured on X; Y axis)
- Speed from 160 to 800 mm/sec
- Stepper or servo motor
- Beckhoff Industrial PC-based control
- Optional material handling solutions: one or two drawers or inline, rotating table design
- DosP, DosDP and DosGP dispensing heads can be integrated
- Scheugenpflug material preparation units (A90; BAS; PF(A)803; PFA2001; LP804) can be connected
- Needle gauge unit – needle deflection compensation
- Joystick – for easy manual control
- Parking glass – needle asphyxiation prevention
- Needle wiper unit – for sealants
- Pot life calculation – automated purging process
- Built-in weight measurement – scheduled control of the dosage quantity
- Work spaces can be designed in different sizes (from 800 x 800 mm to 1400 x 1200 mm)
- Heating of product, pallet, dispensing head or mixing tubes
- Product position or type sensor
- Camera system for product recognition or batch quality control
Product Options
- Additional dosing, support functions are available:
- Convection or UV curing ovens
- Assembling, inserting or screwing modules
- Camera alignment
- Quiss real time inspection in 2D and 3D
- Plasma cleaning, surface treatment
Parameters
- Dimensions W × D × H:
- 800 x 800 x 2160 mm
- 1000 x 800 x 2160 mm
- 1000 x 1000 x 2160 mm
- 1200 x 1000 x 2160 mm
- 1200 x 1200 x 2160 mm
- 1400 x 1200 x 2160 mm
- Power supply: 3 x 400 V~, 50/60 Hz, CEE 16 A
Image gallery
Product showcase videos
DC803 for self-leveling materials
The automatic dispenser cell is an excellent turnkey solution for dispensing self-spreading synthetic resins and glue!
Sealing dosing with CNCell
High-capacity fully automatic dispensing system with individually expandable options.
