Scheugenpflug BAS
Barrel agitator station
Introduction

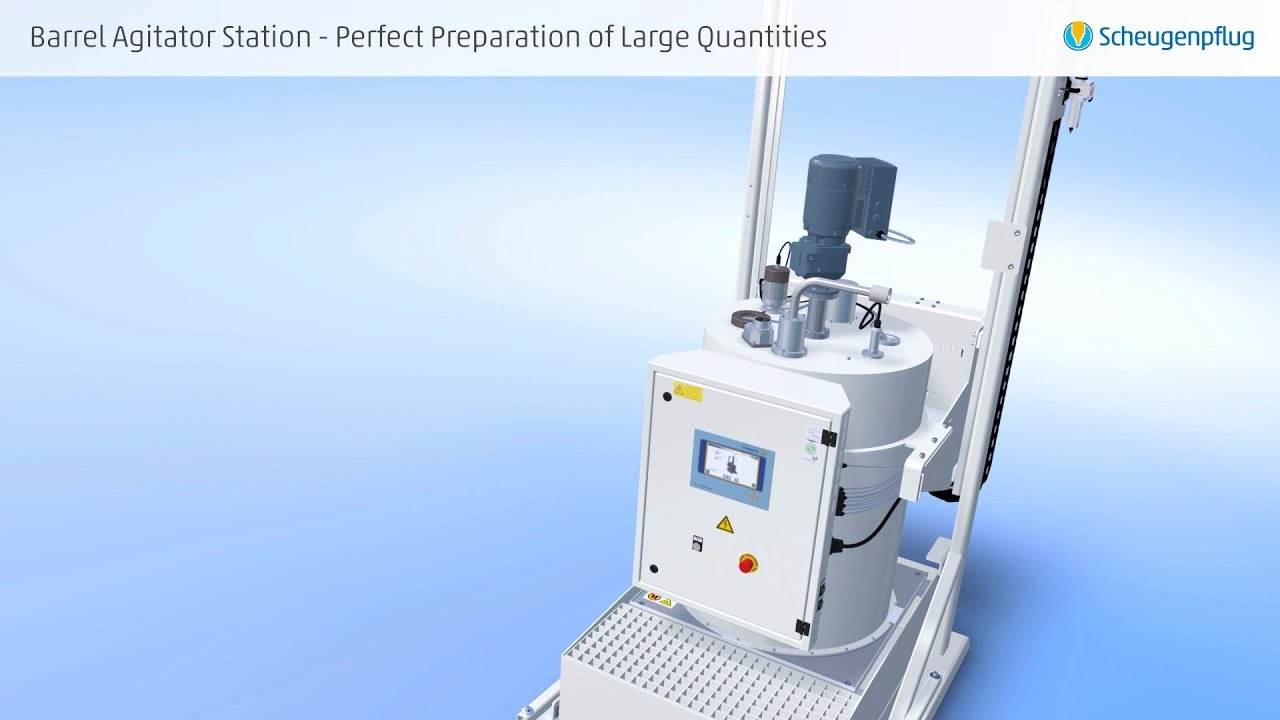

The Scheugenpflug BAS barrel agitator station is a barrel mixing station, which provides a unique solution on the market for the de-bubbling, homogenisation and air and moisture free storage and preparation of 200 litre drum materials (e.g. polyurethanes). Ideal for applications where material consumption is significant. The barrel mixing station can be connected to LP804 or directly to Scheugenpflug dispensing heads. It is controlled by its own SCP210 unit.
Details
- For the preparation and handling of 200 litre drums
- Storage under vacuum for moisture sensitive bubble-free materials
- Low to medium viscosity, even for abrasive materials
- Continuous mixing to prevent separation of the filled materials
- Material viscosity adjustment with adjustable heating up to 80°C
Parameters
- Dimensions (W × D × H): 1050 × 3000 × 1700 mm
- Weight: 800 or 1000 kg
- Capacity: 850 kg
- Power supply: 3 x 400 V~, 50/60 Hz, CEE 16 A
- Evacuation: none or 283 l/min
- Mixing speed: 0- 60 rpm
- Heating up to 80°C
Image gallery
Product showcase videos
Load preparation station
A unique solution for dispensing large quantities, for the preparation and storage of materials that are sensitive to moisture or separation.
