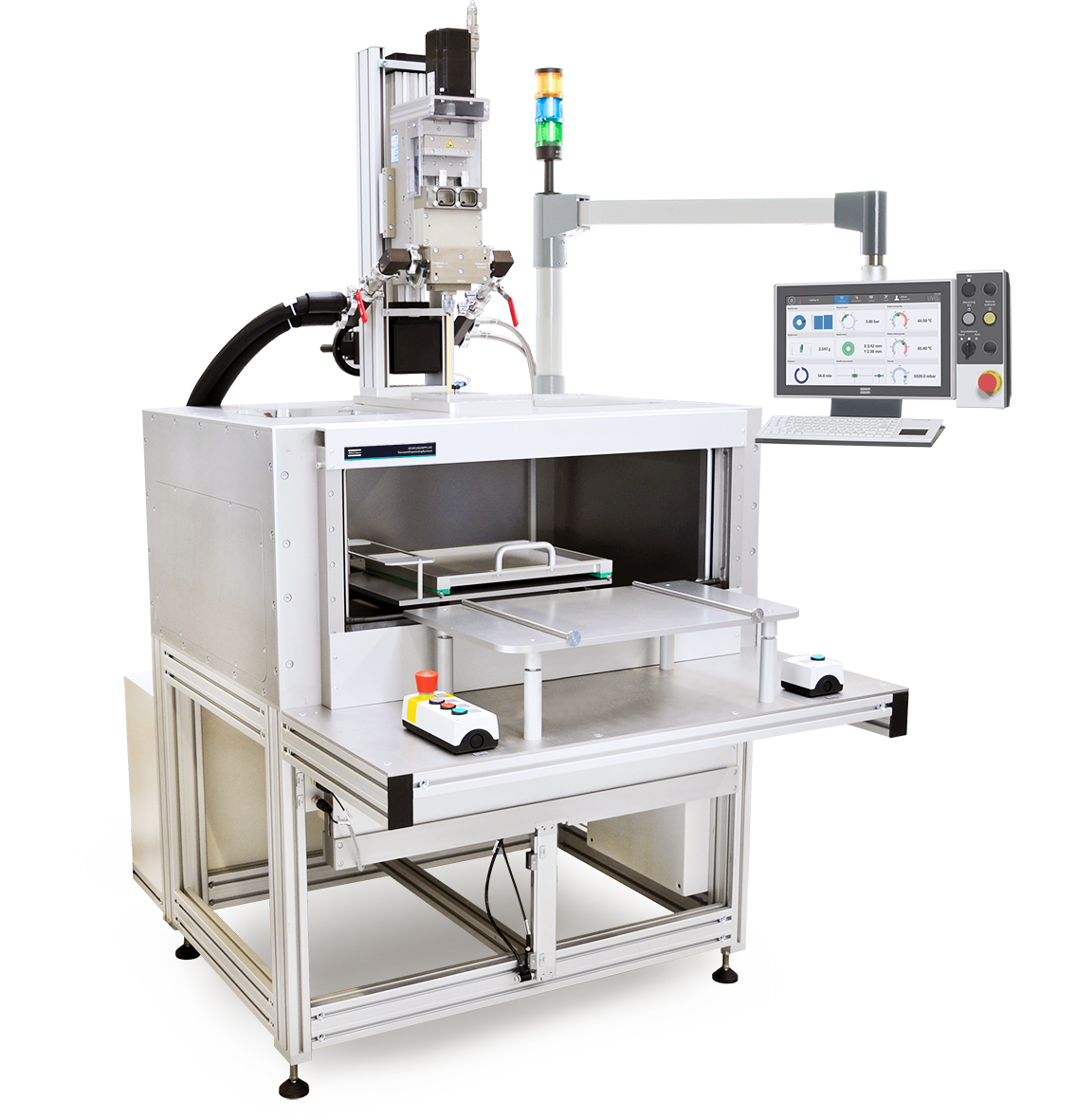

Scheugenpflug VDS vacuum chamber series
Vacuum chamber series
Introduction
Scheugenpflug is the market leader in potting solutions from prototyping to inline mass production. The Scheugenpflug VDS vacuum chamber series provides excellent, bubble-free, homogeneous dispensing quality for filling coils, sensors or motors with self-leveling materials. The VDS series, with its large working area, Scheugenpflug’s versatile automation solutions and single or multi-mixing tube designs is the perfect solution for those who value high dispensing quality as well as short cycle times.
Details
- Bubble-free even dispensing
- High quality low scrap rate
- Air-tight filling of products (coils, other parts), even with complex geometries
- Vacuum bonding, inclusion-free thermal paste application without mechanical stress on components
- Application specific vacuum generation (from 500 to 5 mbar)
- Vacuum material preparation unit LP804 required
- Low operating costs
- Robust construction
Product Options
VDS Series
- Various equipment:
- VDS Basic; Universal; Power
- Working space 300 x 300 or 420 x 420 mm
- From 1 to 12 mixing tubes
- XYZ axis system maximum stroke (mm): 920 x 85 x 200
- Product, mixing tube and dispensing head heating
- Waste cup
- UVIS5 control unit
- 5 mbar vacuum value
- Custom VDS:
- Inline vacuum chamber
- multi vacuum chamber to reach the shortest cycle time requirements
Image gallery
Product showcase videos
VDS P sensor filling
Automotive sensors have a vital role to play under extreme environmental conditions. Therefore, it is of paramount importance that they are manufactured fault-free to ensure their reliability.
Vacuum bonding
The VDS series is not only suitable for filling tasks, but also for the air-tight, even application of thermally conductive materials without excessive mechanical stress on the components.

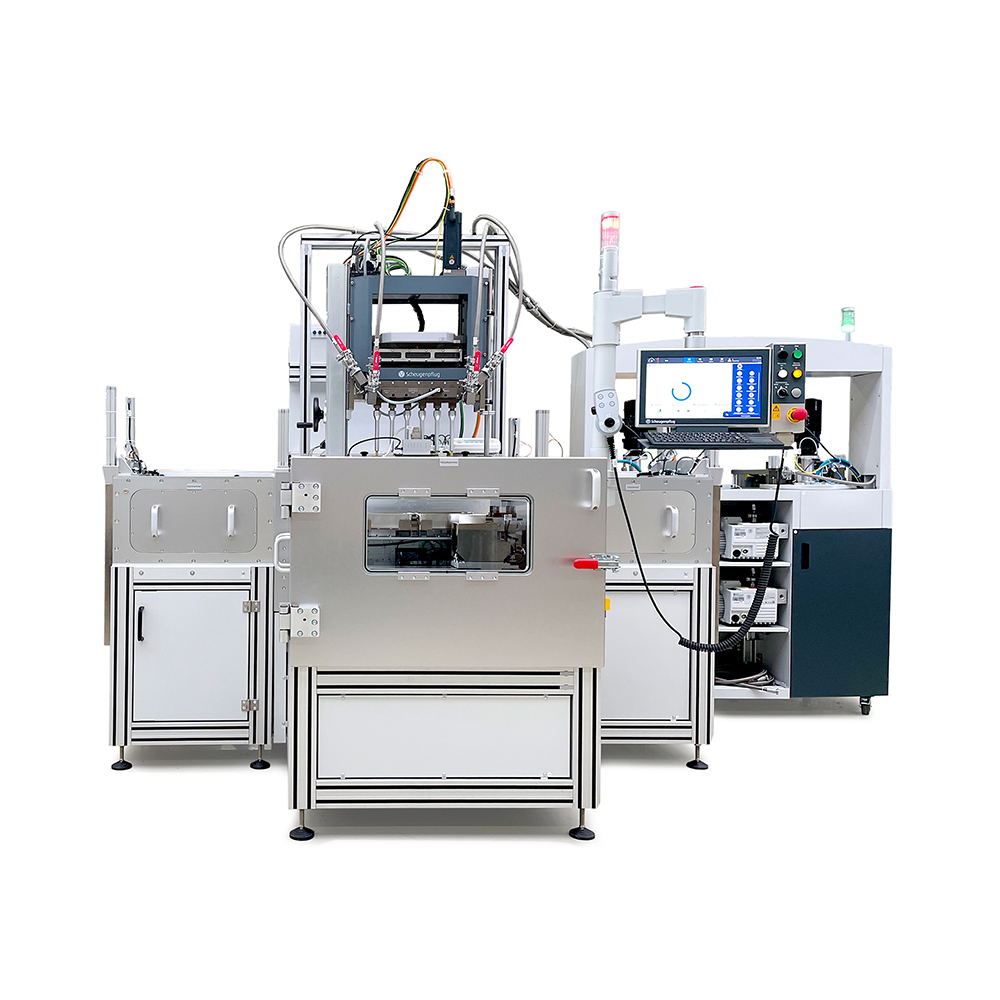

Inline VDS
Three consecutive vacuum chamber Scheugenpflug units result in extremely short cycle times and outstanding process safety.
