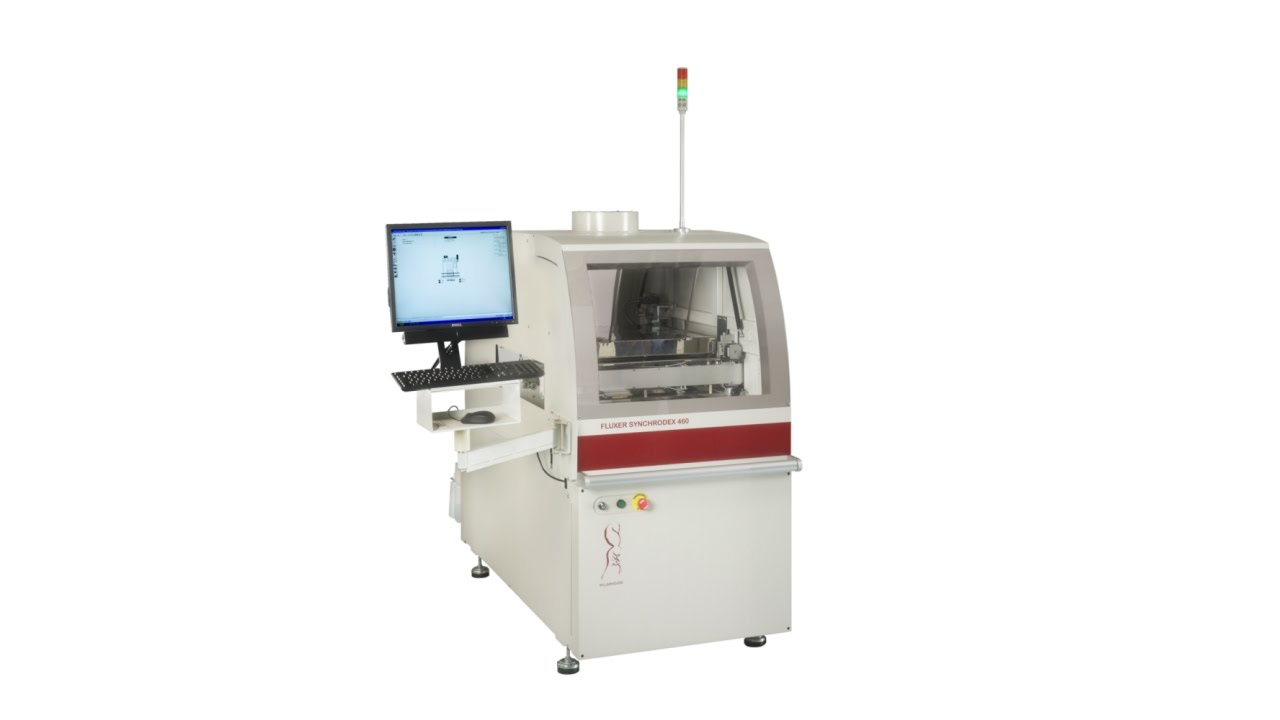

Pillarhouse Synchrodex

Modular Inline Selective Soldering System

Manufacturers Website Add to info request

Introduction

The Pillarhouse Synchrodex Inline selective soldering system is fully modular, allowing a high degree of flexibility. Each module is a stand-alone unit, independently configurable and movable. You are free to choose between fluxer only, fluxer and preheater combined, preheater only and soldering modules. This allows flexibility to match the investment to the required yield, maximising the return on investment.

Details

Inline modular design
Same design as Pillarhouse Handex, options
Conveyor system with automatic width adjustment and side clamping
Manage even bare boards
Auto-fiducial recognition and correction system
Internal fume extraction

Product Options

Ultrasonic fluxing
Top side IR pre-heat
bottom side slide-in and slide-out IR pre-heat
Closed loop pyrometer temperature control
Encoders on X, Y and Z axes
Automatic solder wire feeder with solder reel identification
Auto fiducial recognition and correction system

Parameters

Equipment dimensions: 1615 x 813 x 2024 mm (M x W x H)
Max. panel size: 457mm x 610mm
Nitrogen consumption: 10-30 litres/minute
Required Nitrogen purity: 99.995% or cleaner
Required Nitrogen pressure: 5 bar
Required air pressure: 5 bar
Air consumption: 10 litres/minute
Power supply: 230V, 50/60 Hz, up to 13 kVA (depending on the configuration of the equipment)
