ELMOTEC Soldersmart® TOP

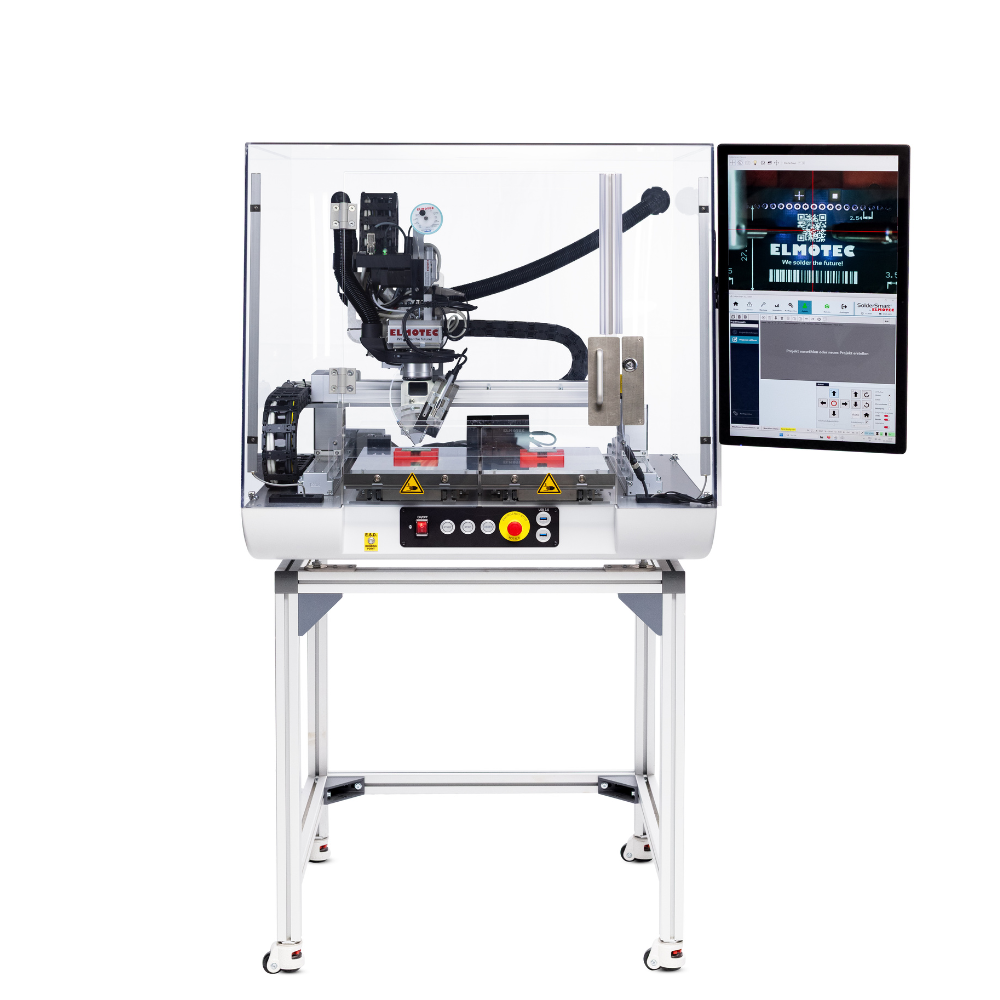

Tabletop Iron Soldering Robot

Elmotec Soldersmart is developed and manufactured by ELMOTEC of Switzerland, the SolderSmart® soldering robot meets the highest technical standards.

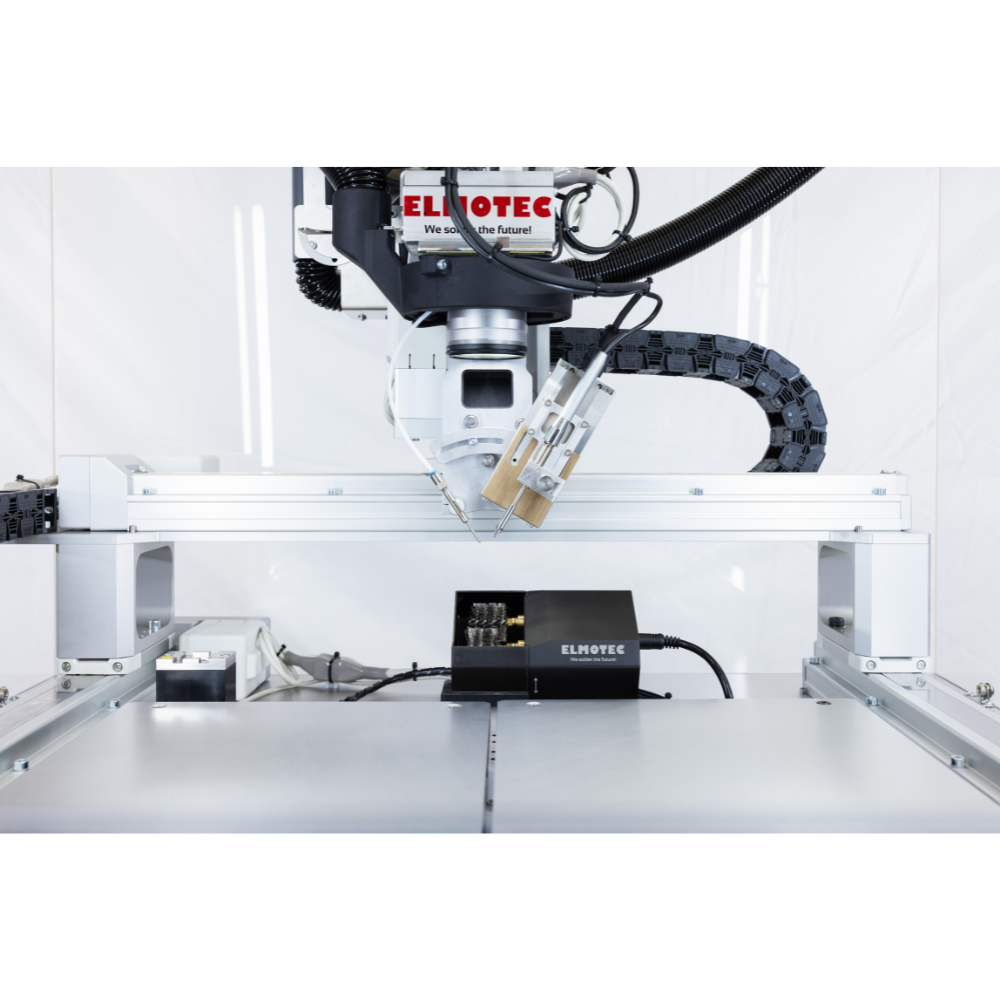

Its repeatability takes production quality to a new level thanks to the high precision XYZ electric linear axes and automatic zero point calibration.

Typically used for soldering leads, connectors, THT components.

A simple plug & play solution, ready for monitoring and traceability – documenting all points of the soldering process with photos if needed.

Large worktable size: 483*383mm
Fully automatic zero calibration and solder tip measurement
Automatic solder tip maintenance control
Learning trigger points with an integrated camera
Integrated industrial PC

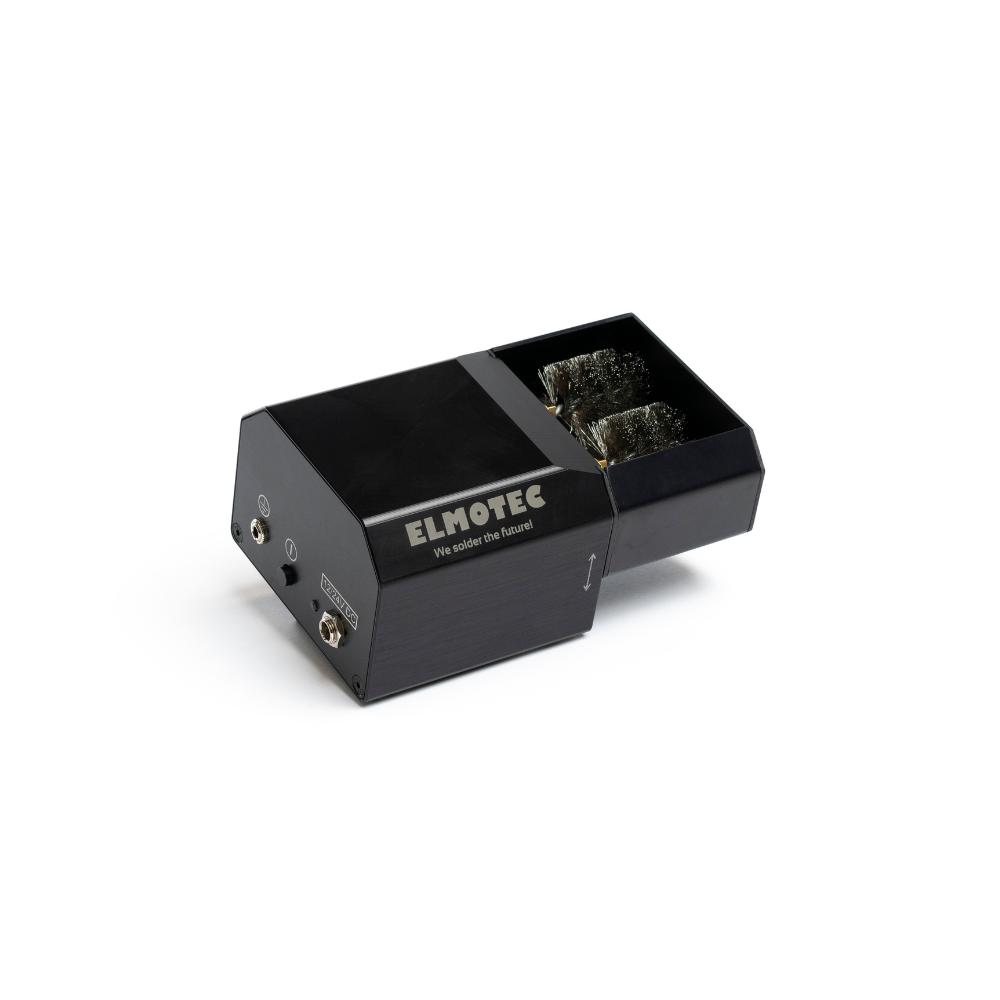

Rotary brush cleaning station

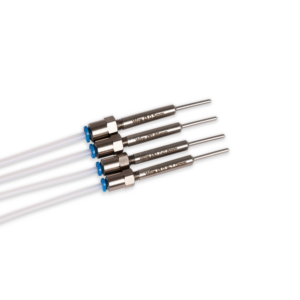

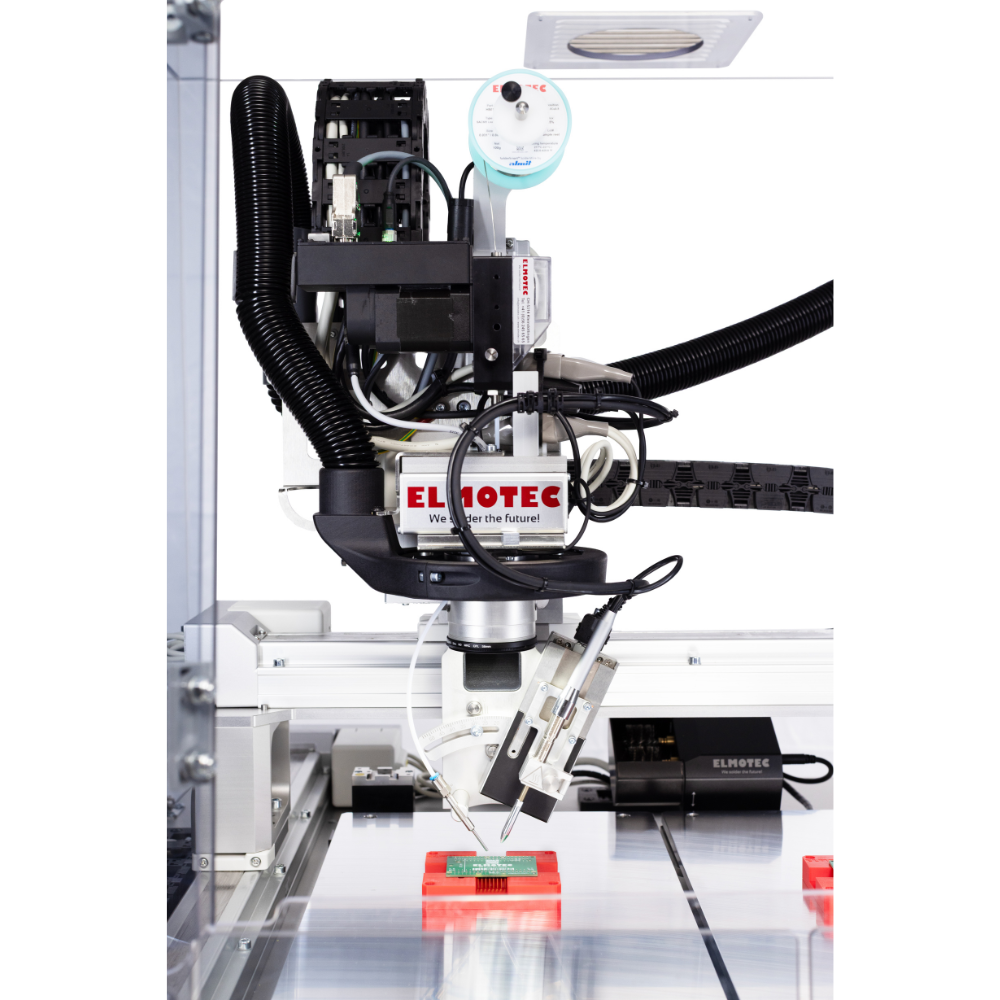

High precision wire feeder – with integrated control, data logger, process parameter monitoring
Integrated extraction device – direct extraction at the soldering head

Colour process monitoring camera – for real-time process tracking, traceability, alignment of pickle tip to solder points

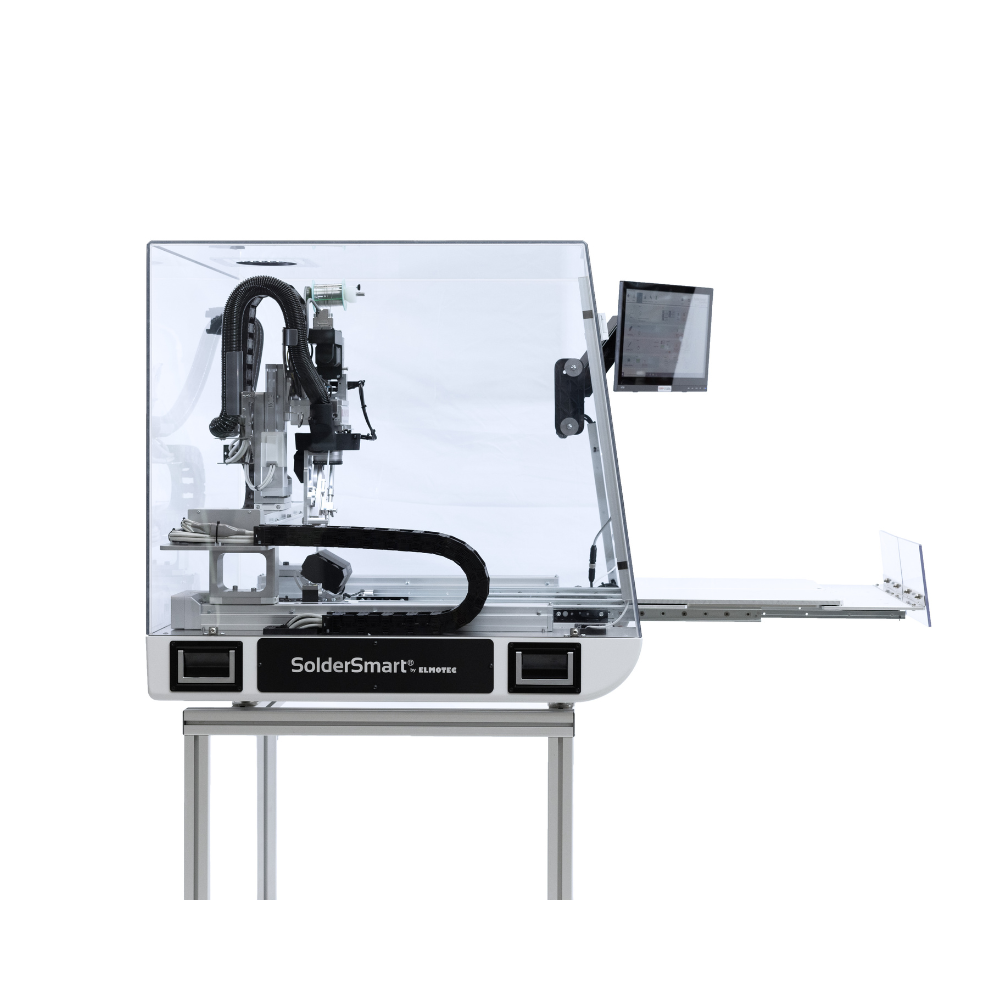

Protective cover – CE and ESD aspects
Self-closing and self-opening drawer system with two drawers – while the robot is soldering on one side, the operator can change the already soldered parts on the other side
Direct LED lighting to the work area
Machine Vision System – automatically detects and corrects position inaccuracies

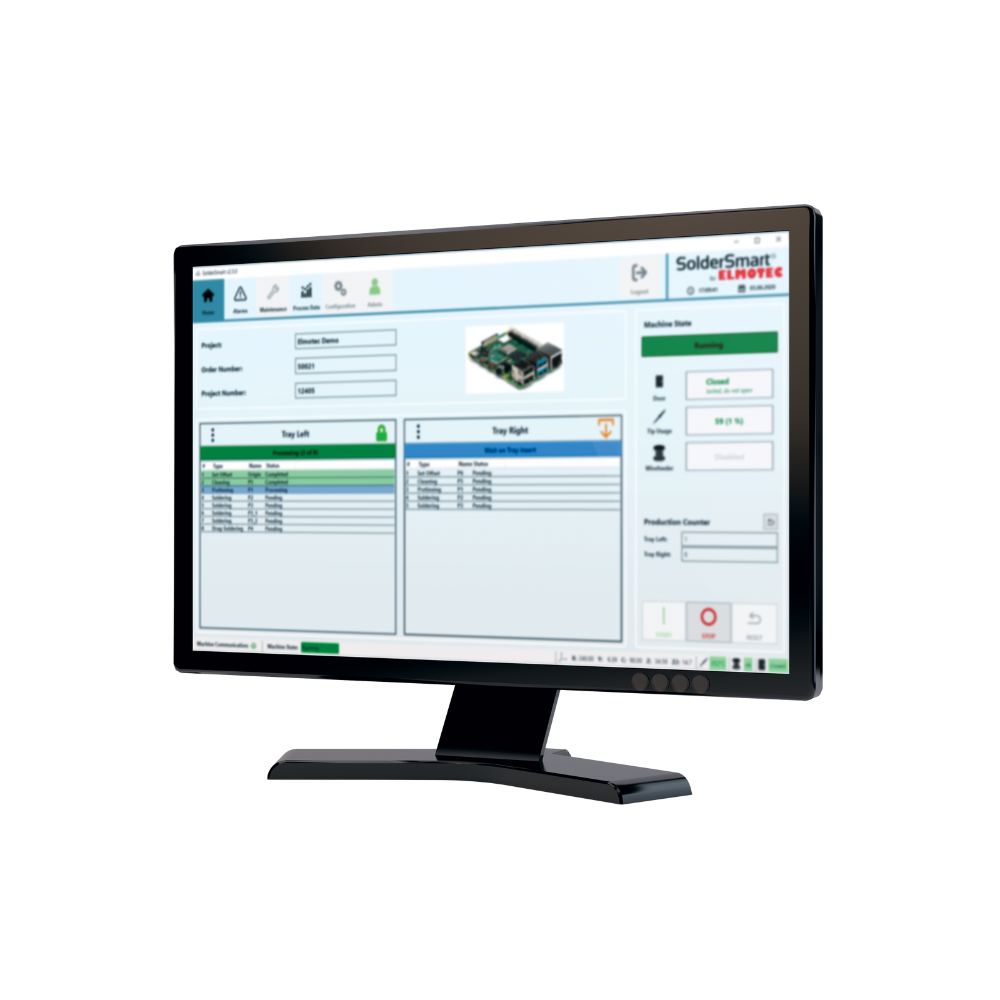

Touch screen
Scanner for traceability, greater process security
Machine frame with vibration-damped rollers that can be levelled and locked.
