Pinnacle PXS-VPM
Benchmark industrial CT system
Introduction
About Pinnacle X-Ray Solutions
Pinnacle X-Ray Solutions delivers advanced 2D X-ray and CT technologies designed for maximum flexibility and performance. Their X-ray cabinets are engineered to integrate seamlessly with a wide range of detectors and X-ray tubes, covering energies from 160 kV up to 15 MeV.
A key advantage of their systems is the high-precision CNC-driven motion architecture, which provides extensive freedom of movement for the sample, detector, and X-ray tube. This enables optimal imaging geometry for complex inspection tasks.
Pinnacle’s unique C-arm solution further expands capability by allowing the inspection of long samples without compromising image quality. For applications with unusual or demanding requirements, the company also offers fully custom-designed X-ray cabins tailored to specific industrial needs. Because of this exceptional flexibility, Pinnacle X-Ray Solutions’ equipment is deployed across a wide range of industries—including foundry operations, aerospace quality assurance—supporting critical inspection and evaluation processes.

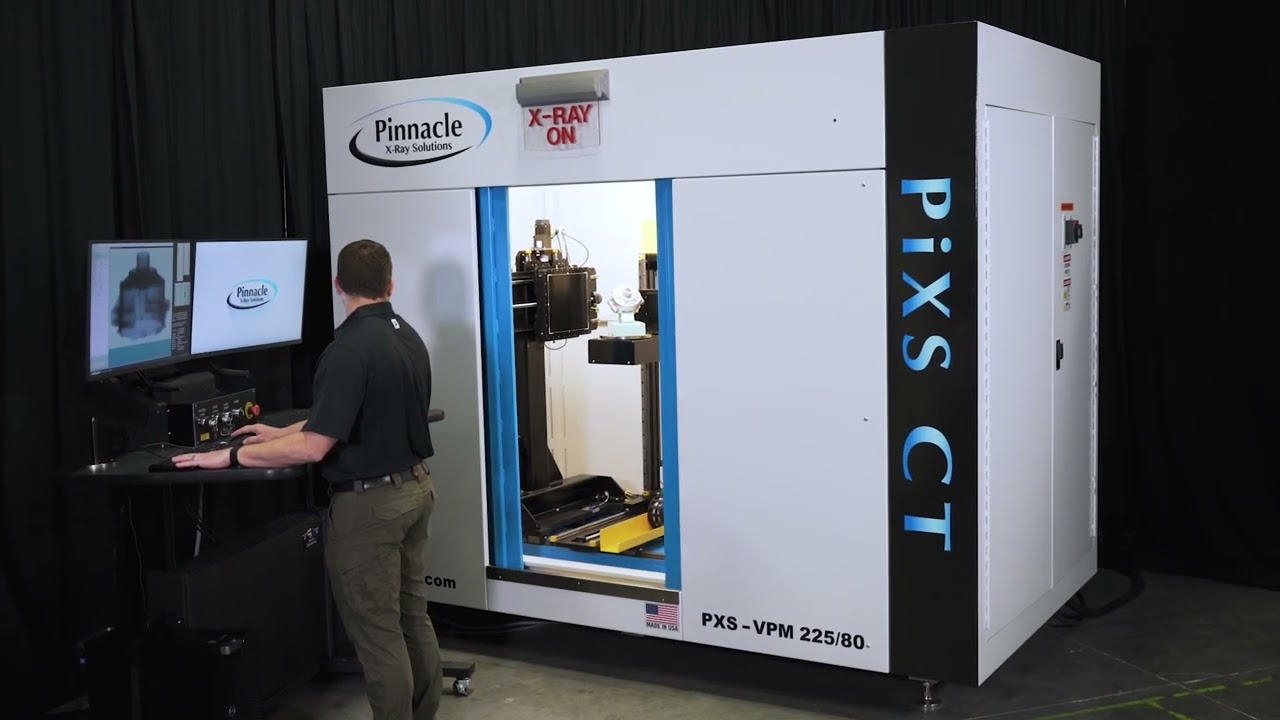

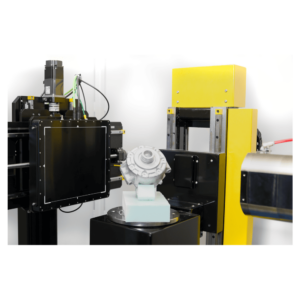

PXS- VPM (Vertical part movement) is a best-selling standard cabinet system for 2D X-ray and CT. The part is placed on a turntable that moves vertically and horizontally.
Details
PXS-VPM Highlights:
- Short lead time
- Excellent cost to benefit ratio
- Wide range of detector and tube options
Parameters
X-Ray Source
Nano-Focus, Micro-Focus, Mini-Focus, or Meso-Focus
Dual tube option: Mini- or Meso- combined with Micro- or Nano-Focus
X-Ray Energy [KV]
130 | 160 | 225 | 320 | 450 | 600
Part Size
W x H (584 mm x 762 mm)
Focus-detector distance:
Variable 10″-53″ (254 mm – 1,346 mm)
Image gallery
Product showcase videos
PXS-VPM Industrial CT System
Benchmark industrial CT system offered by Pinnacle X-Ray Solutions
