Pinnacle PXS-VDM

About Pinnacle X-Ray Solutions

Pinnacle X-Ray Solutions delivers advanced 2D X-ray and CT technologies designed for maximum flexibility and performance. Their X-ray cabinets are engineered to integrate seamlessly with a wide range of detectors and X-ray tubes, covering energies from 160 kV up to 15 MeV.

A key advantage of their systems is the high-precision CNC-driven motion architecture, which provides extensive freedom of movement for the sample, detector, and X-ray tube. This enables optimal imaging geometry for complex inspection tasks.

Pinnacle’s unique C-arm solution further expands capability by allowing the inspection of long samples without compromising image quality. For applications with unusual or demanding requirements, the company also offers fully custom-designed X-ray cabins tailored to specific industrial needs. Because of this exceptional flexibility, Pinnacle X-Ray Solutions’ equipment is deployed across a wide range of industries—including foundry operations, aerospace quality assurance—supporting critical inspection and evaluation processes.

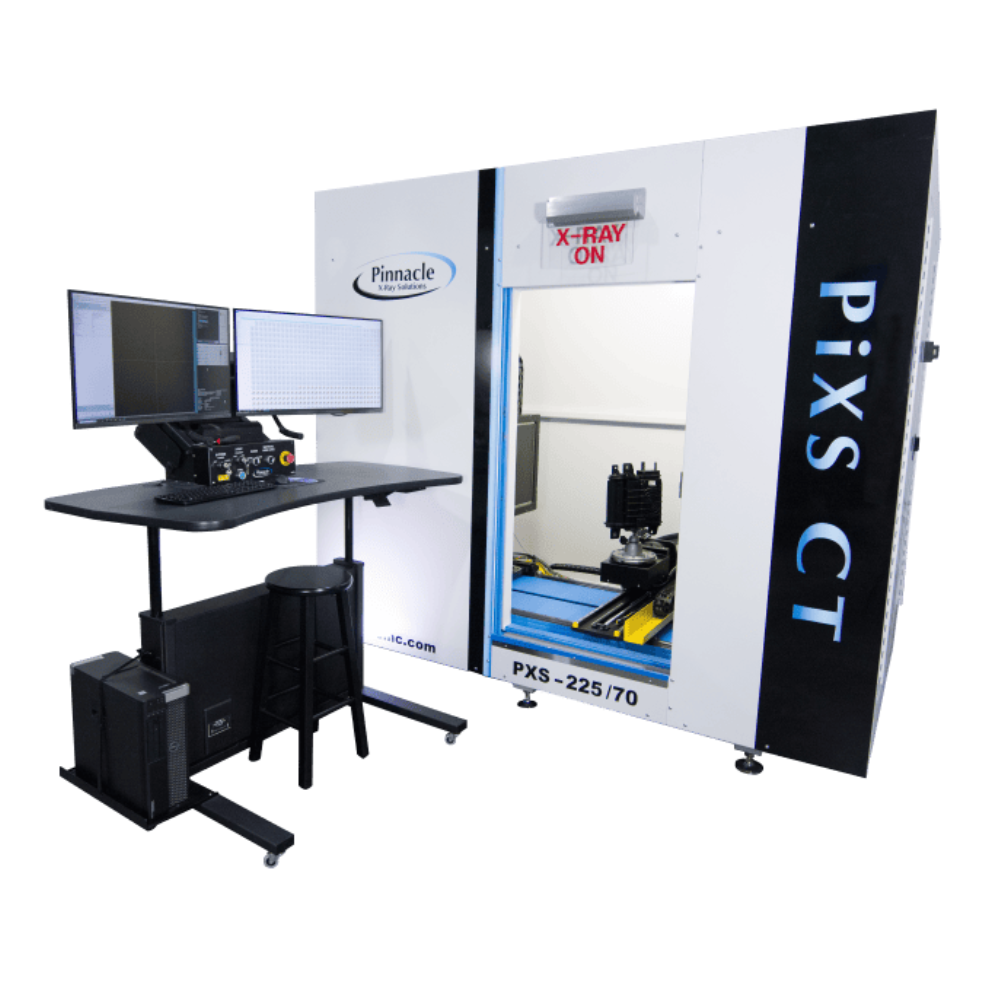

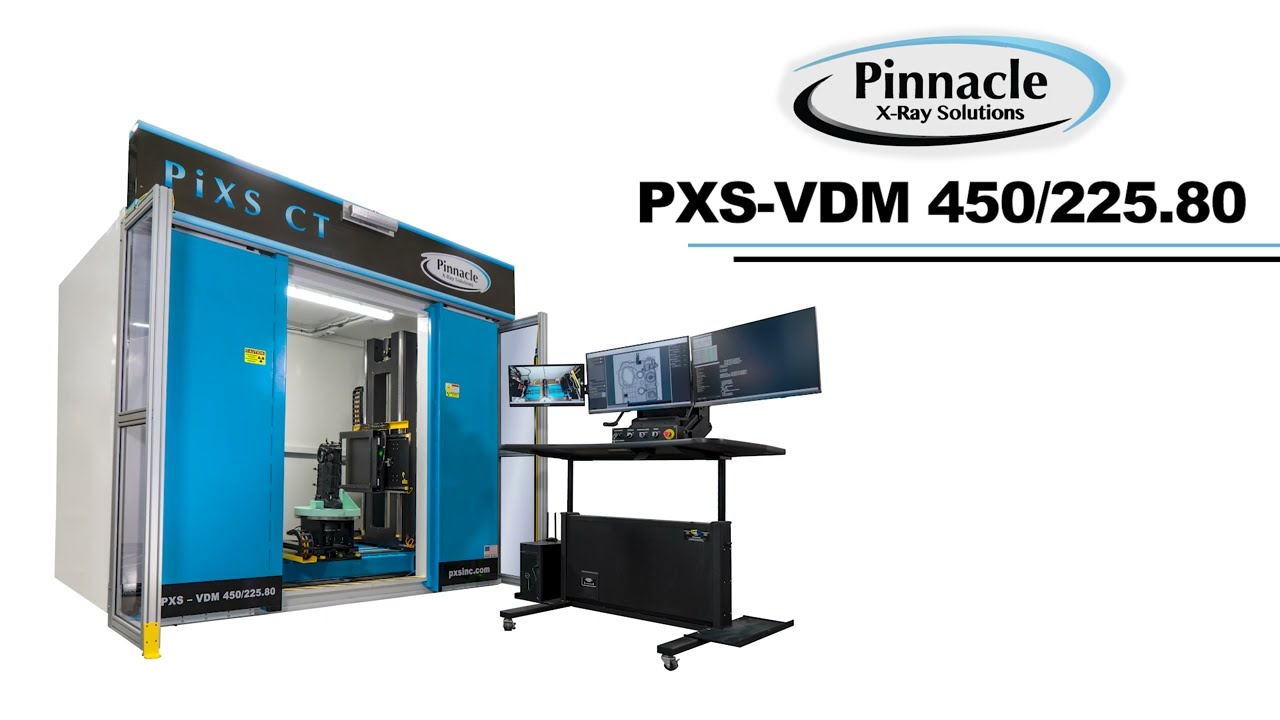

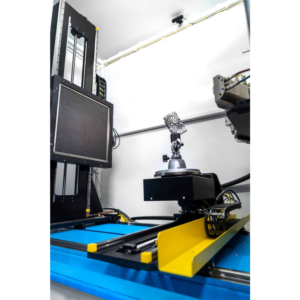

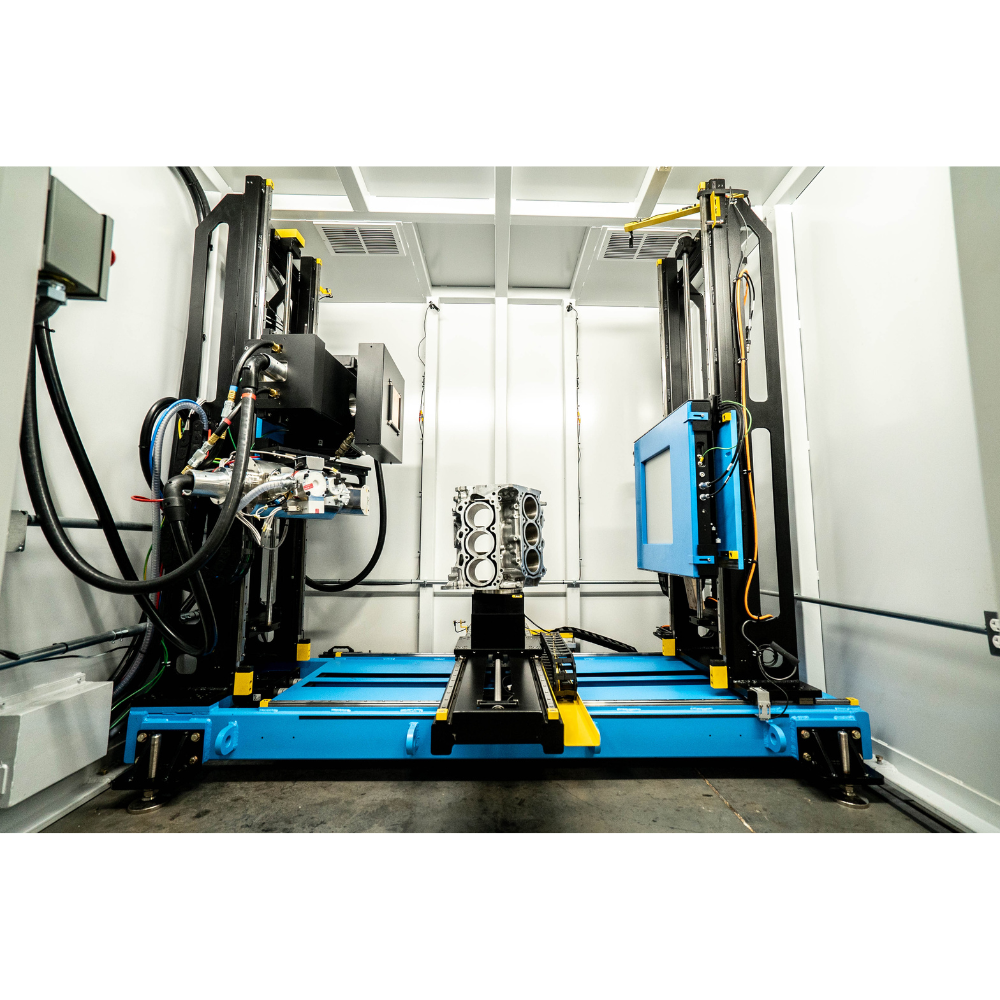

PXS-VDM  (Vertical Detector movement) is a highly flexible CT System that can be configured to customer’s needs. The part is placed on a turntable that moves horizontally, the detector and source move vertically. One of the advantages is the system can hold large parts as the turntable doesn’t move vertically allowing the ability to accommodate parts that are larger than the turn table.
