Scheugenpflug Processmodule
Process Module ensures unchanged accuracy of dosing volume and location
Introduction

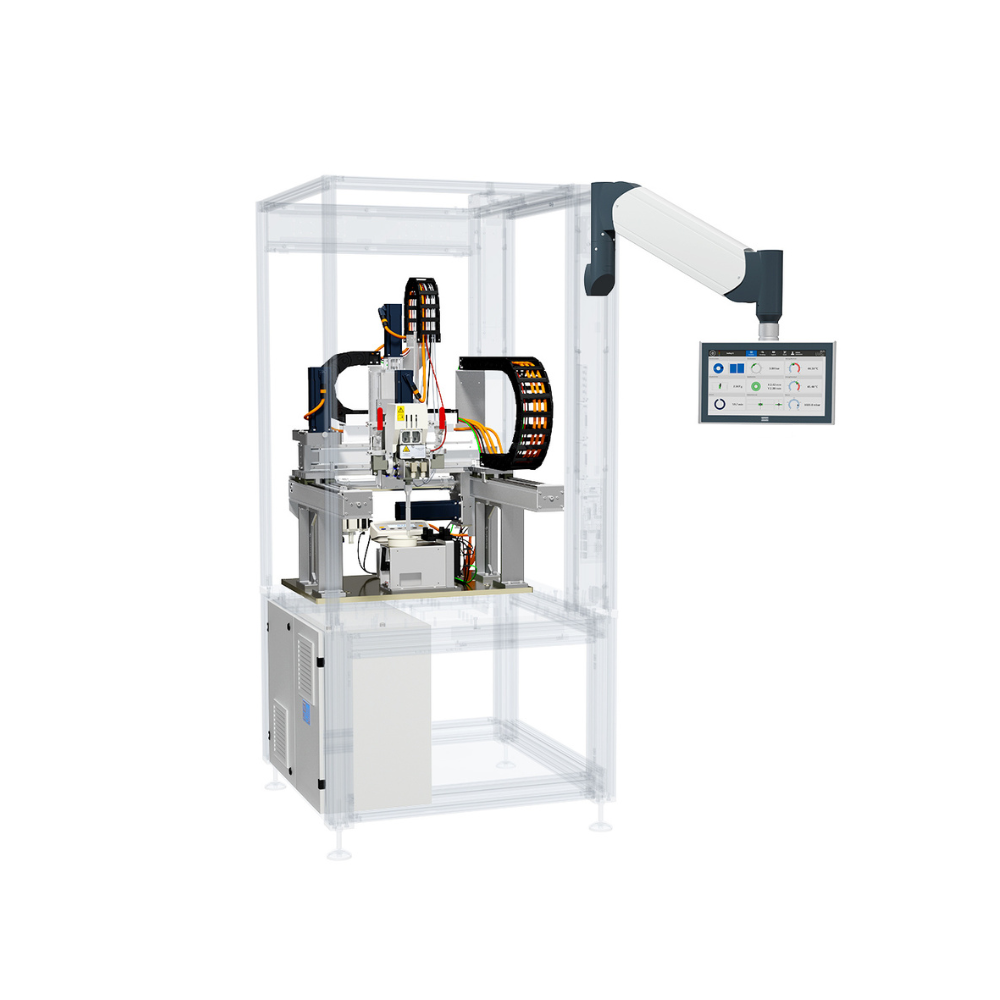

The Scheugenpflug Process Module can be easily integrated into individual new or existing automated production lines and cells. The integrated unit ensures unchanged accuracy of dosing volume and location thanks to Scheugenpflug dosing heads and axis systems. To meet different needs, the module is available in different sizes and configurations.
Details
- Easy to use and program
- Precise 3- or 4-axis CNC system (20 micron setting accuracy – measured on X; Y axis)
- Speed 160 or 500 mm/sec
- Servo motor
- DosP; DosDP and DosGP can be fitted with dispensing heads
- Can be connected with cartridge feeders or with Scheugenpflug material feeding and preparation units
- Needle gauge unit – needle deflection compensation
- Parking glass – needle curing prevention
- Pot life calculation – automated purging process
- Built-in weight measurement – scheduled control of the dispensing quantity
- Work spaces of different sizes can be created
- Product, palette, dispensing head and mixing tube heating
- Product position or type sensor
- Different intreface options available
- With Quiss option
Parameters
- Shaft speed: 160 or 500 mm/s
- X, Y, Z axis accuracy: ± 0.02 mm
- Size:
- From 700 × 1000 mm
- Up to 1400 × 1300 mm
- Power supply: 3 x 400 V~, 50/60 Hz, CEE 16 A
