Pinnacle PXS-C-ARM

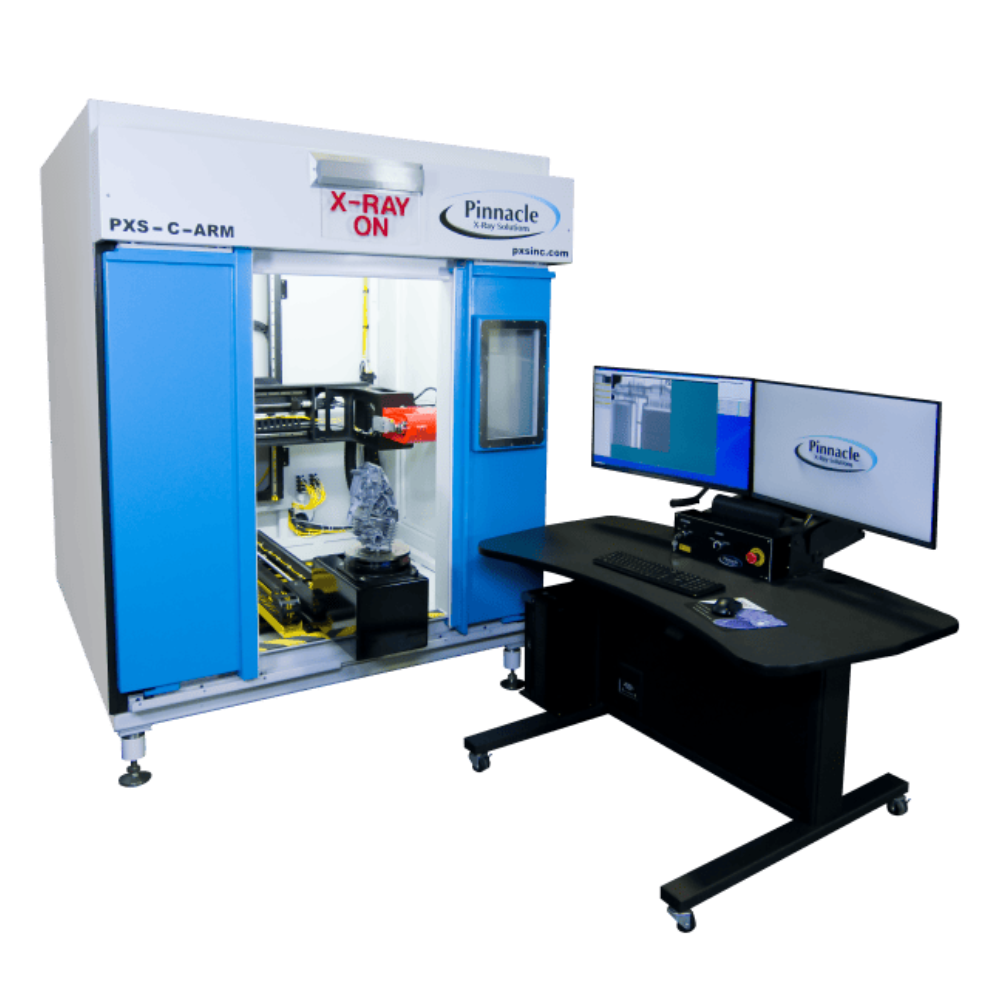

PXS-C-ARM is customised for specific applications
Introduction
About Pinnacle X-Ray Solutions
Pinnacle X-Ray Solutions delivers advanced 2D X-ray and CT technologies designed for maximum flexibility and performance. Their X-ray cabinets are engineered to integrate seamlessly with a wide range of detectors and X-ray tubes, covering energies from 160 kV up to 15 MeV.
A key advantage of their systems is the high-precision CNC-driven motion architecture, which provides extensive freedom of movement for the sample, detector, and X-ray tube. This enables optimal imaging geometry for complex inspection tasks.
Pinnacle’s unique C-arm solution further expands capability by allowing the inspection of long samples without compromising image quality. For applications with unusual or demanding requirements, the company also offers fully custom-designed X-ray cabins tailored to specific industrial needs. Because of this exceptional flexibility, Pinnacle X-Ray Solutions’ equipment is deployed across a wide range of industries—including foundry operations, aerospace quality assurance—supporting critical inspection and evaluation processes.

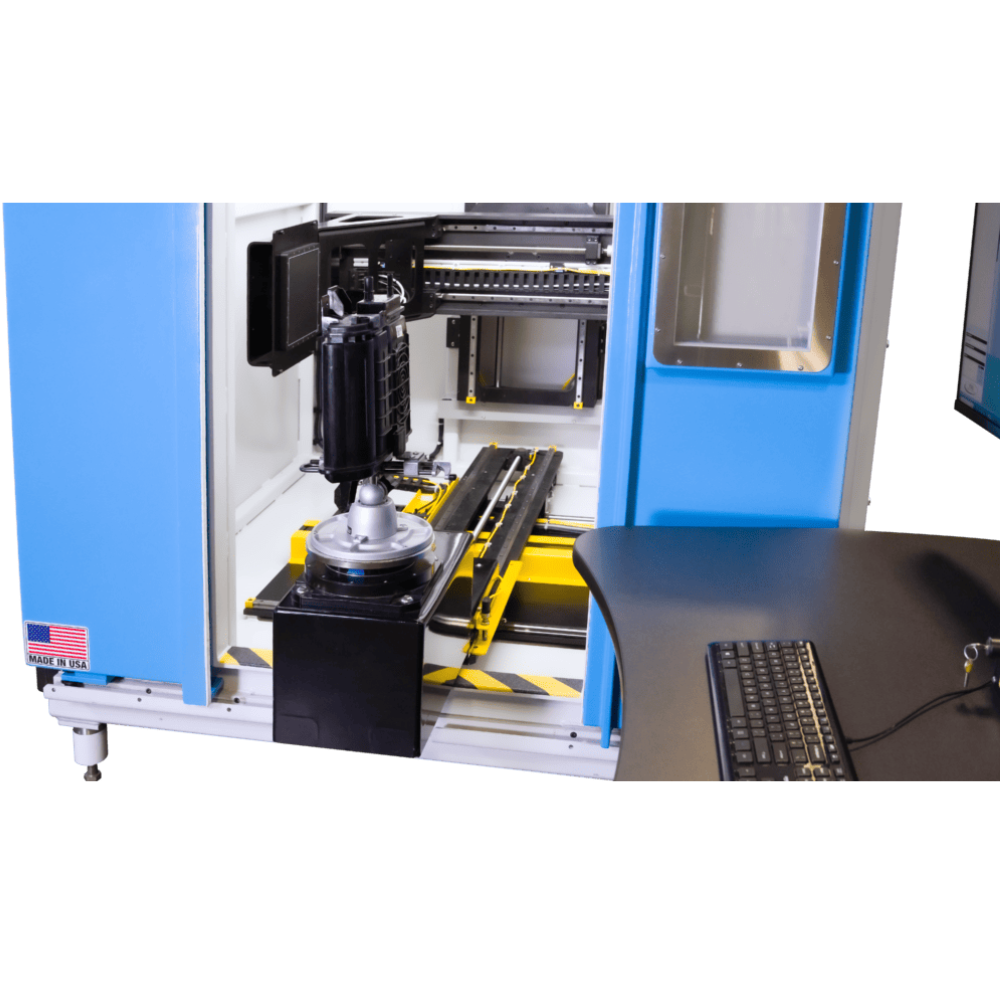

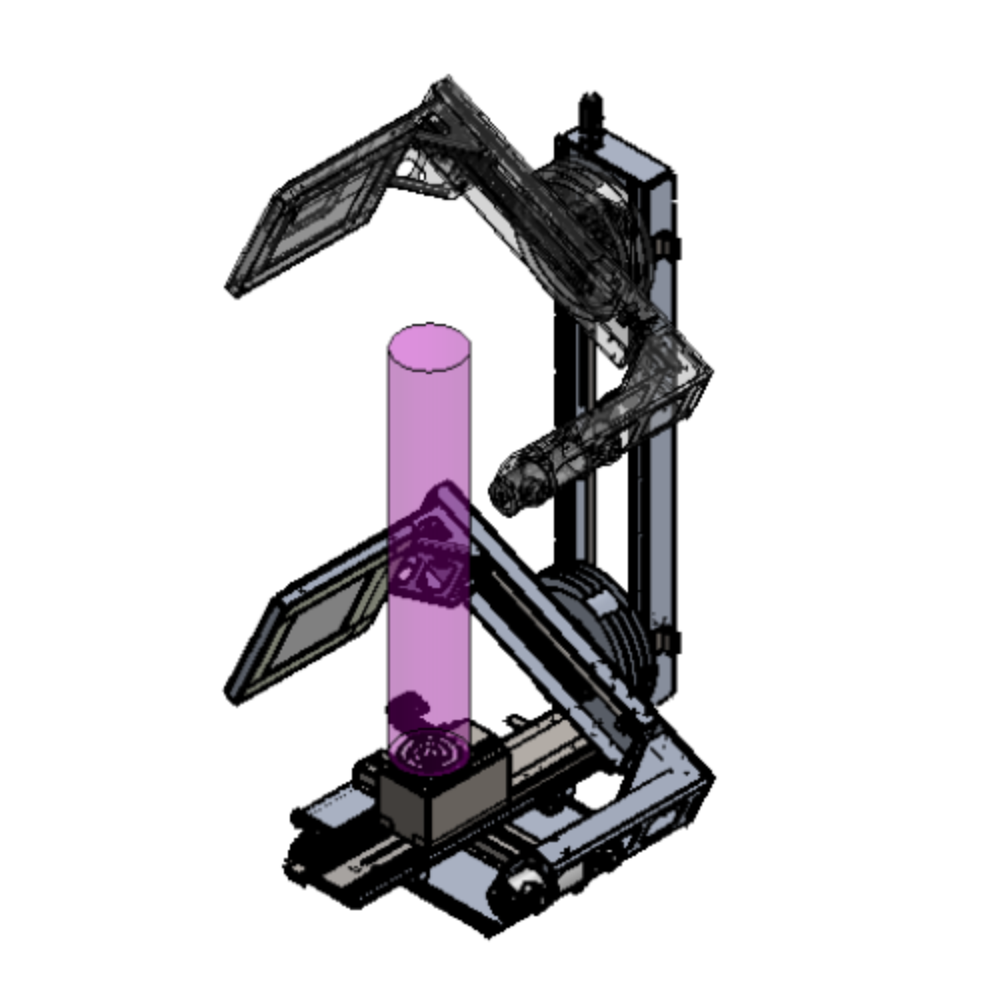

PXS-C-ARM system is designed to avoid part tilt and achieve the required angles by. This concept simplifies part mounting in many applications.
Details and parameters
X-Ray Source Nano-Focus, Micro-Focus, Mini-Focus, or Meso-Focus
X-Ray Energy [KV]
130 | 160 | 225 | 320 | 450
| Part Size | M | L | XL |
| Diameter | 685 mm | 812 mm | 1016 mm |
| Height | 914 mm | 1524 mm | 1828 mm |
Image gallery
Product showcase videos

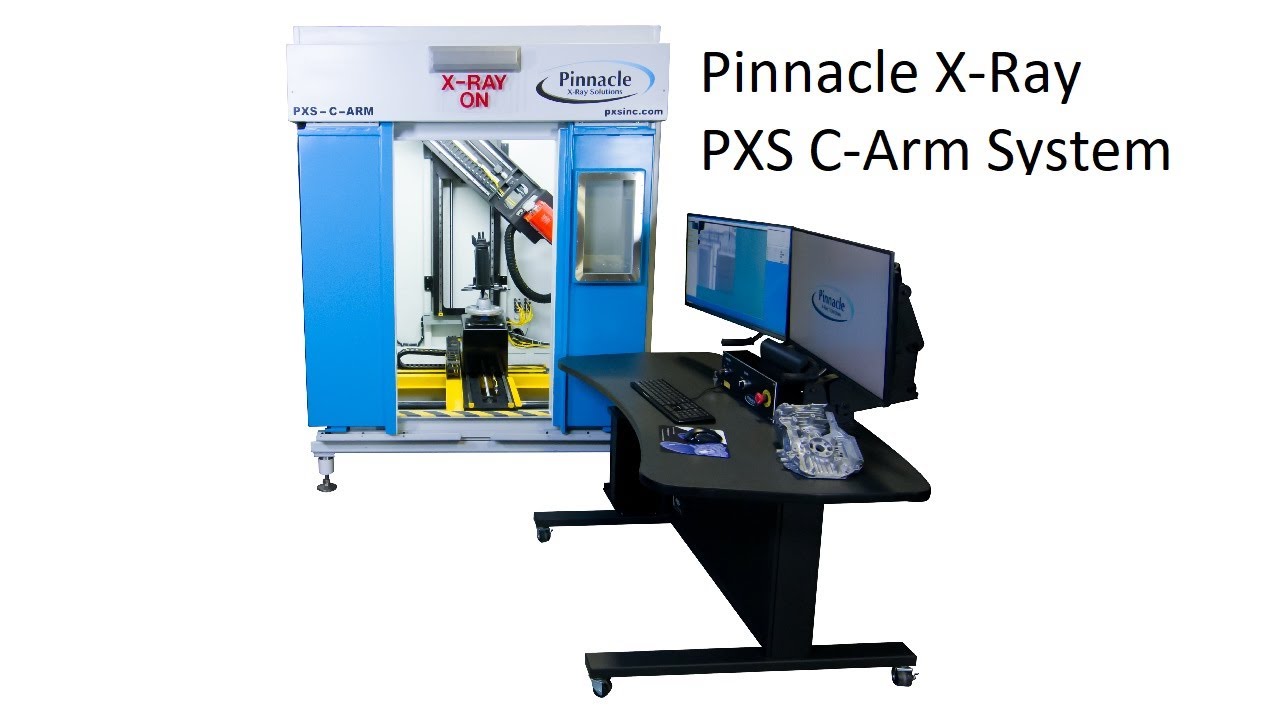

Pinnacle Standard PXS C-Arm System
Pinnacle's standard Benchmark system PXS C-ARM is available with any available X-ray detector and source. From 90KV up 500KV.

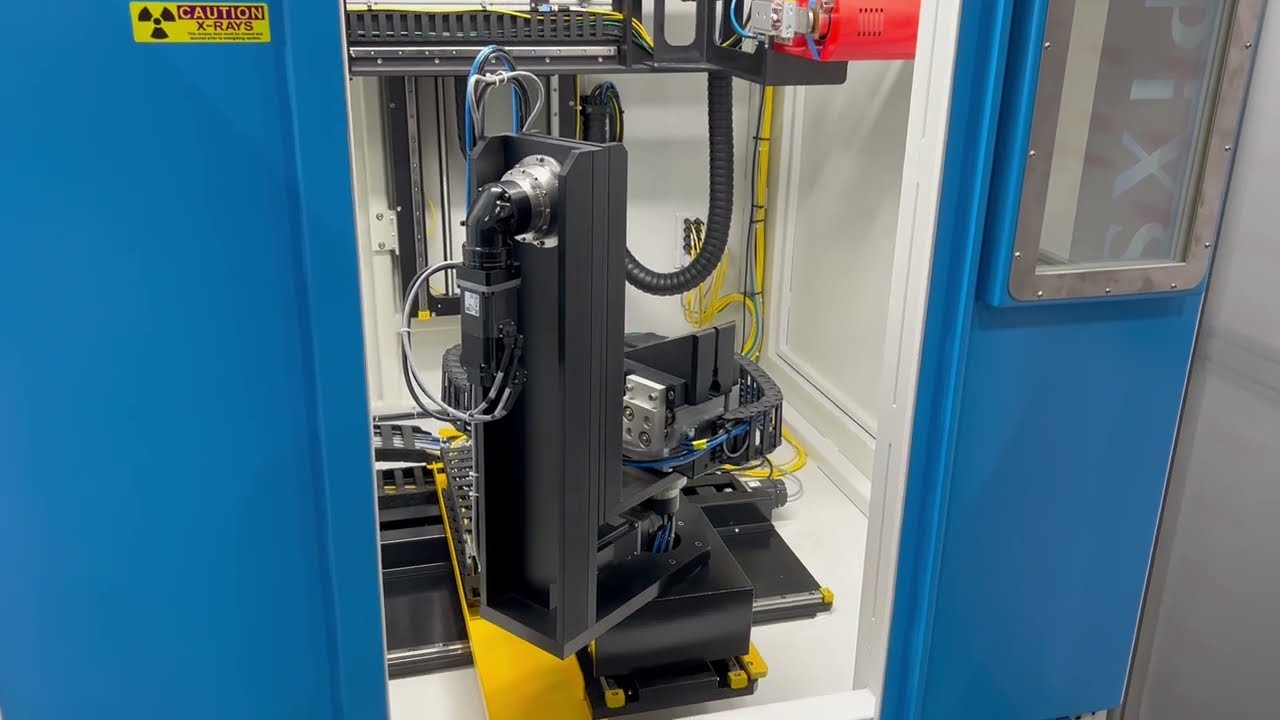

PXS-C-ARM Industrial X-Ray System
A great example for C-Arm X-Ray system that is customized for a specific application. The system was designed for 2D X-Ray inspection of aircraft fan blades.

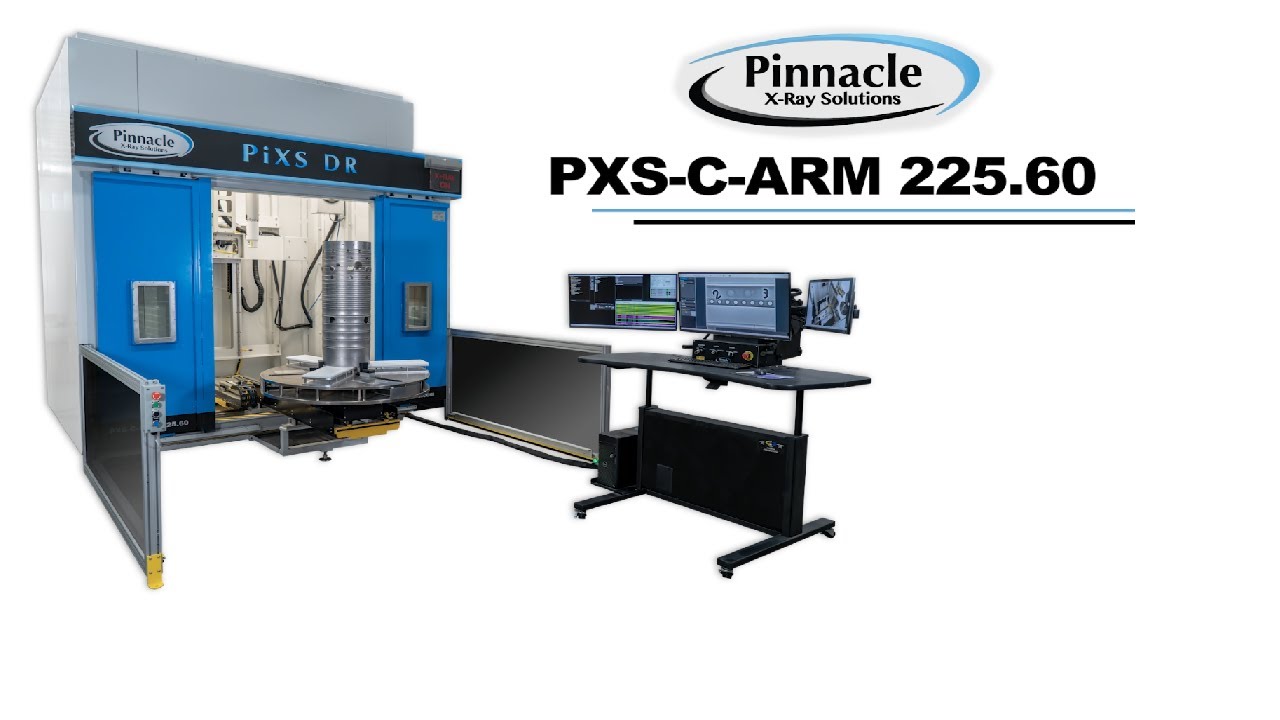

Pinnacle's Innovative Solution for Single Wall X-Ray Inspection
PXS-C-ARM with 90 degrees top-down tube configuration for single wall DR inspection

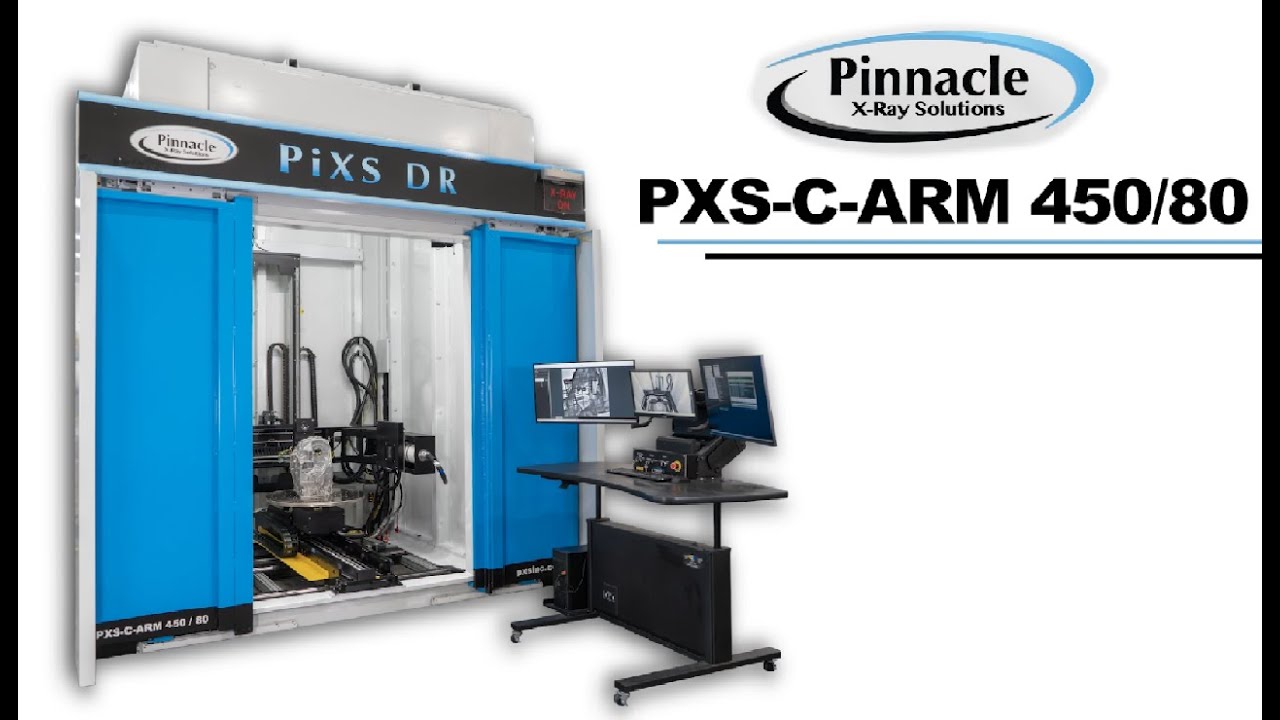

Pinnacle 450KV C-Arm X-Ray system
PXS-C-ARM with object tilt for DR tube inspection
