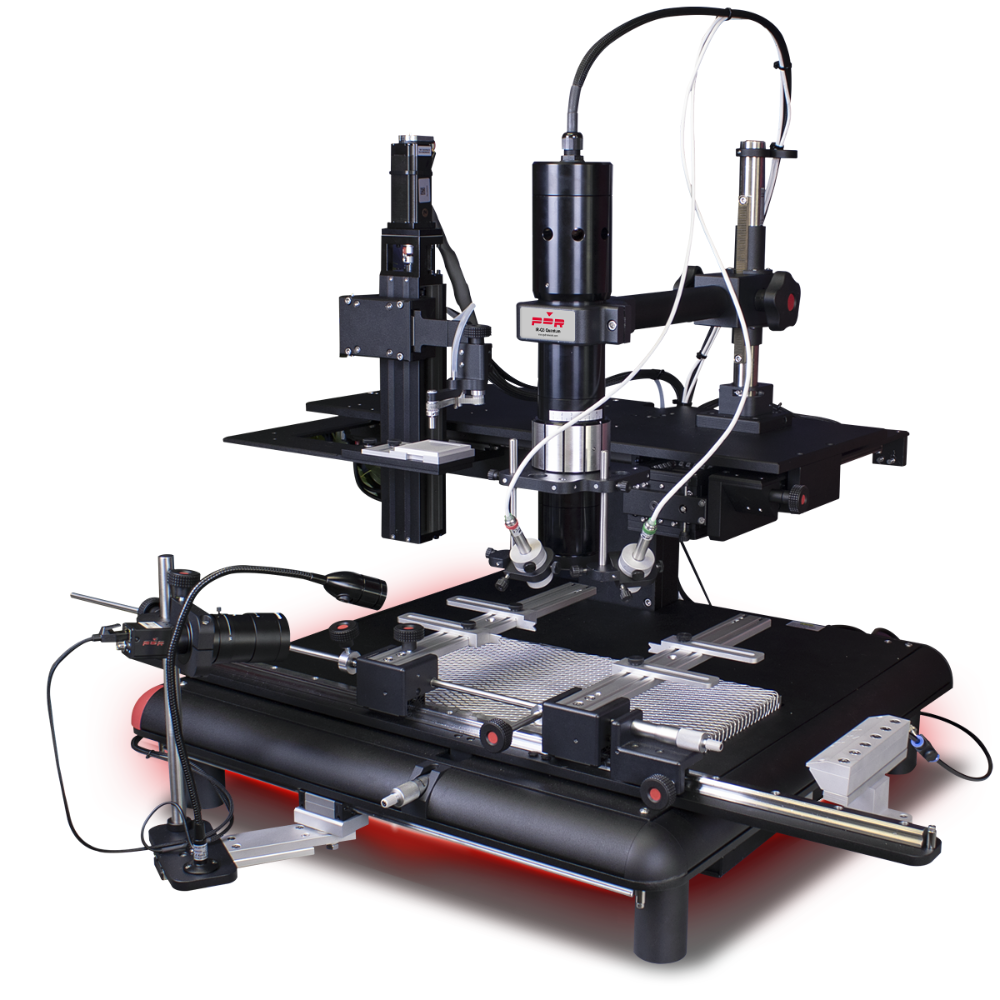

PDR IR-Q3
Semi-Automatic Assisted Rework
Introduction
Our rework stations feature a robust, modular design ideal for SMDs, BGAs, CSPs, flip chips, and even 0201 components. PDR’s proprietary Focused Shortwave IR Technology enables precise, nozzle-free heating—targeting only the defective component for fast setup and repeatable, high-quality repairs.
We offer a full range of solutions, from entry-level to advanced BGA rework systems, all lead-free compatible.
Now Introducing Automated Placement and Removal
Building on the core strengths of our systems, PDR has added automated component placement and removal to the Quantum Focused IR range starting with PDR IR-Q3. This advancement enhances productivity and precision, setting a new industry benchmark.
The Quantum range will be offered alongside our established models—PDR IR-E1, IR-E2, IR-E3, and IR-E6—continuing our mission to provide cutting-edge, efficient rework solutions that meet the highest industry standards.
Details
- Advanced Focused IR component heating
- Automatic Component Removal and Placement
- Quartz IR PCB preheating with up to 3 zones

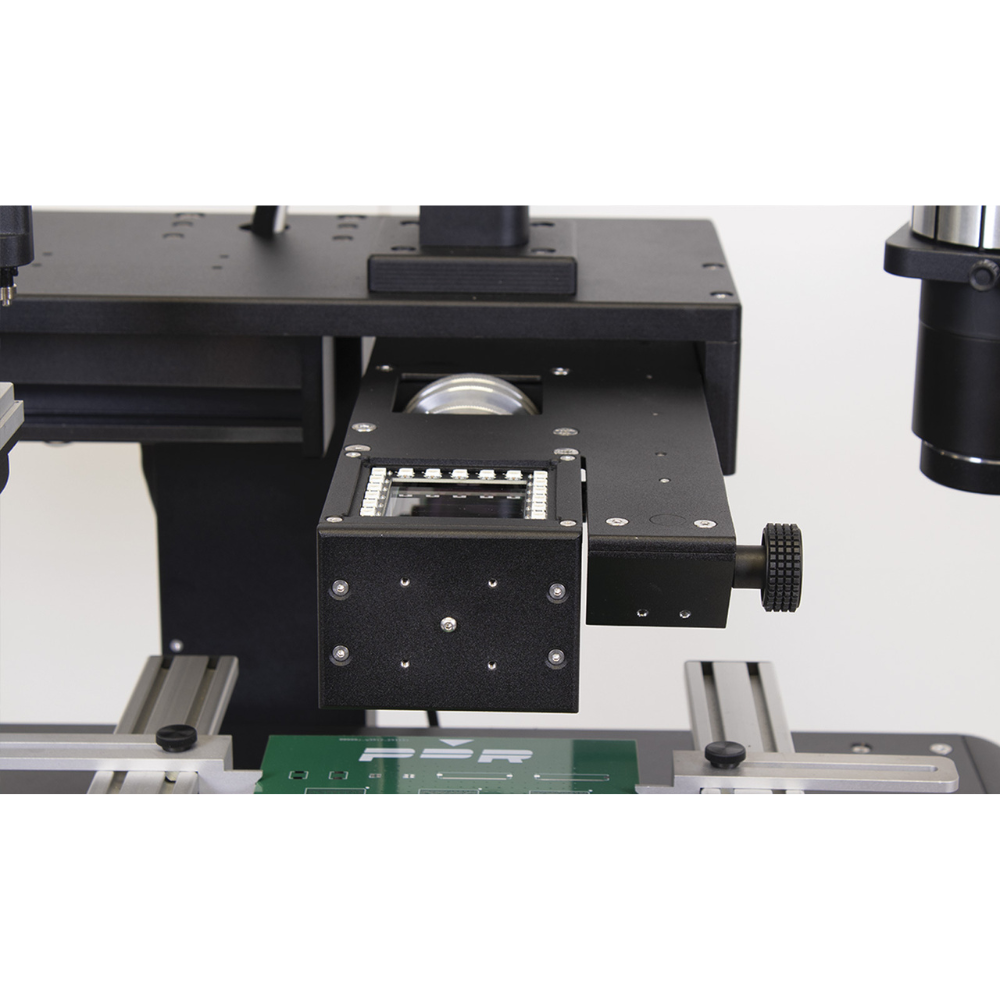

- 2” Split Beam prism system for simultaneous PCB/component viewing
- Precision Components Pick and Placement up to 5um

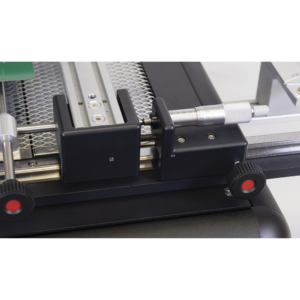

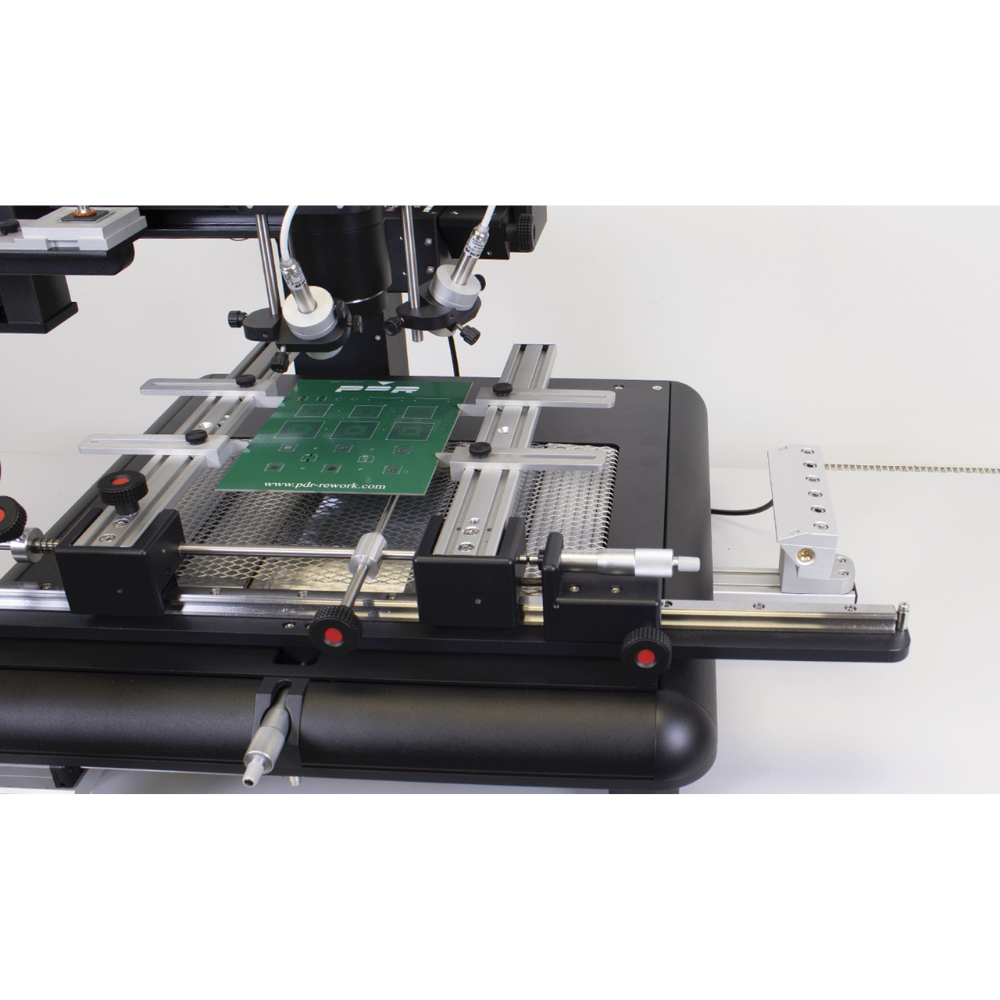

- Precision PCB handling
- Component Nest/Flux Application Facility
- Closed Loop Non-Contact Temperature Sensing
- Advanced Automatic Thermal Process Control
- Reflow Process Observation Camera
- PCB Forced Air Cooling
Product options
- Spares Kits
- AC02009 Consumables kit (lamp+socket, gel flux, roll 25mm black tape, vac cup, springs, O rings)
- AC02008 Consumables kit (lamp+socket, gel flux x 2, roll 25mm black tape, vac cup, springs, O rings, Lens No1, Cold Mirror)
- Solderpaste Print Part System
- PDRPP01 Print Part System
- PDRPP02 Print Part System Additional Stencil
- PDR Reball Kit
- PDRRB01 PDR BGA Reball Set (BGA foil & frame, paste foil & frame, hi-temp esd nest, squeegee blade)
- PDRB02 PDR BGA Reball Additional Component Set
- Other
- SP05029 Laser Alignment Tool
- SC020 Controller & Sensor Calibration Check Kit
- SP05017 PCB Sensor Contact Probe
- SP06008 Additional Board Support Asssembly
Parameters
- Bench Area: 1400mm (w) x 600mm (d)
- Weight: 75kg
- Voltage Frequency: 208-240 volts 50/60Hz, up to 3.5KW
- Top Heater Power: 150W Focused Infrared up to Ø70mm Spot
- PCB Preheater Power: 3250W Dark IR
- PCB Preheater Heating Area Size: 14.1 x 9.4”/360 x 240mm
- Number of PCB Preheater Zones: 3 Zones
- Spot Size Included: F700 (Ø 25-70mm), F200 (Ø 10-28mm)
- Component Placement: 2” Automatic Split Beam Prism Alignment
- Placement Accuracy: Up to 10 um
- Component Temperature Sensing: Non-Contact IR Sensor
- PCB Temperature Sensing: Non-Contact IR Sensor
- Max PCB Size: 12 x 18”/300 x 450mm
- Max Component Size: 2.1 x 2.1”/55 x 55mm
- Min Component Size: 2 x 2mm
- Reworkable Area: 10 x 15.9”/254 x 406mm
- Number of TC Channels: 4

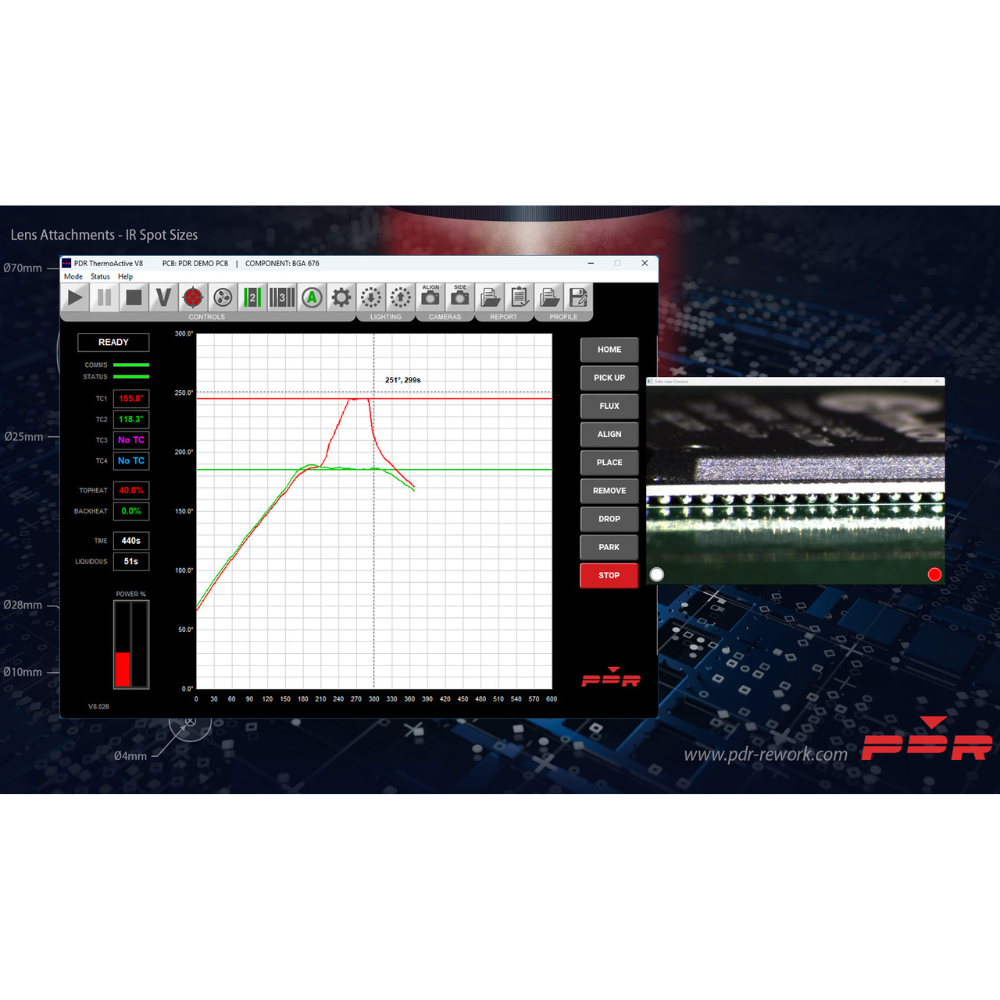

- Operating Software: PDR’s Thermoactive Software Suite suitable for Windows 10+
