Musashi MPP piston dispensing head
When the accuracy and consistency of the output quantity is critical
Introduction
In many applications, the accuracy and consistency of the dispensed amount is critical. For such applications, Musashi MPP piston dispensing heads are an excellent solution. Thanks to their volume displacement principle, they always provide a stable dispensed volume, regardless of temperature, viscosity or material pressure, and thanks to their wear-resistant design, they require little maintenance.
The MPP-1, a smaller microdispenser model, can dispense up to tenths of microlitres, while the larger MPP-35can be used up to 7 ml. MPP heads can be used to dispense highly filled abrasives and heat-conducting pastes with high precision without head wear and frequent replacement of parts.
Details
- Piston-operated, volume displacement principle for a constant output volume at all times
- Constant output independent of temperature, viscosity and pressure
- Abrasion resistant design also for abrasive materials
- Can be used for thermal paste, potting, solder paste, glues
- Suitable for a wide range of viscosities
- MPP-1 from 0.1 microlitre dispensing volume
- MPP-3 larger version from 5 microlitres to 7 millilitres
- One and two component designs available
- Can be integrated into custom-built machines, robotic arms or are available Musashi with table and suspended axis systems furthermore also in our turnkey production cells
- Can be connected to a cartridge, pressure tank or pail feeding unit
Image gallery
Product showcase videos

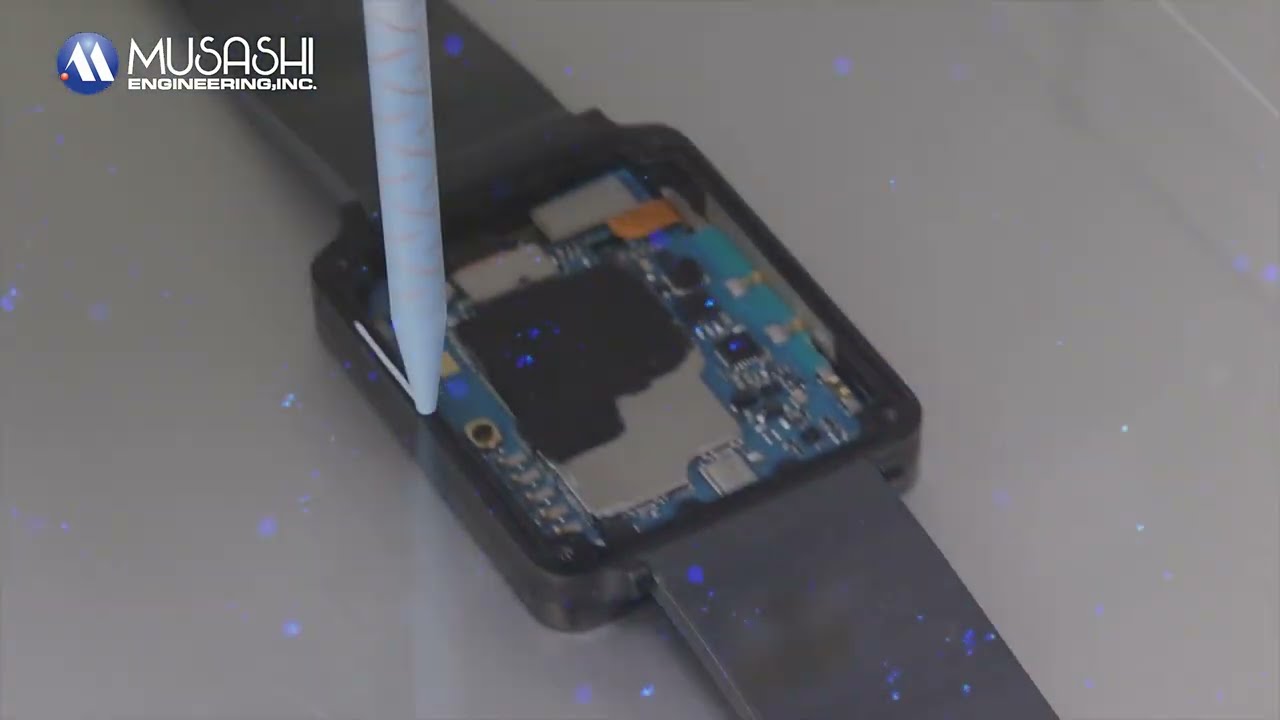

MPP-1 dispensing low viscosity fluids
Highly flowable liquids can be also dispensed with ultra-high accuracy!
MPP-3 thermal paste dosing
Dosing of one and two component thermal conductive materials in smaller quantities than ever before.
