MEG Vapour-phase solvent cleaning systems
Serie Solvente – Advanced Vapor Degreasing Technology
Introduction
- Serie Solvente systems operate with next-generation, low-boiling-point, non-flammable solvents, delivering fast and highly effective degreasing for a wide range of industrial components. Continuous solvent distillation and regeneration ensure exceptionally low operating costs while minimizing solvent consumption.

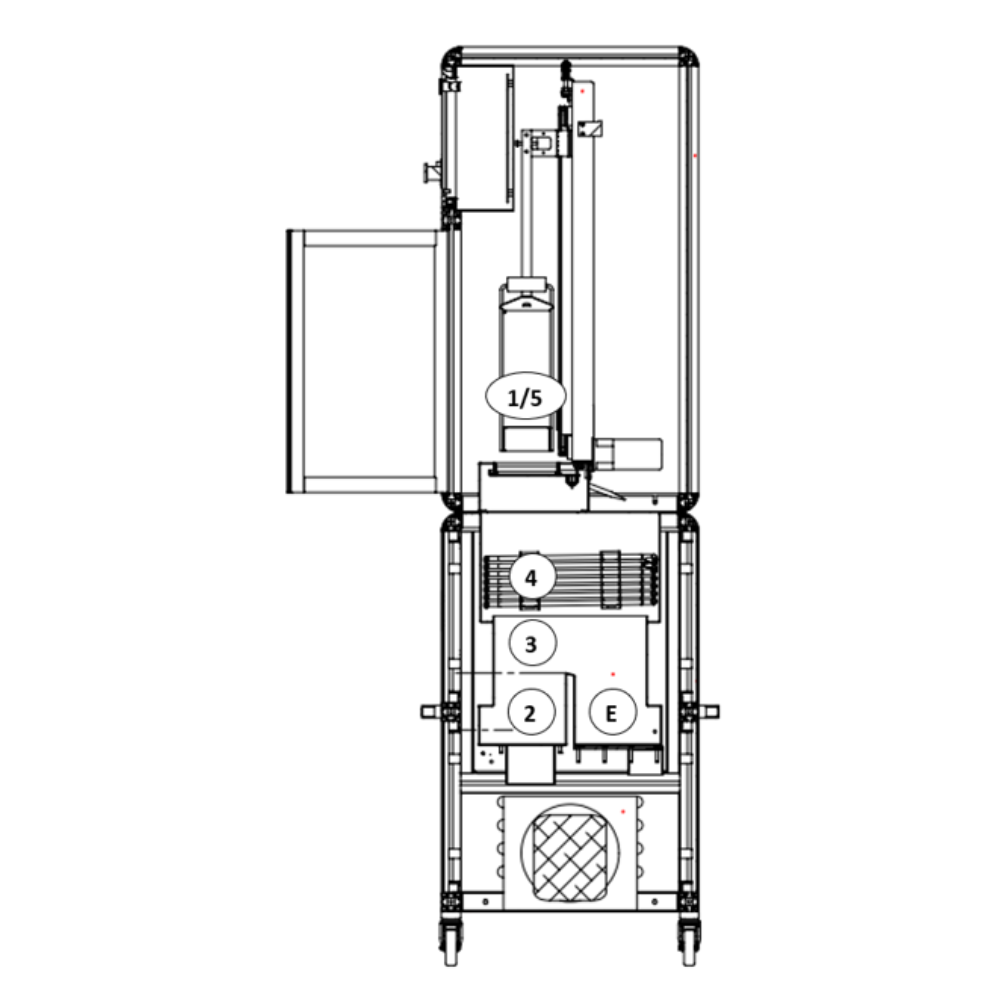

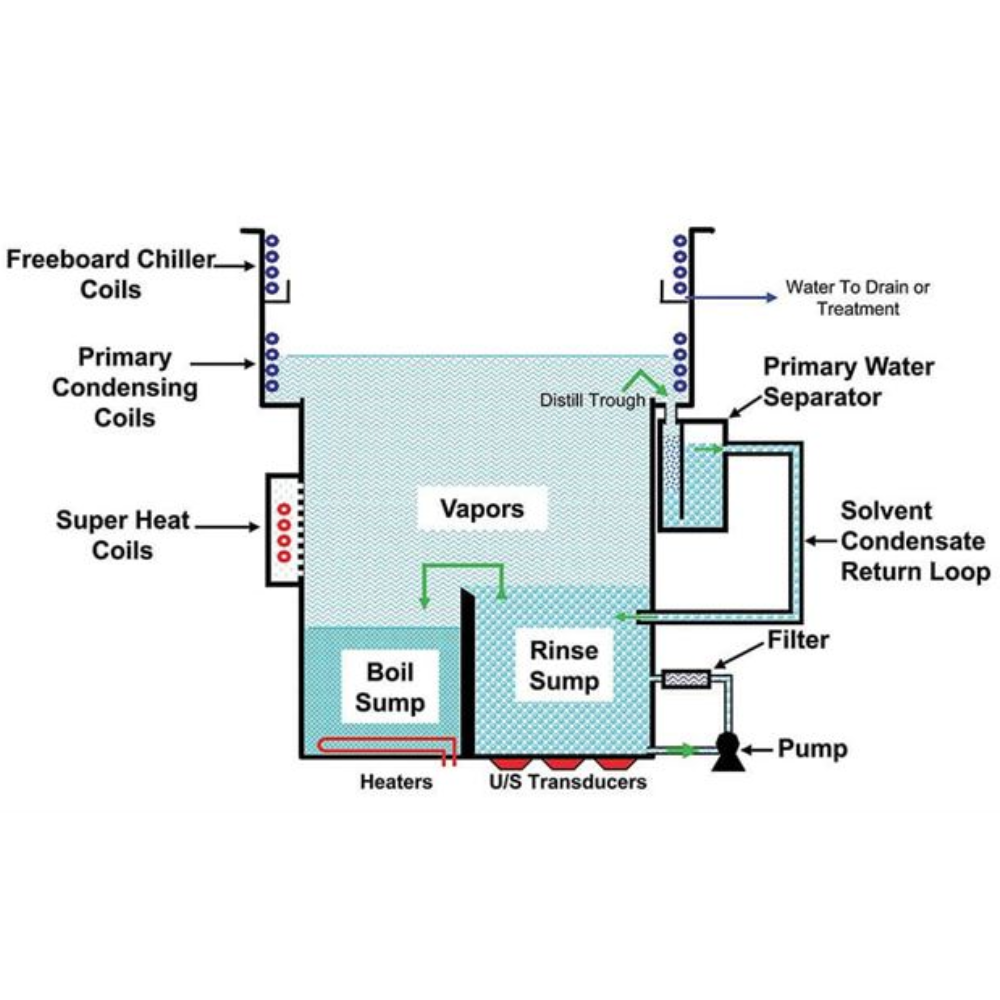

- The system utilizes vapor degreasing technology, in which heated solvent vapor condenses on the cooler surface of the component, dissolves contaminants, and subsequently evaporates completely without leaving residues. Key benefits include outstanding cleaning performance, rapid drying, a water-free process, and the virtual elimination of oxidation and corrosion risks.

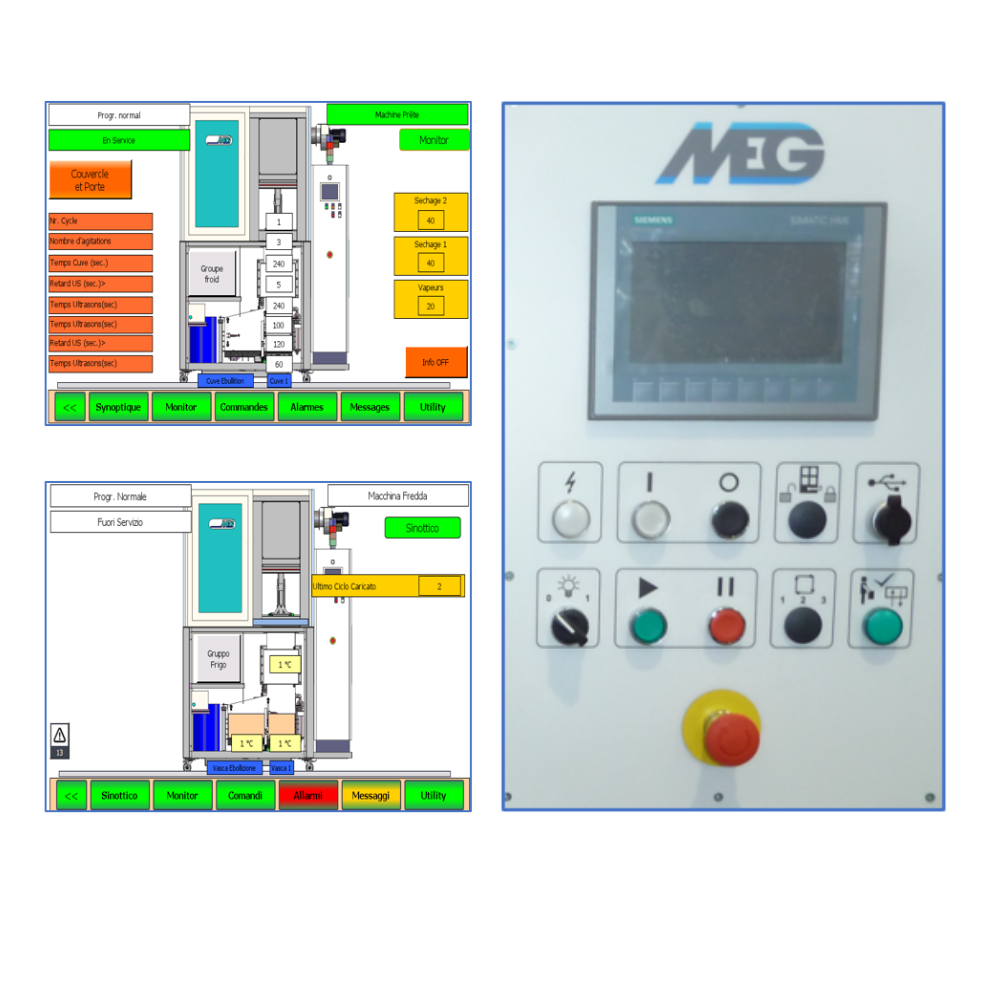

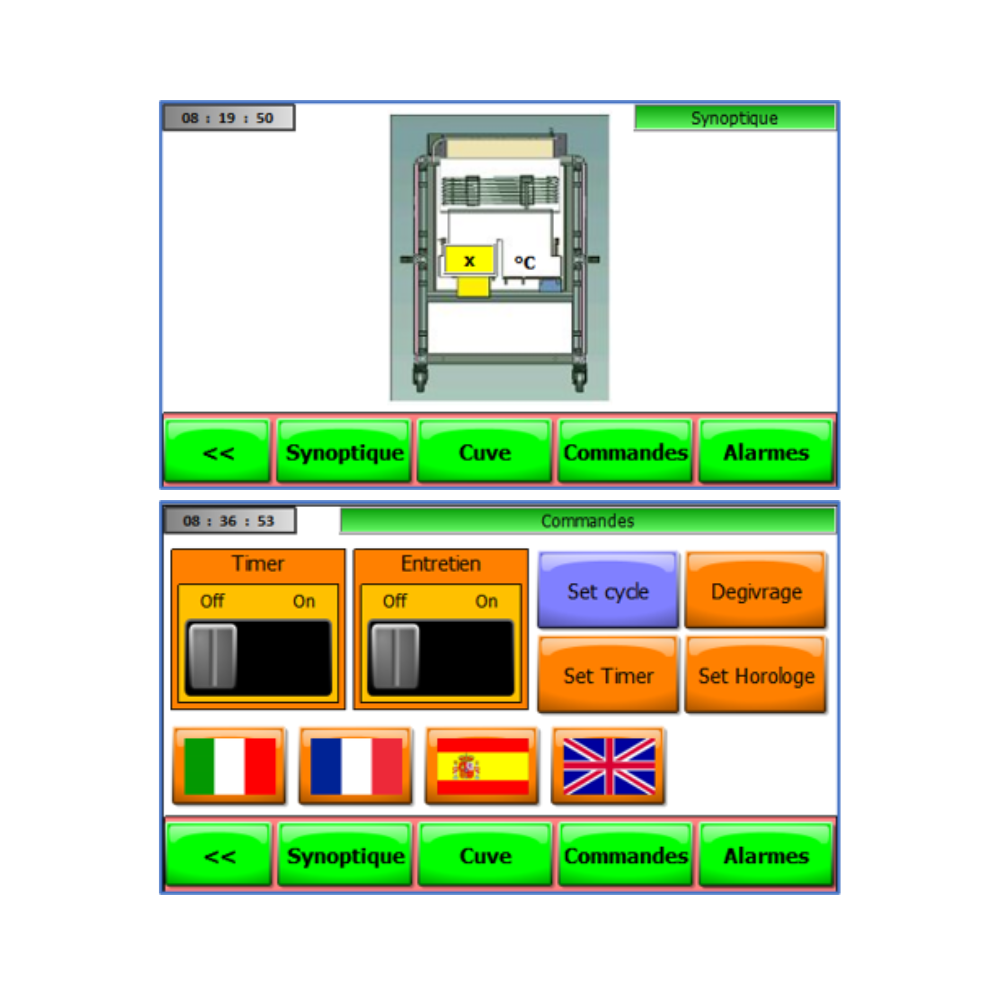

- Thanks to the intuitive touchscreen control interface, the entire cleaning process can be easily programmed and optimized. Operators can freely adjust and save cleaning cycles, movement speeds, ultrasonic parameters, temperatures, and other process settings, allowing the equipment to be readily adapted to a variety of manufacturing applications.
- MEG vapor degreasing systems are fully compatible with and deliver excellent performance when used with MicroCare cleaning fluids, providing a reliable and highly efficient cleaning solution for demanding industrial environments.
Details
Key Features
- Vapor degreasing technology for outstanding cleaning performance and consistent results.
- Fast, spot-free drying without the need for a separate drying station.
- Water-free cleaning process, minimizing the risk of oxidation and corrosion.
- Low solvent consumption thanks to continuous solvent regeneration and recycling.
- Low-temperature operation, ideal for heat-sensitive components and materials.
- Highly automated and programmable system for optimized process control.

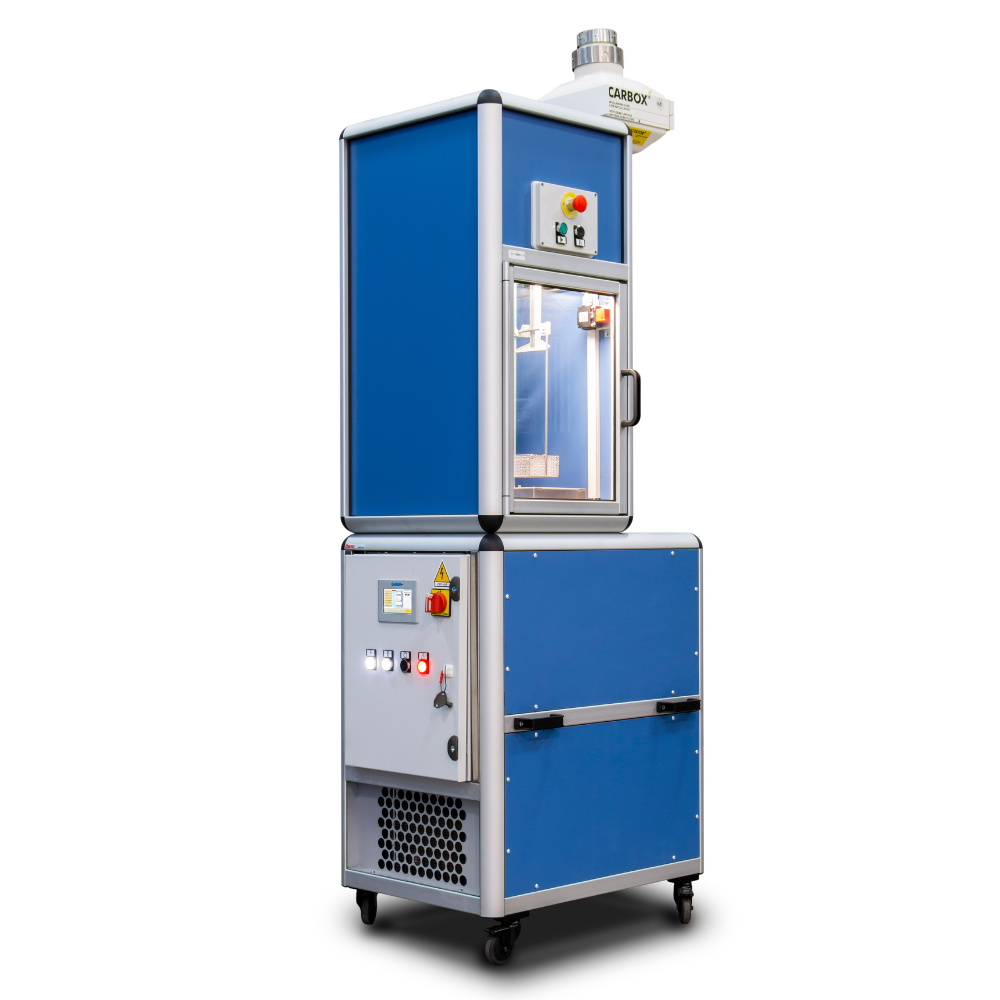

- Compact footprint requiring minimal installation space.

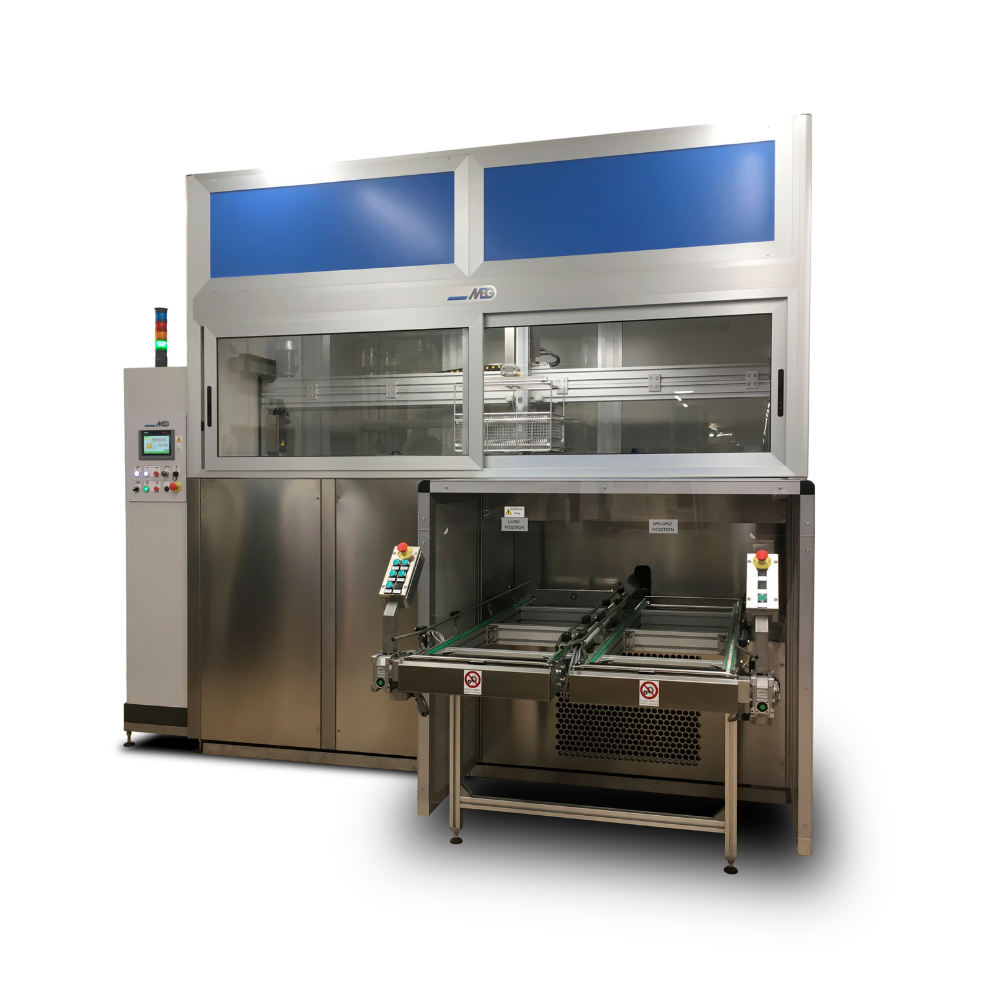

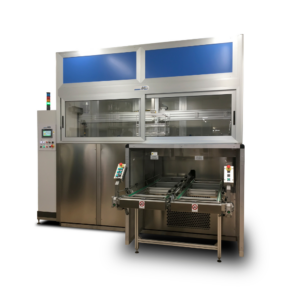

- Available with manual or automatic basket handling options.
- Ready for remote monitoring and Industry 4.0 integration.
- Fully compatible with MicroCare™ cleaning fluids and solvents.
Main Applications
- Precision engineering and manufacturing
- Automotive component production
- Cleaning of electronic and electromechanical assemblies
- Aerospace components and parts
- Medical device manufacturing
- Metalworking and machining facilities
- Industrial processes with stringent cleanliness requirements
Options
Available Options
- Manual or fully automated basket handling to suit different production requirements.

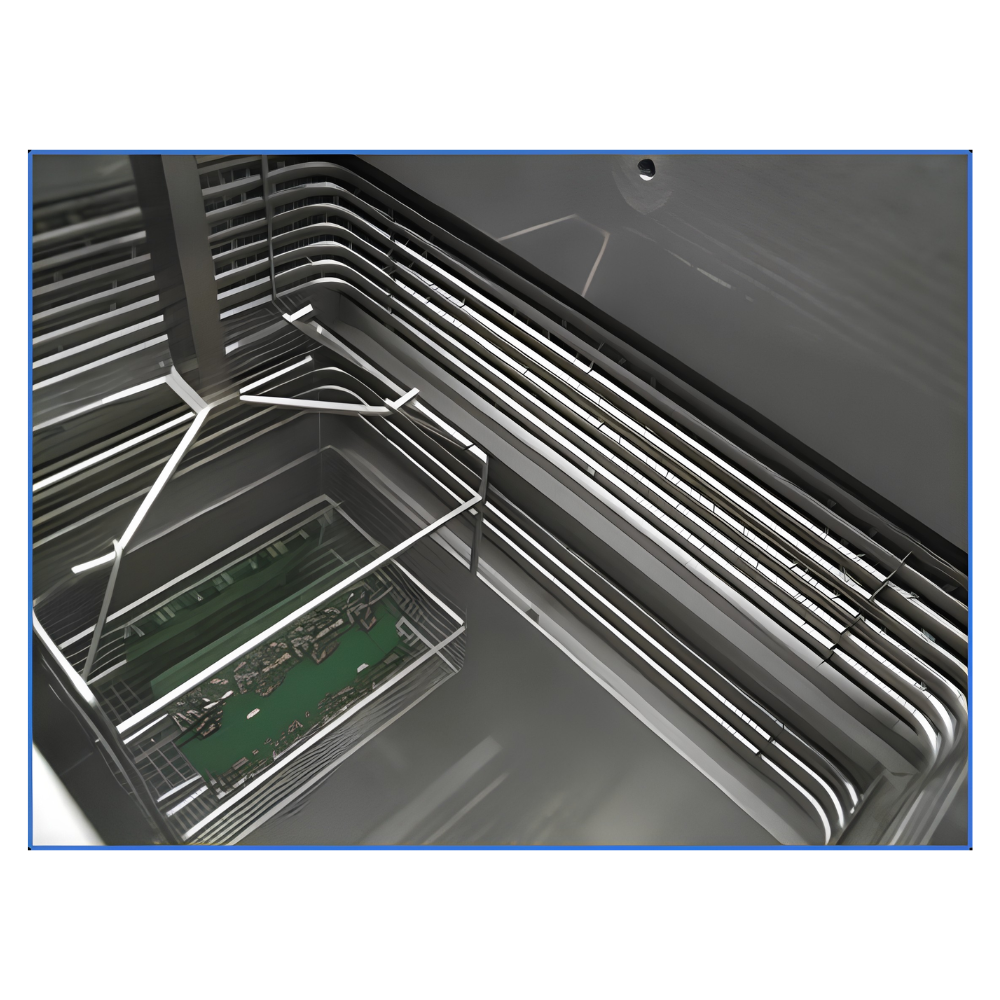

- Ultrasonic immersion cleaning option for enhanced removal of contaminants from complex geometries and hard-to-reach surfaces.
- Integrated solvent regeneration system to reduce solvent consumption and operating costs.
- Supports part weights from 2 to 20 kg.

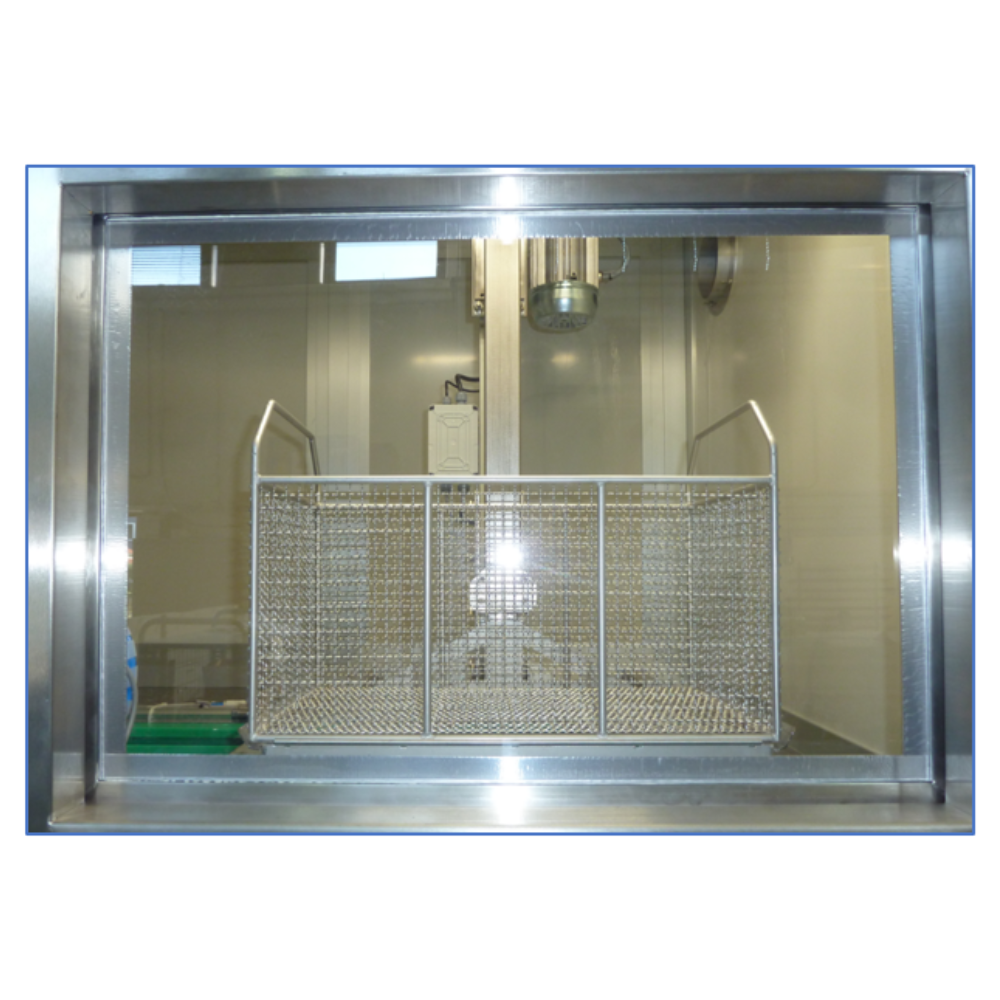

- Available basket sizes ranging from 100 × 100 × 50 mm up to 590 × 370 × 300 mm.
- Custom-designed cleaning baskets available for specialized applications and component geometries.
- Hybrid multi-tank configurations available, combining vapor degreasing with water-based cleaning processes for maximum process flexibility and cleanliness performance.
Parameters
- Basket size (L × W× H):
- 200 × 150 × 100 mm
- 400 × 200 × 200 mm
- 620 × 180 × 200 mm
- Recommended part weight: 5–20 kg
- Custom industrial configurations available to meet specific process requirements
- Higher load capacities available upon request
Image gallery
Product showcase videos

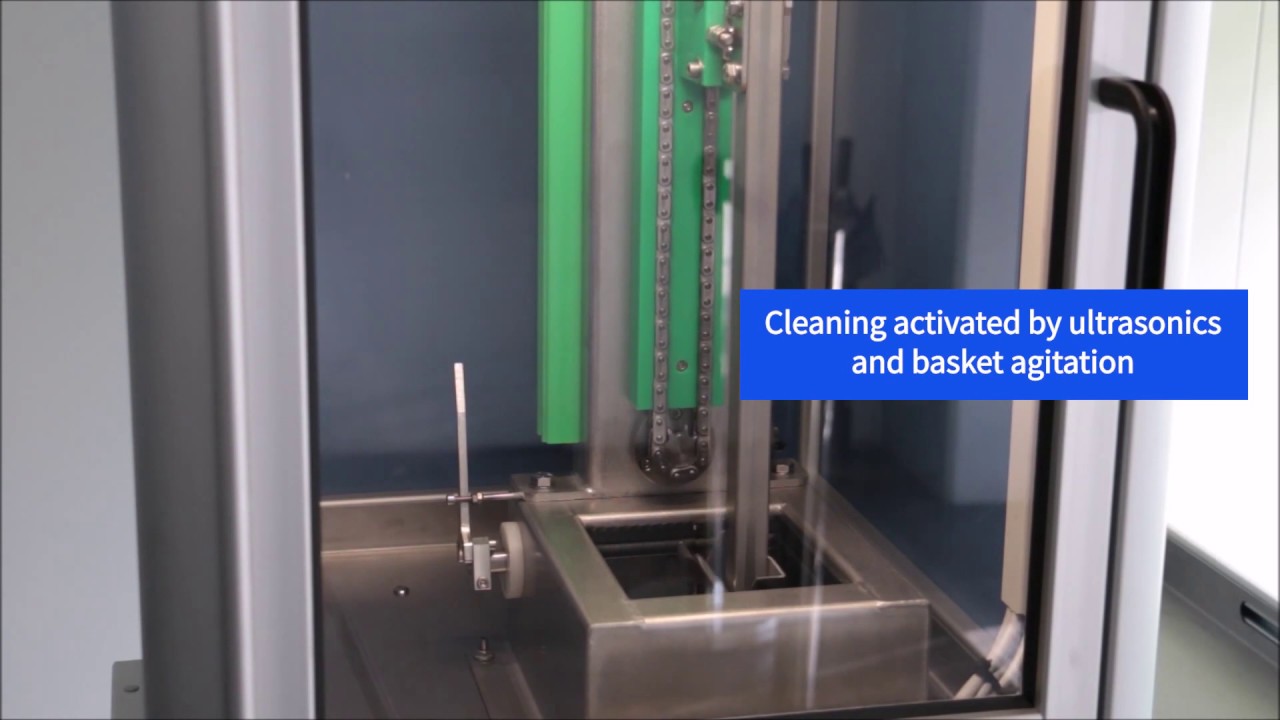

Compact solvent cleaning machine
