MEG Manual ultrasonic cleaning machines

Efficient cleaning of small production batches

Introduction

The UCT series offers professional ultrasonic cleaning tanks designed for the efficient cleaning of small production batches, maintenance tools, and precision components using water-based cleaning solutions. The systems are available in a range of sizes and power configurations to meet diverse industrial requirements. The microprocessor-controlled system automatically optimizes ultrasonic energy output to ensure maximum cleaning performance. Power level, cleaning time, and bath temperature can be digitally adjusted, providing simple and precise operation. Ultrasonic cavitation effectively removes grease, oils, dust, abrasive residues, and other contaminants, even from hard-to-reach holes, cavities, and intricate surfaces. These machines are ideally suited for applications in precision engineering, the automotive industry, jewelry and watch manufacturing, optics, electronics, filter cleaning, and dental laboratories. Models equipped with an integrated oil separator enable efficient oil removal, extending bath life and reducing operating costs. The KOMBI series is also available, featuring multiple tanks and offering washing, rinsing, and drying functions within a single system. Manufactured in Italy from high-quality stainless steel and premium components, all systems are CE-certified and built to the highest standards of quality and reliability. ZESTRON cleaning chemistries are fully compatible with MEG ultrasonic cleaning systems.

Details

Key Features:

  • Ultrasonic cleaning technology
  • Available tank capacities from 4 liters up to 180 liters
  • Basket sizes ranging from 200 × 110 × 50 mm to 600 × 600 × 500 mm
  • Ultrasonic generators optimized for each tank size

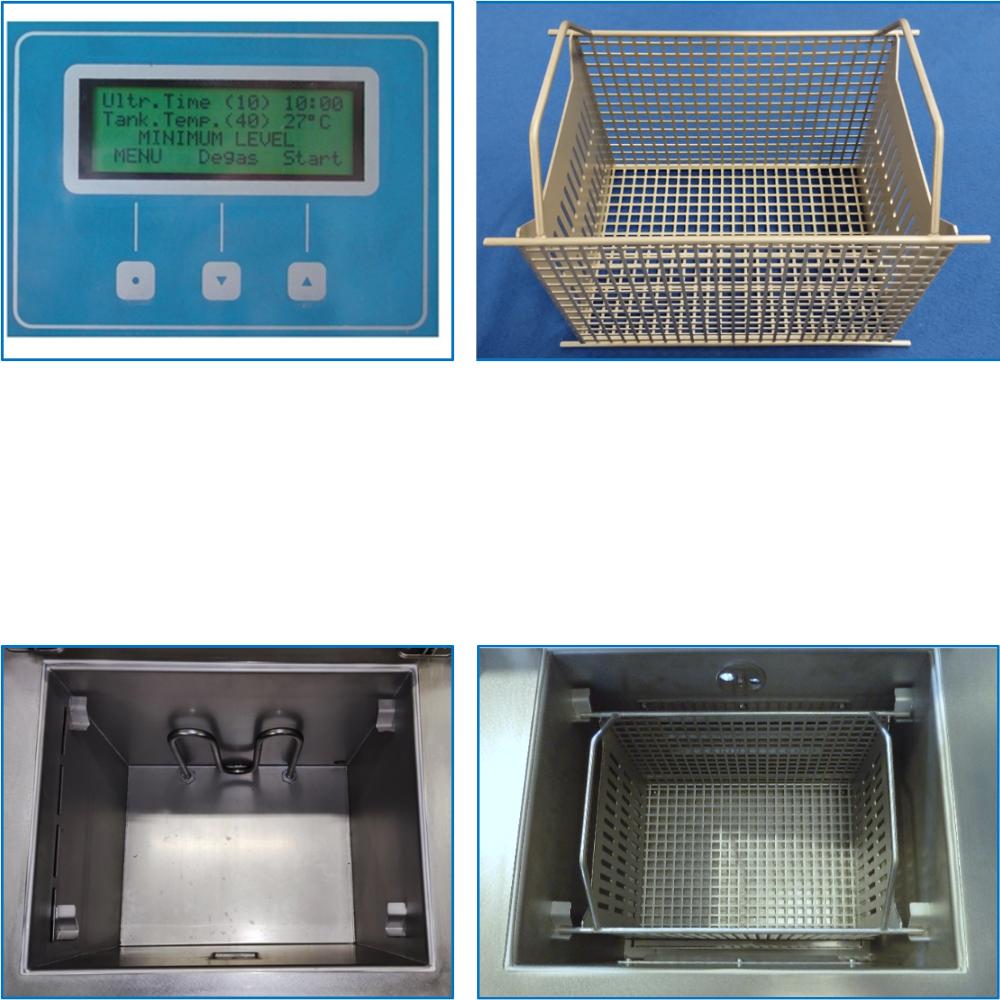

  • User-friendly LCD control interface
  • Heating capability up to 80°C
  • Programmable timer-controlled cleaning cycles

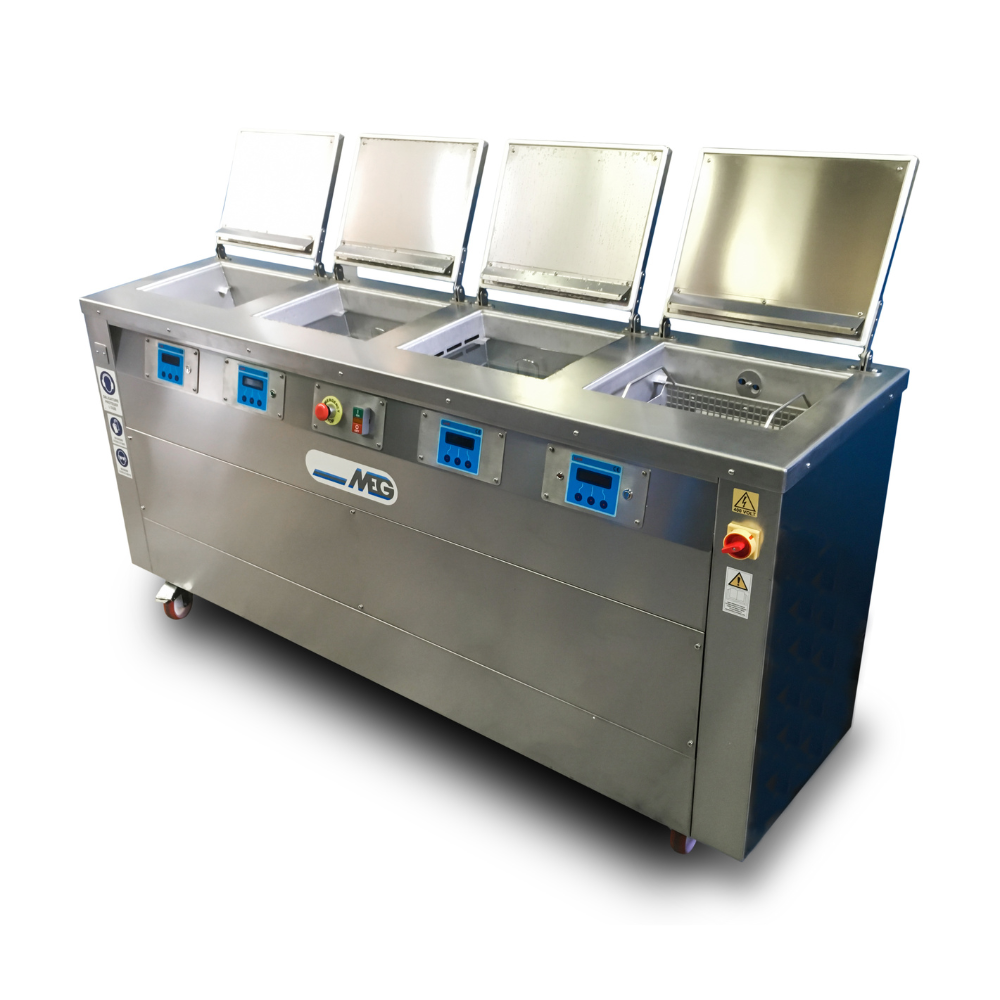

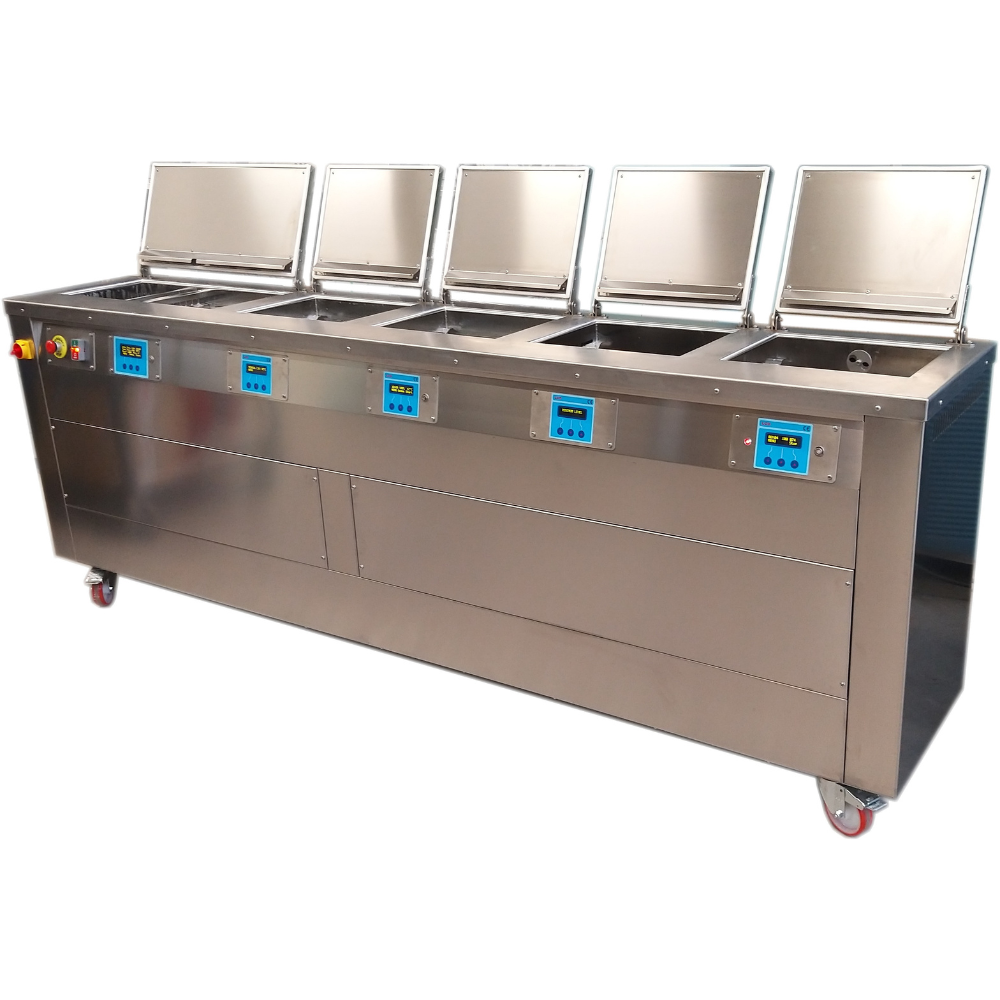

  • KOMBI models available with multiple tanks for integrated washing, rinsing, and drying processes
  • Optional oil separation system
  • Compatible with ZESTRON cleaning chemistries

Main applications:

  • Precision engineering and manufacturing
  • Cleaning of automotive components
  • Cleaning of production tooling, including soldering and coating fixtures
  • Maintenance of machine components such as reflow oven heat exchangers and dispensing nozzles
  • Dental and medical technology laboratories
  • Jewelry and watchmaking industries
  • Cleaning of electronic components and filters

Options

  • Custom tank dimensions available
  • Custom-designed cleaning baskets available

Parameters

ModellBasket size (mm)Capacity (liter)
UCT 4 2 LCD200 × 110 × 504
UCT 6 4 LCD260 × 200 × 506
UCT 9 4 LCD260 × 200 × 509
UCT 12 4 LCD260 × 200 × 5012
UCT 18 6 LCD300 × 265 × 9018
UCT 20 8 LCD450 × 265 × 9020
UCT 28 8 LCD450 × 265 × 9028
UCT 40 9 LCD335 × 220 × 28540
UCT 50 10 LCD540 × 240 × 18050
UCT 60 12 LCD360 × 340 × 28060
UCT 90 15 LCD540 × 320 × 25090
UCT 110 18 LCD540 × 320 × 320110
UCT 12 6 D LCD180 × 240 × 15012
UCT 30 8 D LCD365 × 185 × 26030
UCT 90 16 D LCD550 × 350 × 25090
UCT 160 30 D LCD600 × 400 × 400160
