Pillarhouse Fusion 4
New inline selective soldering platform
Introduction

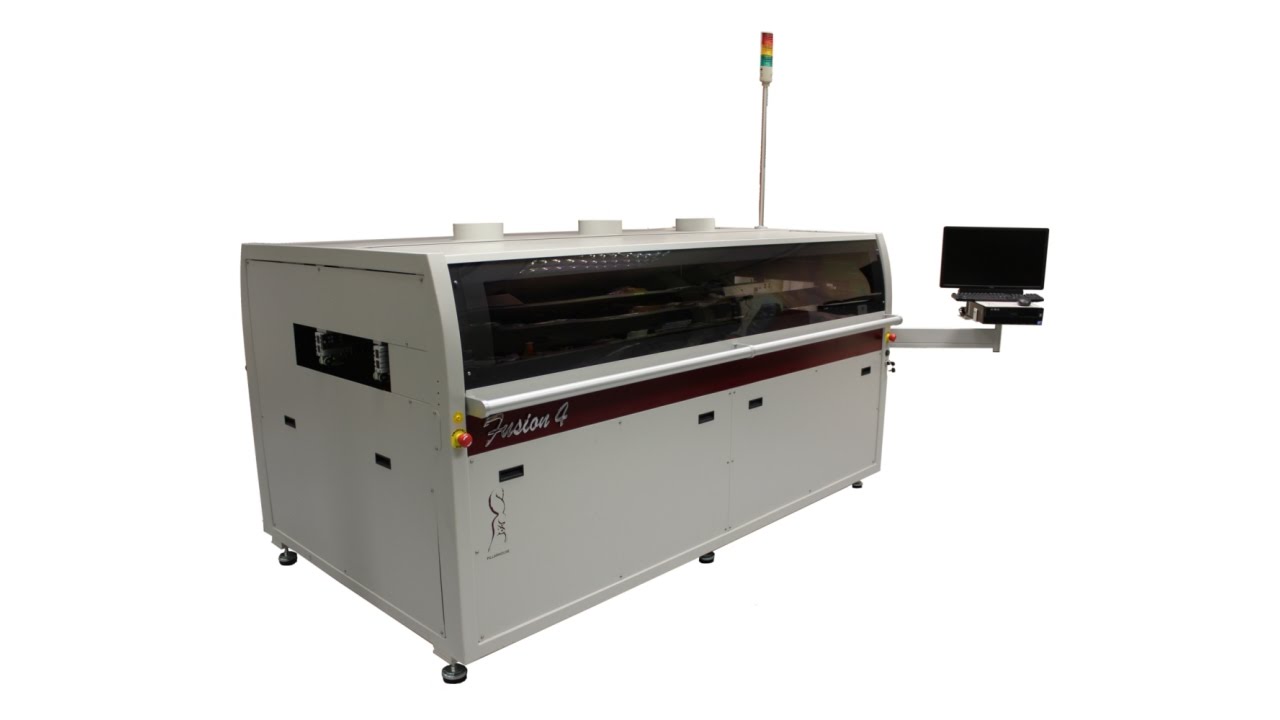

The Pillarhouse Fusion 4 is the Pillarhouse’s new generation inline selective soldering platform. It combines low cycle times with the flexibility you are used to, compact machine length and a competitive market price.
To achieve the shortest possible cycle times, up to four sub-process stations can be configured as a fluxer, preheater and two consecutive solder baths. These can even be of double bath design.
Details
- Various configurations, from 2 to 4 stations
- In-Line Motor Driven Auto Width Adjust Throughfeed Conveyor
- Side clamping
- Encoder servomotors on X, Y and Z axes
- 1,5 mm – 25 mm solder nozzle
- Dropjet fluxer
- Top and bottom IR preheater
- Closed-Loop Pyrometer Temperature Control
- Auto Fiducial Recognition & Correction System
- Solder Wave Height Measurement System
- Auto Motorised Wire Solder Feeder & Level Detect
Product Options
- Ultrasonic Fluxing
- Top Side Instant IR Pre-Heat
- Closed-Loop Pyrometer Temperature Control
- Large Solder Bath for Dedicated Single Dip Applications
- Independent Z-axis double-bath design
- Laser PCB Warp Correction
- Heated trollies for rapid solder bath changeover
- Auto Motorised Wire Solder Feeder with built-in solder reel coding
- Dual lane design
- PillarGen Nitrogen Generator
